Teledyne LeCroy

Global State and Sequence States

78





Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

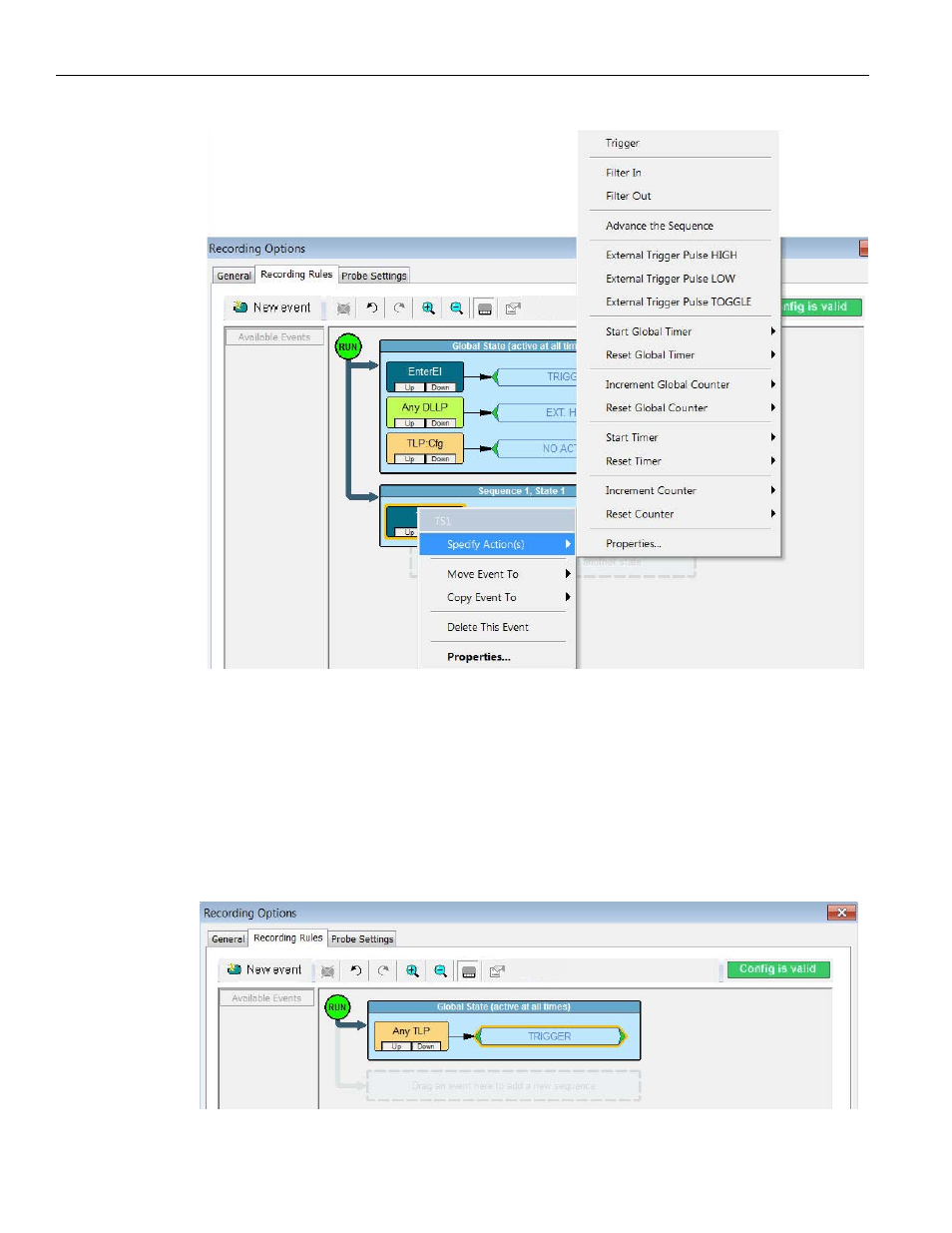

Figure 5.25: Global State Menu

5.18.1

Global State

The Global State is active all the time. The Summit T3‐16 Analyzer tracks all the Events
and Actions defined in the Global State throughout the recording. In the Global State the
Link State, Ordered Set (except TS1 and TS2), Errors, Counter and the Timer use Basic
Resources while TLP, DLLP, TS1 and TS2 use Packet Match Resources. The Global State has
two Timers and two Counters.

Figure 5.26: Global State
