PCIe SSD Base Address Mapping

226





Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

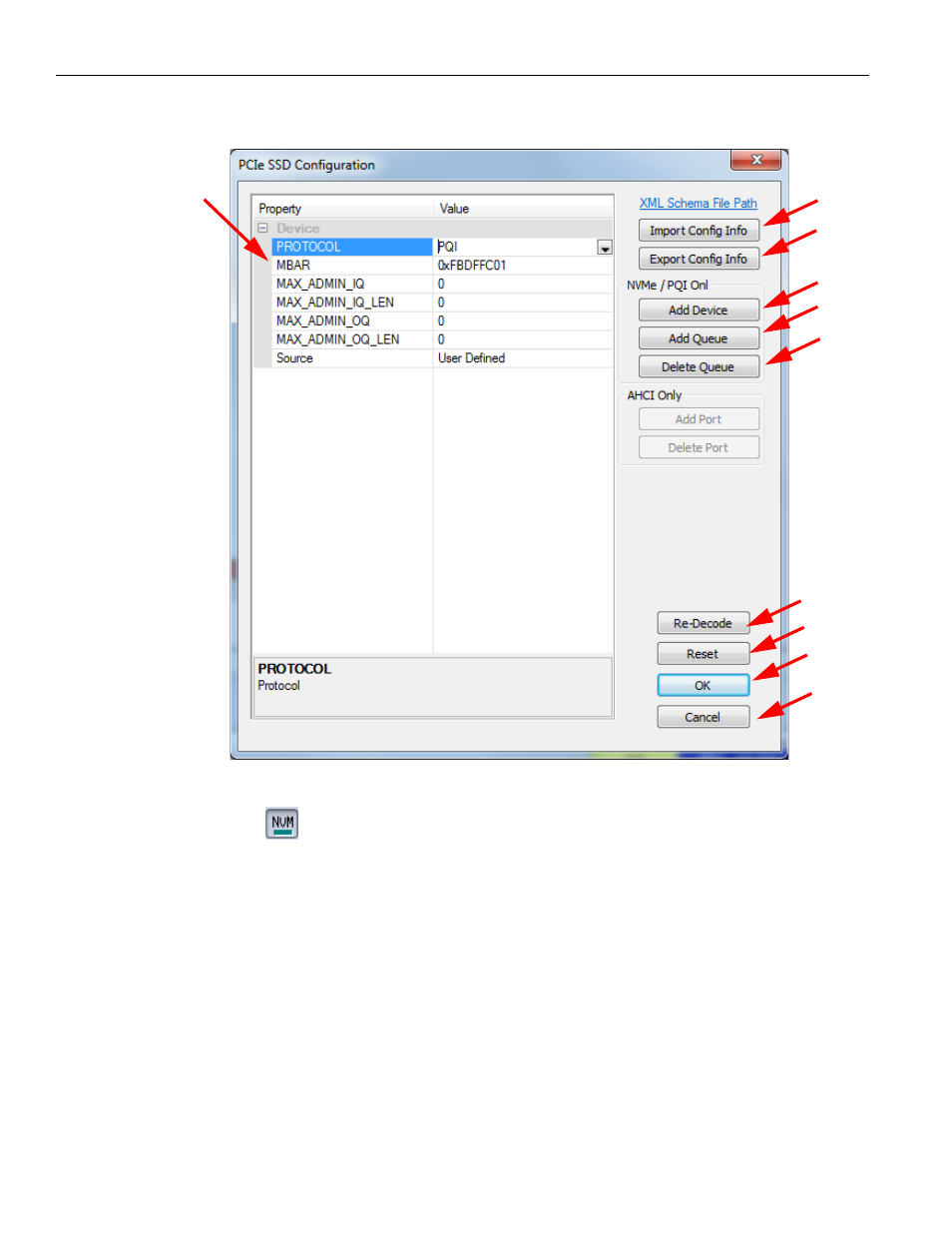

Figure 10.36: PCIe SSD Configuration Dialog Pre-decoding

Click the

 button to decode the trace and select Tools > PCIe SSD Base Address

Mapping (see

Figure 10.37 on page 227

).
