Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual 189
Bus Utilization Teledyne LeCroy
10.4.1 Bus Utilization Pop-up Menu
You can reformat the display by right‐clicking a graph and making a selection from the Bus
Utilization pop‐up menu.

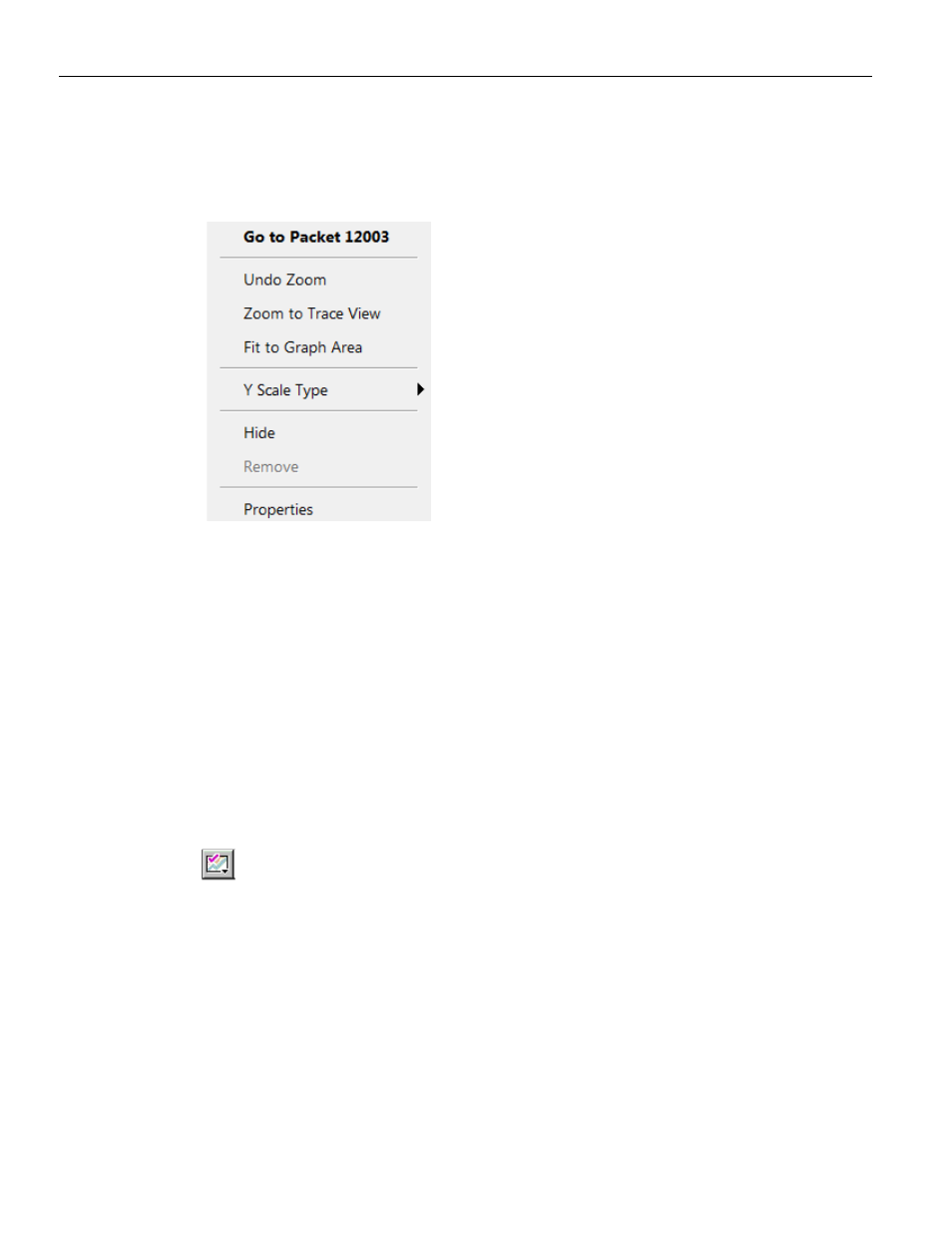

Figure 10.13: Bus Utilization Menu
Go to Packet #: Relocates the CATC Trace to the selected packet number.
Undo Zoom: If you have zoomed in, this command undoes the zoom.
Zoom to Trace View: Zooms in on graph to show traffic currently displayed in the
CATC Trace screen.
Fit to Graph Area: Redisplays graph so that the entire CATC Trace fits inside graph area.
Y Scale Type:
 Linear: Converts display to linear format
 Logarithmic: Converts display to logarithmic format
Hide: Hides the selected graph
Remove: Allows you to add any graph that you created via the Graph areas
command.
Properties: Opens a dialog with options for changing the Title, Type, Appearance, Color
and Properties of the graphs (see
Figure 10.14 on page 190 ).
