Link Configuration

174





Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

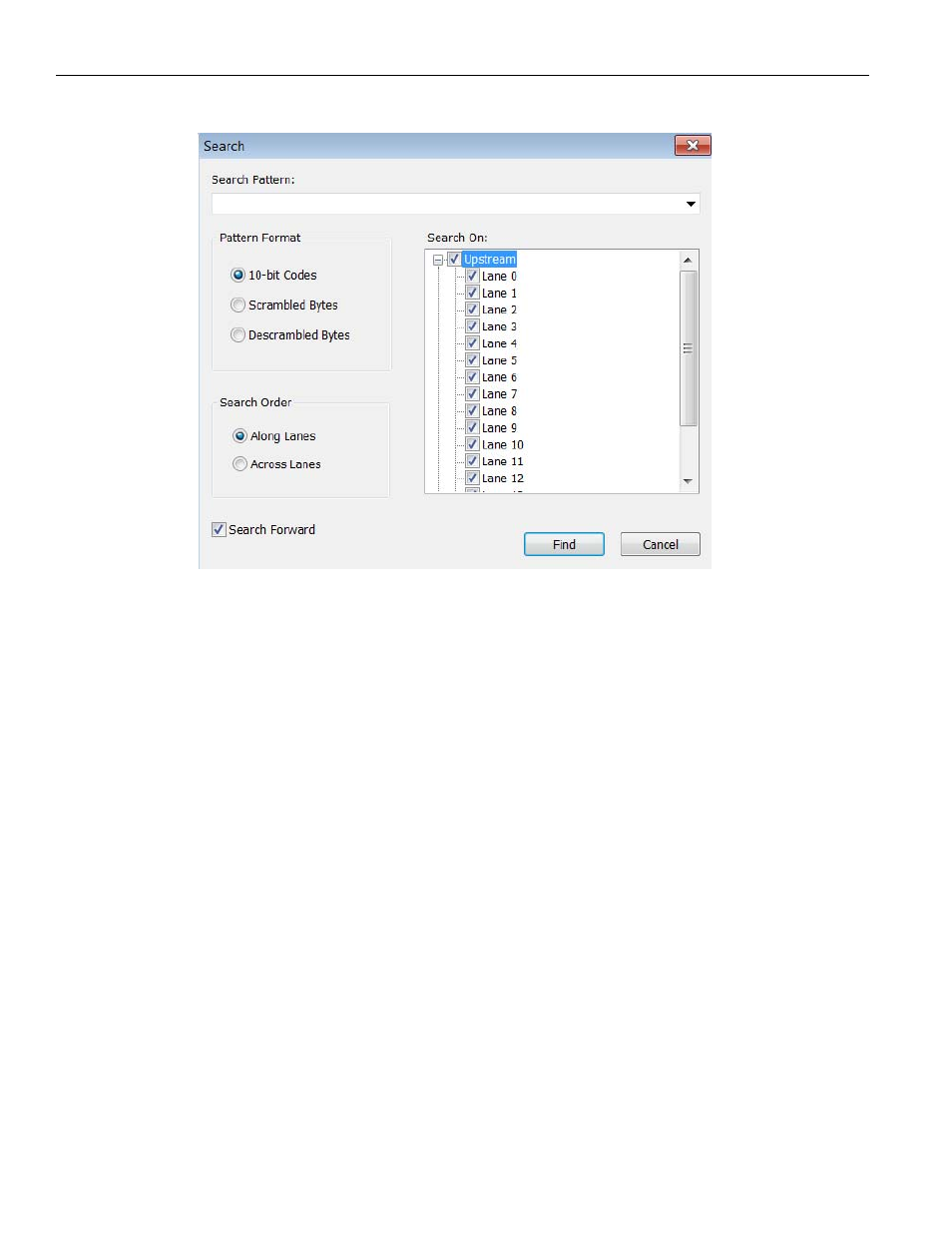

Figure 9.8: Search Dialog

You can copy data shown in the BitTracer display across a lane (horizontally) or across
multiple lanes (vertically), and then paste it into the Search Pattern window.

The Search Pattern window stores previous search values, which you can recall by
selecting the Search Pattern drop‐down button.

In the Pattern Format section, select to search in 10‐bit Codes, Scrambled Bytes, or
Descrambled Bytes format.

In the Search Order section, select to search Across Lanes (multiple lanes, vertically) or
Along Lanes (individual lanes, horizontally).

To define the direction (upstream or downstream) and the lanes on which to search, use
the Search On section.

9.15 Link

Configuration

Use the toolbar icon or right‐click in the data views to display the Link Configuration
dialog (see the following figure). This dialog allows you to associate logical lanes with
physical lanes, thereby providing support for lane bifurcation (multiple logical links on the
same physical link).

After logical lanes map to physical lanes, BitTracer mode reconfigures the display to show
the selected logical link (and the logical link width, as the link width selected in the
dialog).

Use the arrows to force symbol time skew on any lane.
