170 Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual
9.10 Symbols Bar
The Symbols window provides a summary of the different symbol types captured, by
quantity and direction, and includes hyperlinks for jumps to selected symbols.
Expanding the + sign at the left of each symbol provides a summary of symbols by lane.

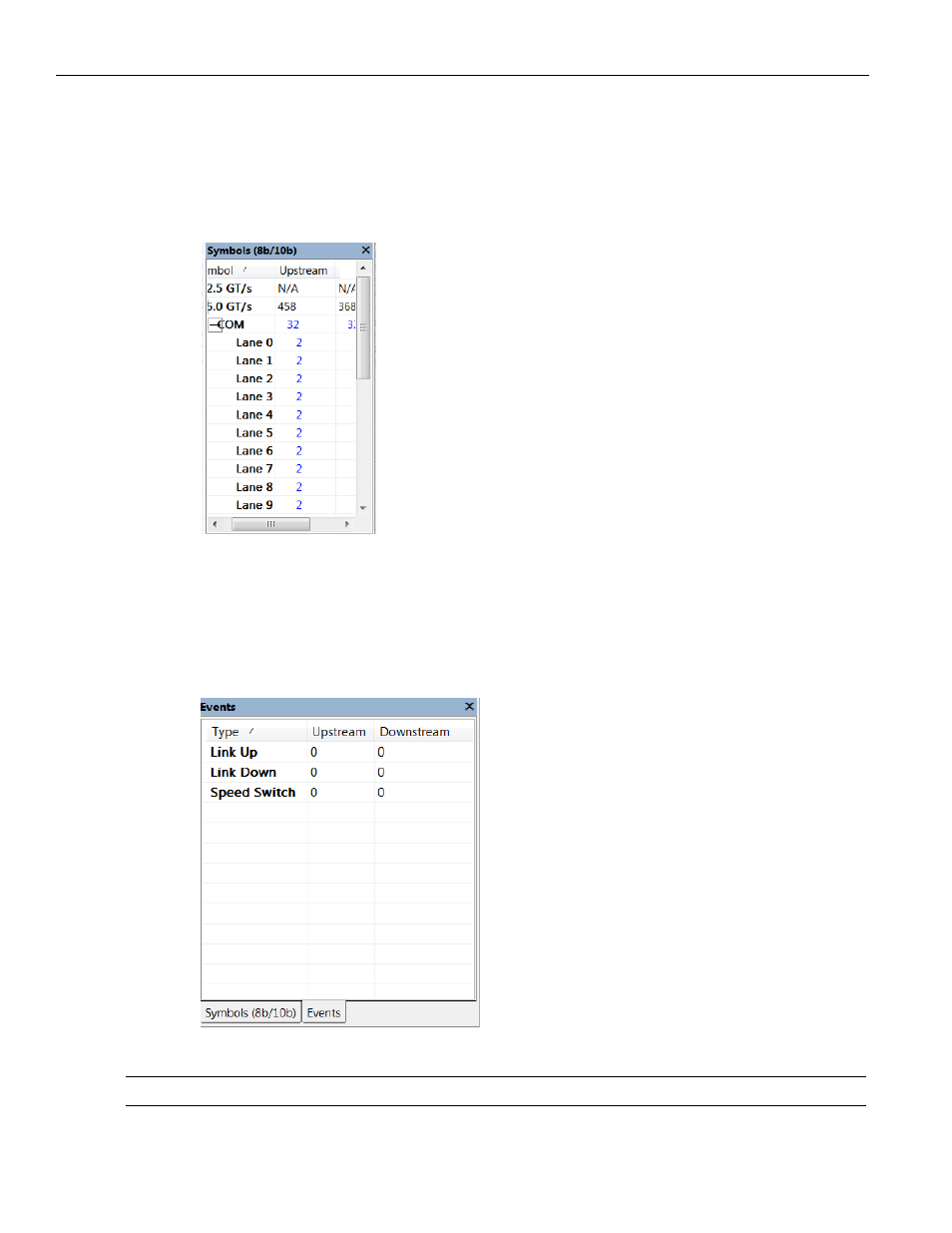

Figure 9.4: Symbols Window
9.11 Events Bar
The Events report window summarizes Link Up, Link Down, and Speed Switch events for
Upstream and Downstream.
Figure 9.5: Events Window
Note: The table entries are hyperlinks.
