PETracer Files

46





Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

4.11.1

How to Create a Multisegment Recording

To create a Multisegment recording:

1. Select Setup > Recording Options to open the Recording Options dialog at the

General tab. Click Switch to Advanced Mode.

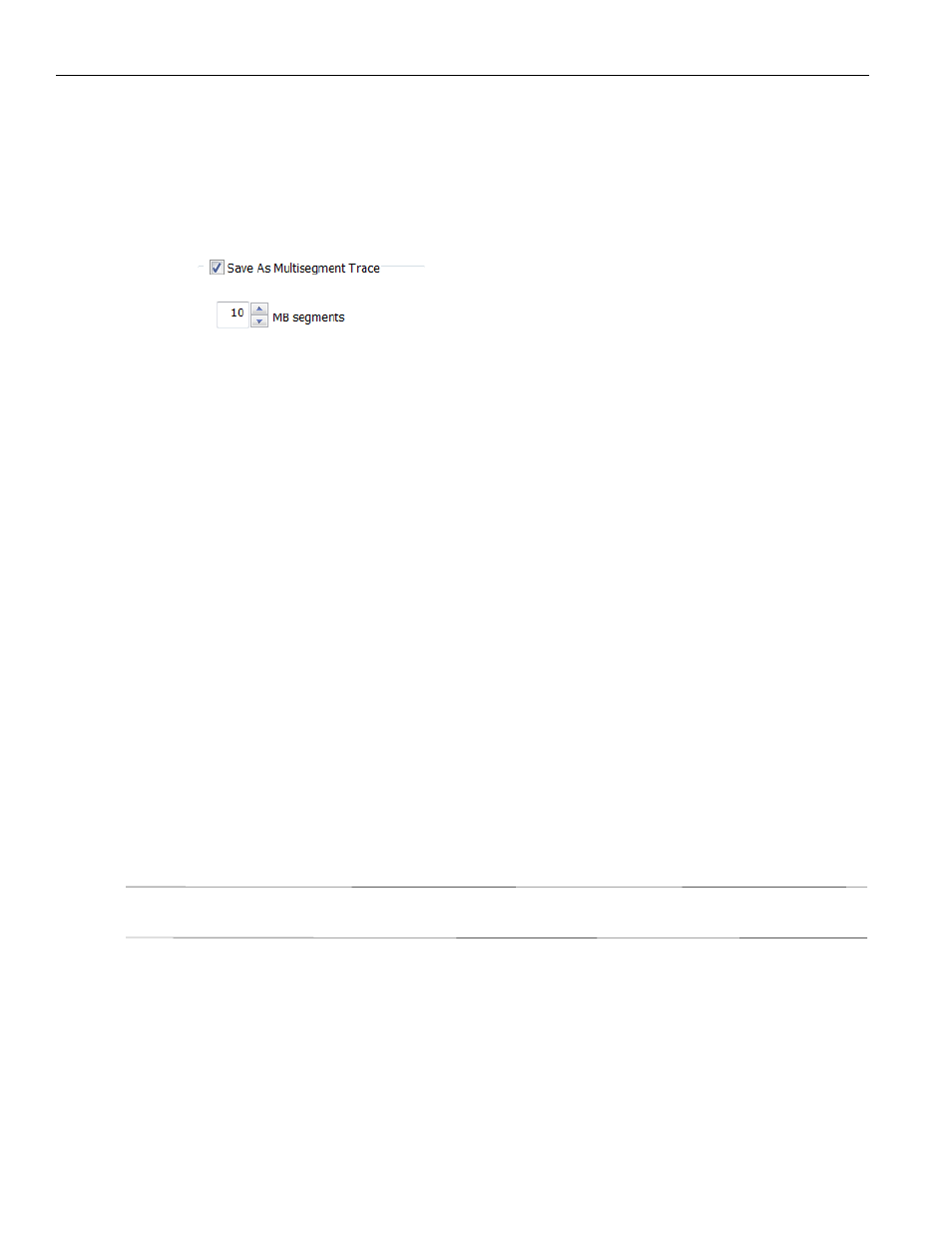

2. Check the box marked Save as Multisegment trace.
3. In the box marked MB Segments, enter a value of 4 to 128 MB.

4.11.2

What Gets Created

Multisegmenting produces an index file and segmented CATC Trace files. The default
name of the index file is data.pem

The index file and the segmented CATC Trace files are stored in a directory named after
the index file. The directory is named data_pem_files. Below this directory additional,
sequentially numbered sub‐directories (up to 100,000) hold the segmented CATC Trace
files. These sub‐directories bear simple numerical names: 00000 to 00999. Each of these
subdirectories can hold up to 100 sequentially numbered segment files. Collectively, the
entire directory structure can hold up to 10 million files.

Example

If you create a 1010 MB recording using 10 MB segments, the following files and sub‐
directories are created:

data.pem (This is the index file.)

data_pem_files\00000\segment_00000.pex

data_pem_files\00000\segment_00001.pex

...

data_pem_files\00000\segment_00099.pex

data_pem_files\00001\segment_00100.pex

data_pem_files\00001\segment_00101.pex

Note:

An additional index file is created called segments.col. This is an internal system file

that users should not modify.

4.12 PETracer Files

The PETracer software creates and uses different kinds of files:

CATC Trace Files: Recorded traffic

Recording Options Files: Configuration file that contains the various options
selected in the Recording Options dialog to configure the recording

Display Options Files: Configuration file that contains the options selected in the
Display Options dialog to configure how traffic is displayed
