5.21.12 NVME Command Submission Properties Dialog

The NVME Command Submission Properties dialog allows you to change the pattern and
customize it by defining each specific bit as shown in the figure below.

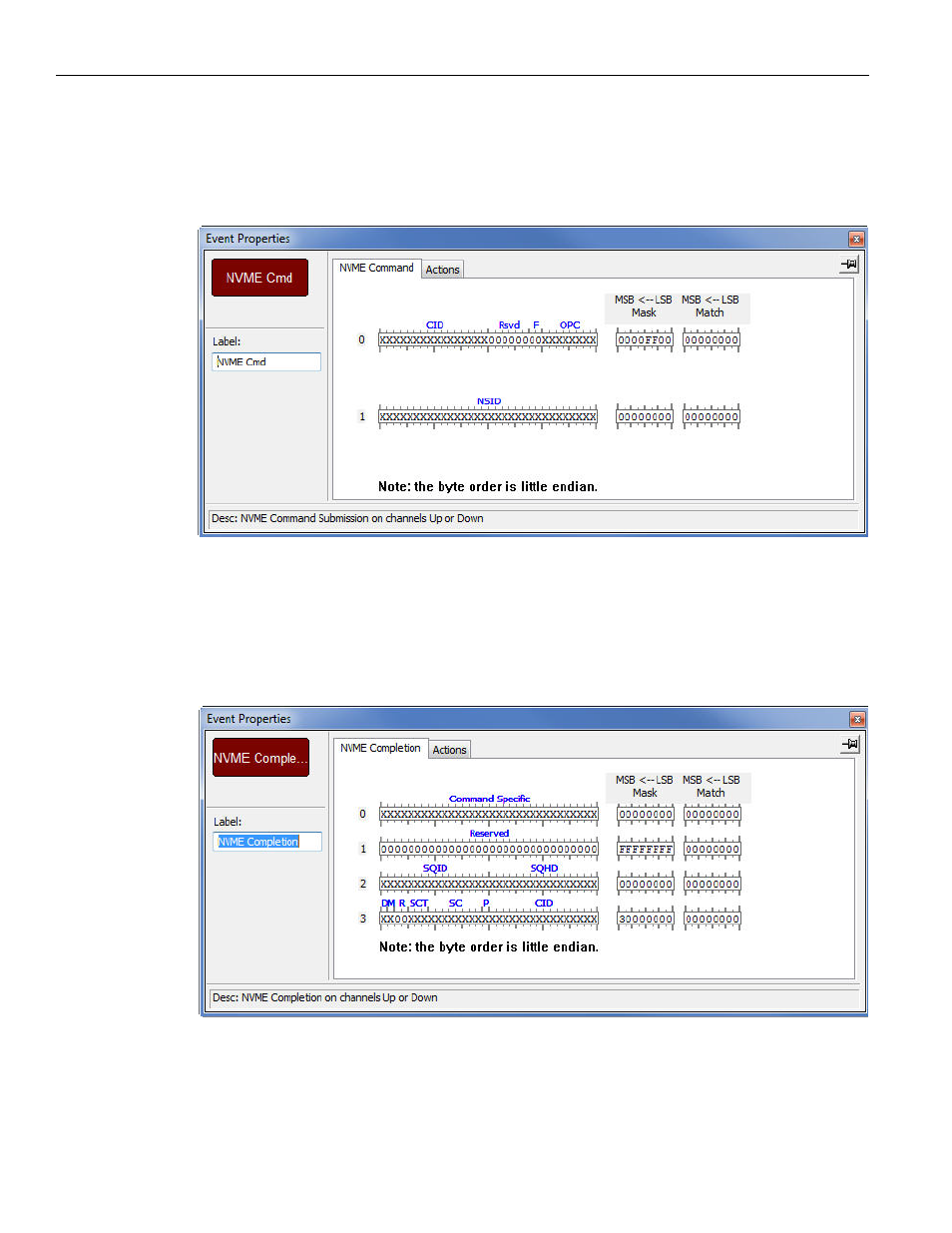

Figure 5.40: NVME Command Submission Properties Dialog

5.21.13 NVME Command Completion Properties Dialog

The NVME Command Completion Properties dialog allows you to change the pattern and
customize it by defining each specific bit as shown in the figure below.

Figure 5.41: NVME Command Completion Properties Dialog
