Teledyne LeCroy

Packet Cell Popup Menus

116





Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

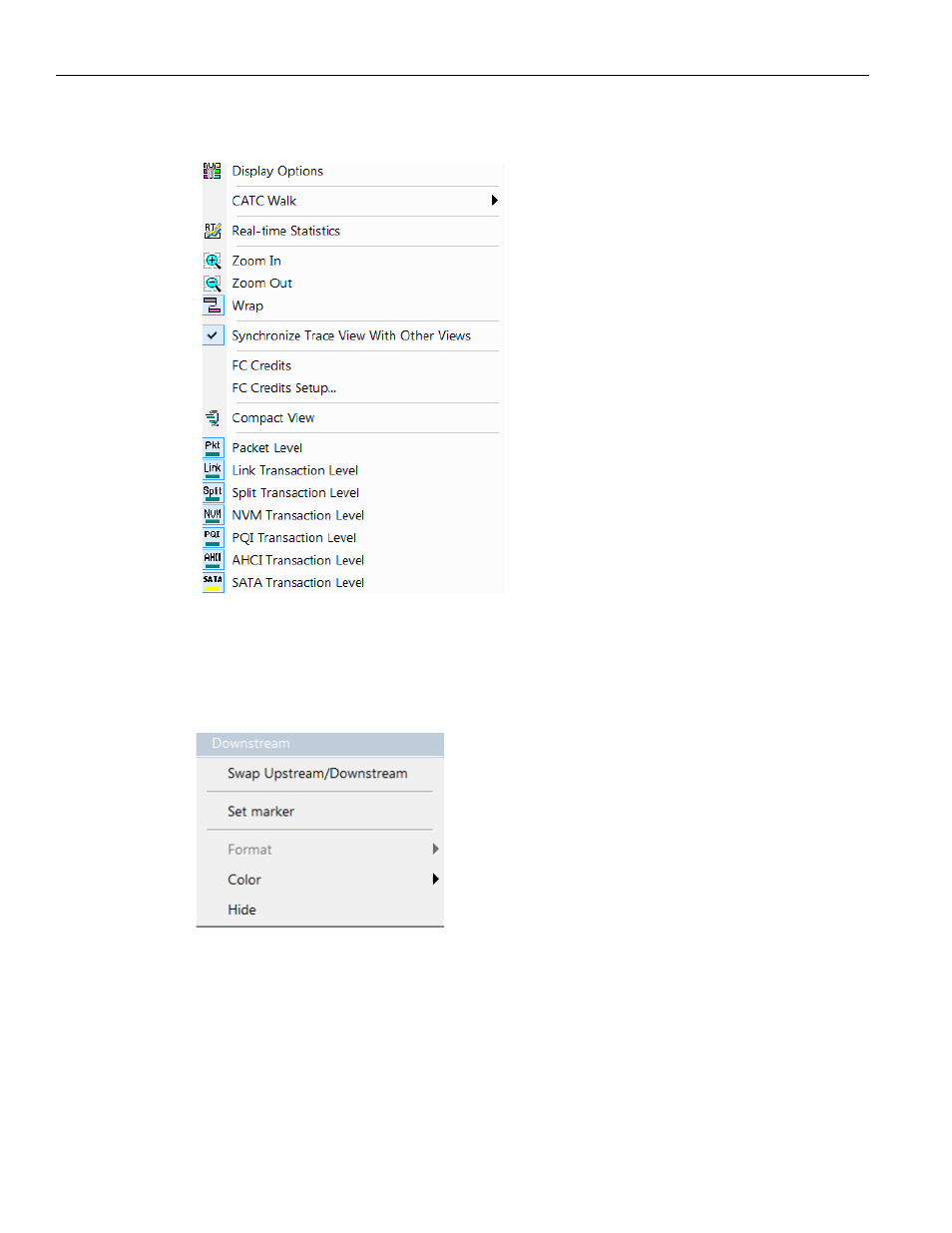

The right‐click pop‐up menu from Packet cell is displayed below:

6.8.1

Packet Header R-> Cell Popup Menu

The Packet Header R‐> cell has a pop‐up menu with the Swap Upstream/Downstream
command, which changes the directionality of the packets in the CATC Trace.

6.8.2

Packet Header G1 Cell Popup Menu

The Packet Header G1 cell has a pop‐up menu with the Show Header Fields command
(see

 “Show Header Fields” on page 113

), which exposes a detailed view of the selected

Header field (see the following figure).
