Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

89

Properties Dialog Boxes for Events

 Teledyne  LeCroy

5.21.10 ATA Command Properties Dialog

The ATA Command Properties dialog allows you to change the pattern and customize it by
defining each specific bit as shown in the figure below.

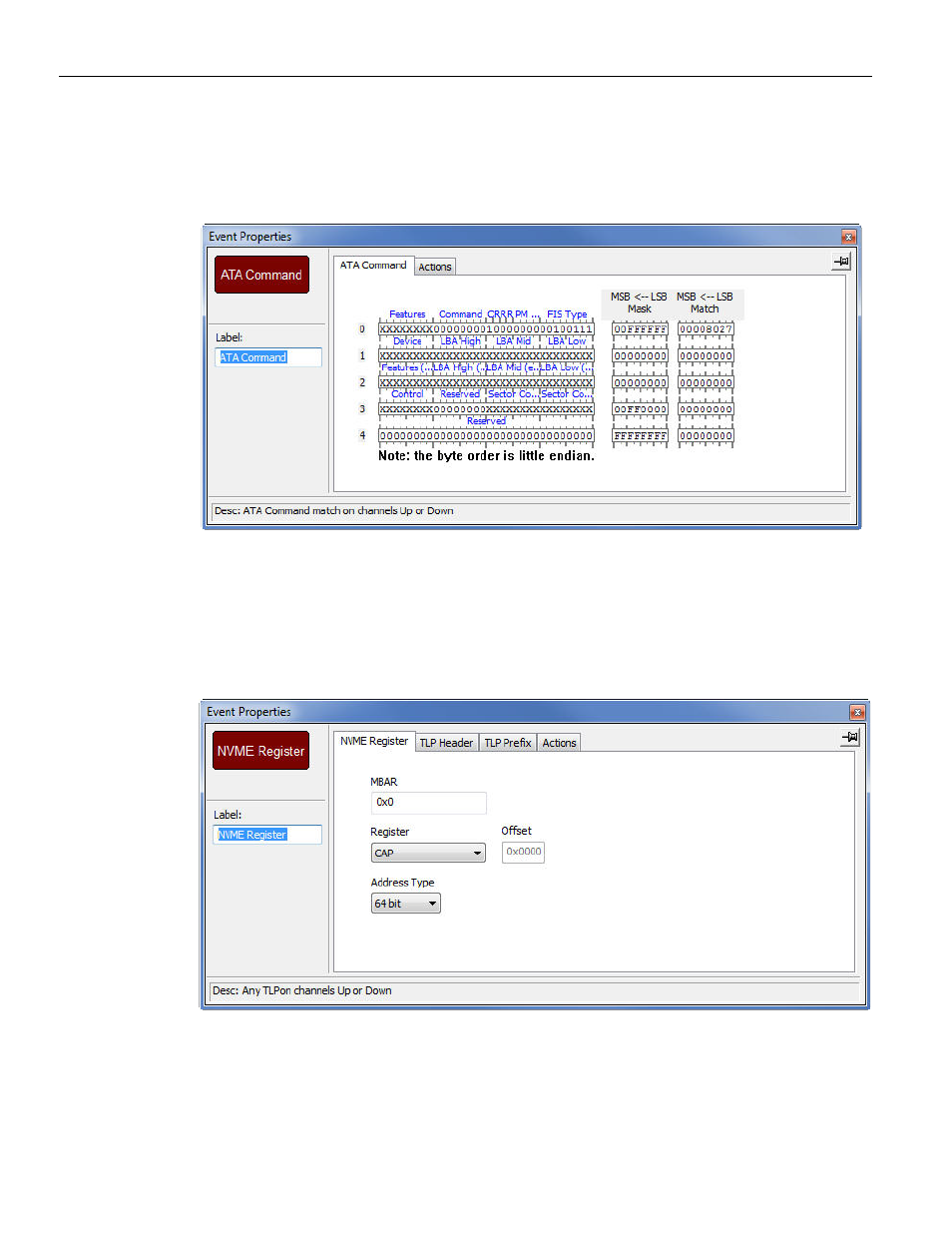

Figure 5.38: ATA Command Properties Dialog

5.21.11 NVME Register Properties Dialog

The NVME Register Properties dialog allows you to enter the MBAR value, choose the
Register and Address Type from the drop‐down list and enter the offset.

Figure 5.39: NVME Register Properties Dialog
