Teledyne LeCroy

CATC Walk Playlist

144





Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

7.7.2

Playback Window

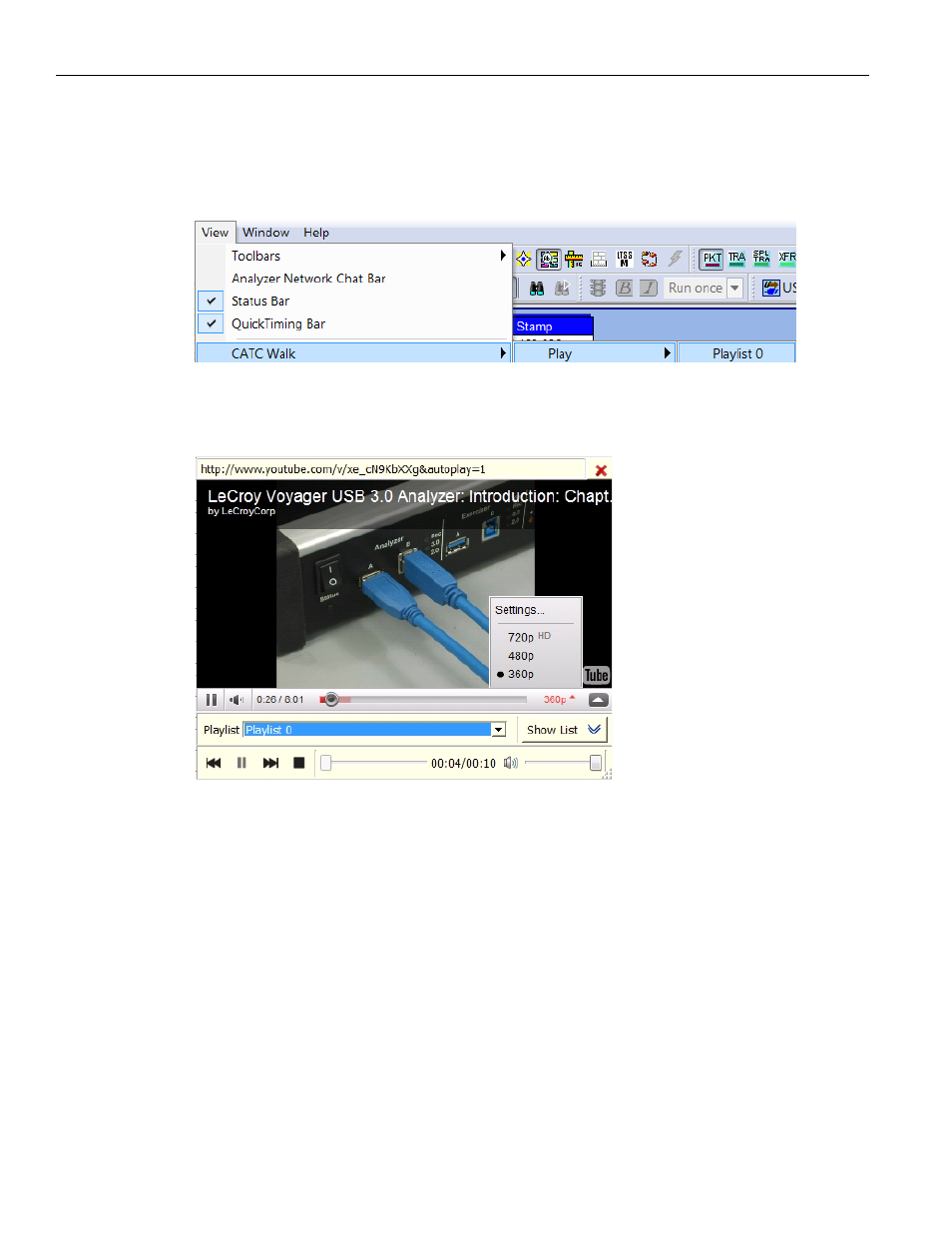

To playback a playlist, click on the View menu in the top toolbar of application, select
CATC Walk and then select Play > Playlist 1 as shown below.

Figure 7.26: View Dialog

The attachment item starts to play in the Playback window (see

Figure 7.27

).

Figure 7.27: Playback Window

The playback window is resizable. The close button at the top right corner and the size
grip for resizing at the bottom right corner will hide automatically when moving the
cursor out of the window.

Users can provide commentary to a captured trace, converting it into a script or a story
and can transfer this meta‐information to others.

Playlist Playback Controls

The playlist playback control buttons are (see the screen capture on the next page):

Play/Pause

Stop

Jump to Next attachment

Jump to Previous attachment

Seek slider for seeking to positions in media streams
