Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

19

Using Probes

  Teledyne LeCroy

3.8.11

Connecting the Probe Data Cable

x8 recordings require one cable. To connect a single Interposer data cable, connect the
probe data cable to the Interposer card at [7:0]. Connect Side A of the probe cable to the
Upstream [7:0] port on the Analyzer, and connect Side B of the probe cable to the
Downstream [7:0] port.

x16 recordings require two cables. Connect the second probe data cable to the Interposer
card at [15:8]. Connect Side A of the second probe cable to the Upstream [15:8] port on
the Analyzer, and connect Side B of the second probe cable to the Downstream [15:8]
port.

3.9 Using

Probes

3.9.1

Example: Connecting the Summit T3-16 Analyzer to the Device Under Test

Using a Gen2 MidBus Probe

Components

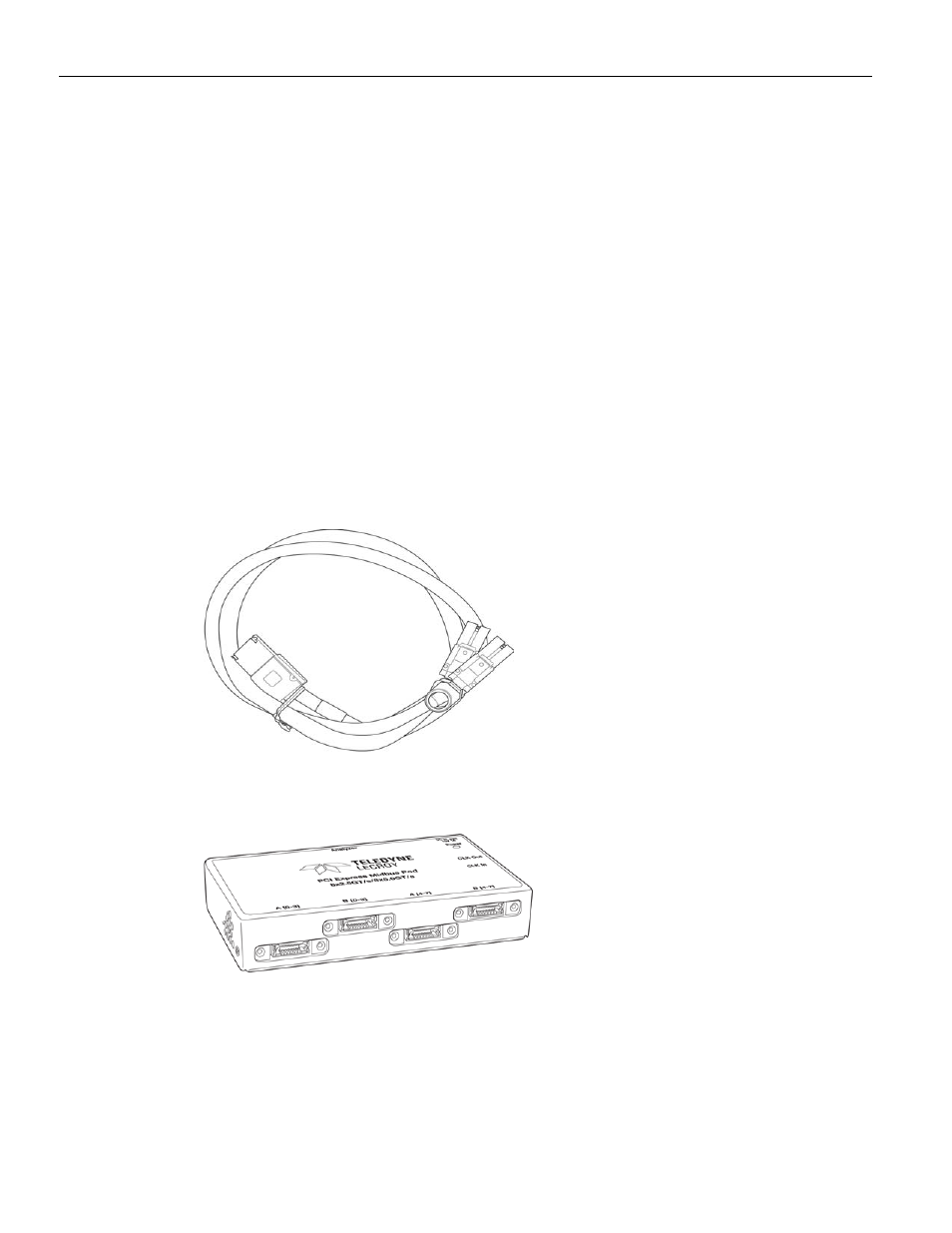

Figure 3.13: 1 or 2 iPass Y-cable

Figure 3.14: Gen2 MidBus Probe Pod
