Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual 11
Adding Devices Manually Teledyne LeCroy

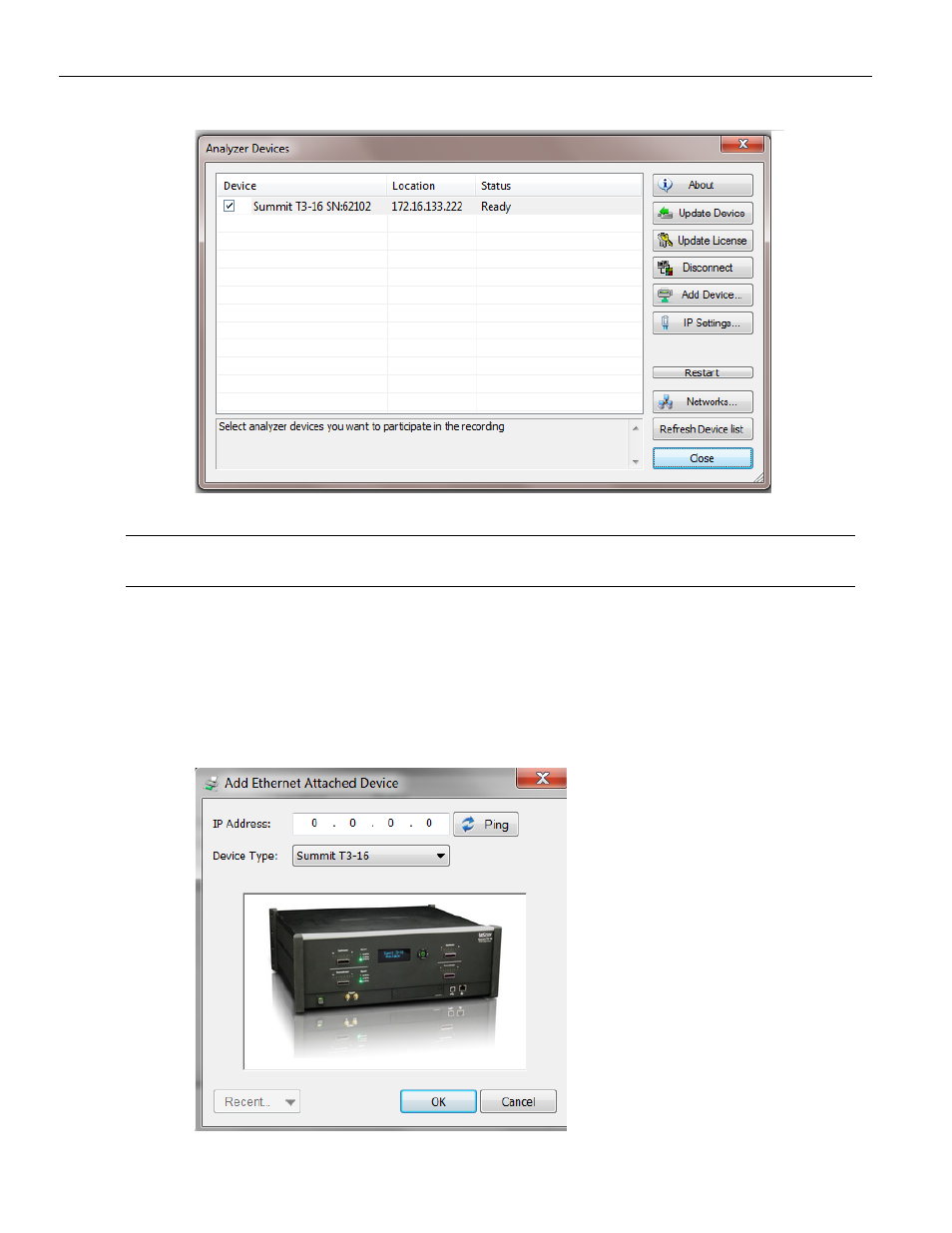

Figure 3.5: Analyzer Devices Dialog
Note: To disconnect from a device, display this dialog, select the device, and click the Disconnect
button.
3.4 Adding Devices Manually
You can locate and add a summit T3 located in a Ethernet subnet using the Add Device
button. Perform the following steps:
Click Setup ‐> All Connected Devices ‐> Add Device ‐> to display the Add Ethernet
Attached Device dialog.
Figure 3.6: Add Ethernet Attached Devices Dialog
