Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

127

Decoding Traffic

 Teledyne  LeCroy

6.13.6

AHCI

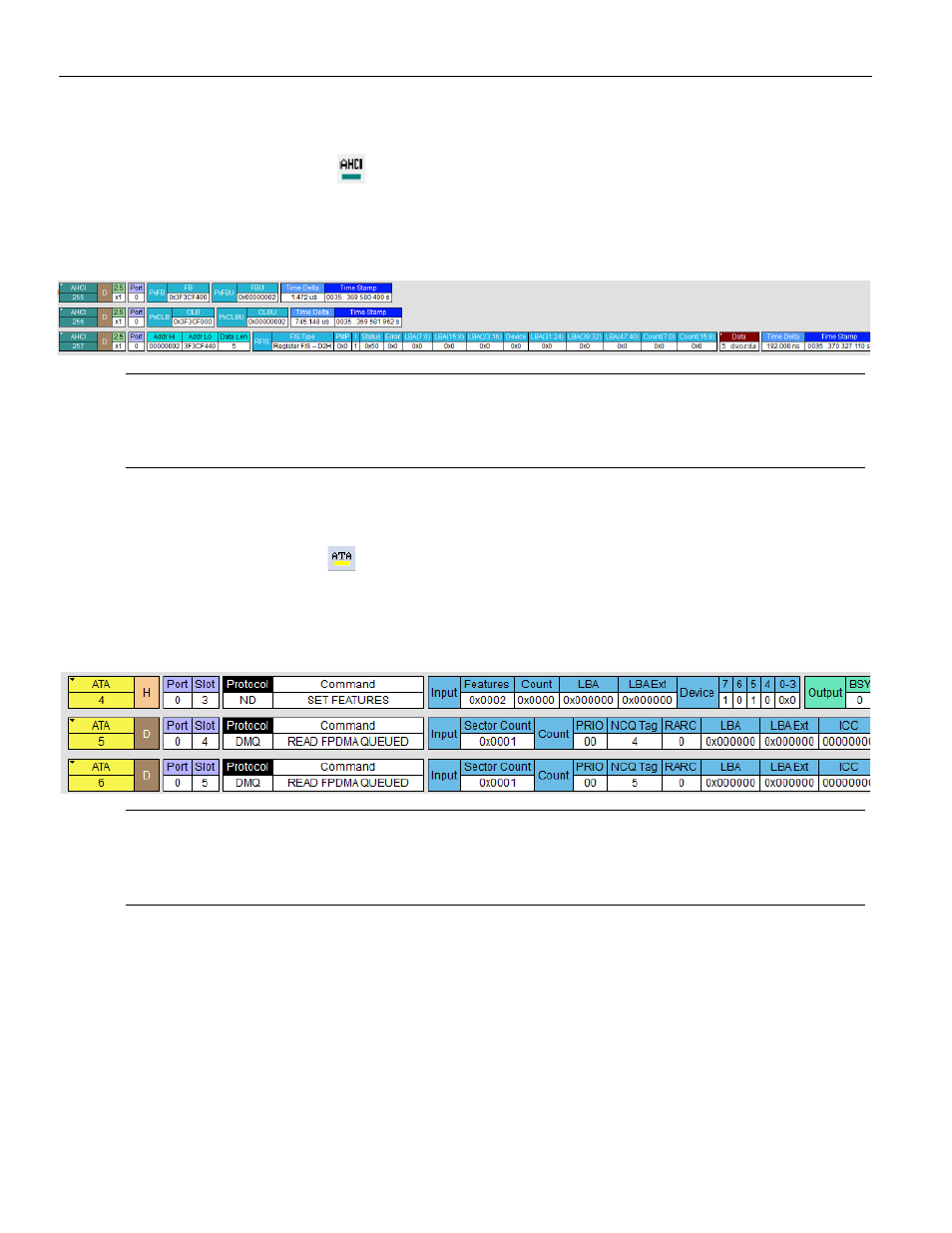

AHCI level decode

 displays AHCI transactions. PETracer decodes the storage

commands starting from lower Transaction Layer decodes. In the case of AHCI, it will
decode first the Packet Level, then the Link Transaction level, then the Split Transaction
Level and finally the AHCI decode level.



Note:

The trace must contain the device enumeration sequence so the decoding picks up the

associated base addresses and AHCI transactions can be properly decoded. If the enumeration
sequence is not available the base addresses must be manually entered in the PCIe SSD
Configuration dialog from the Tools menu.

6.13.7

ATA

ATA level decode

 displays ATA transactions. PETracer decodes the storage commands

starting from lower Transaction Layer decodes. In the case of ATA, it will decode first the
Packet Level, then the Link Transaction level, then the Split Transaction Level, then AHCI
level and finally the ATA decode level.

Note:

The trace must contain the device enumeration sequence so the decoding picks up the

associated base addresses and

ATA

 transactions can be properly decoded. If the enumeration

sequence is not available the base addresses must be manually entered in the PCIe SSD
Configuration dialog from the Tools menu.
