Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

109

Probe Settings

 Teledyne  LeCroy

5.26.4

Load

The Load function in the Recording Rules and the Probe settings tab has the following
options (see

 Figure 5.60 on page 109

):

Load the whole Recording Options (.rec)

Load the Recording Options of a PCIe Trace Files (.pex)

Load only the Recording Rules portions of the recording options (.rr)

Load only the Probe Settings portions of the recording options (.ps)

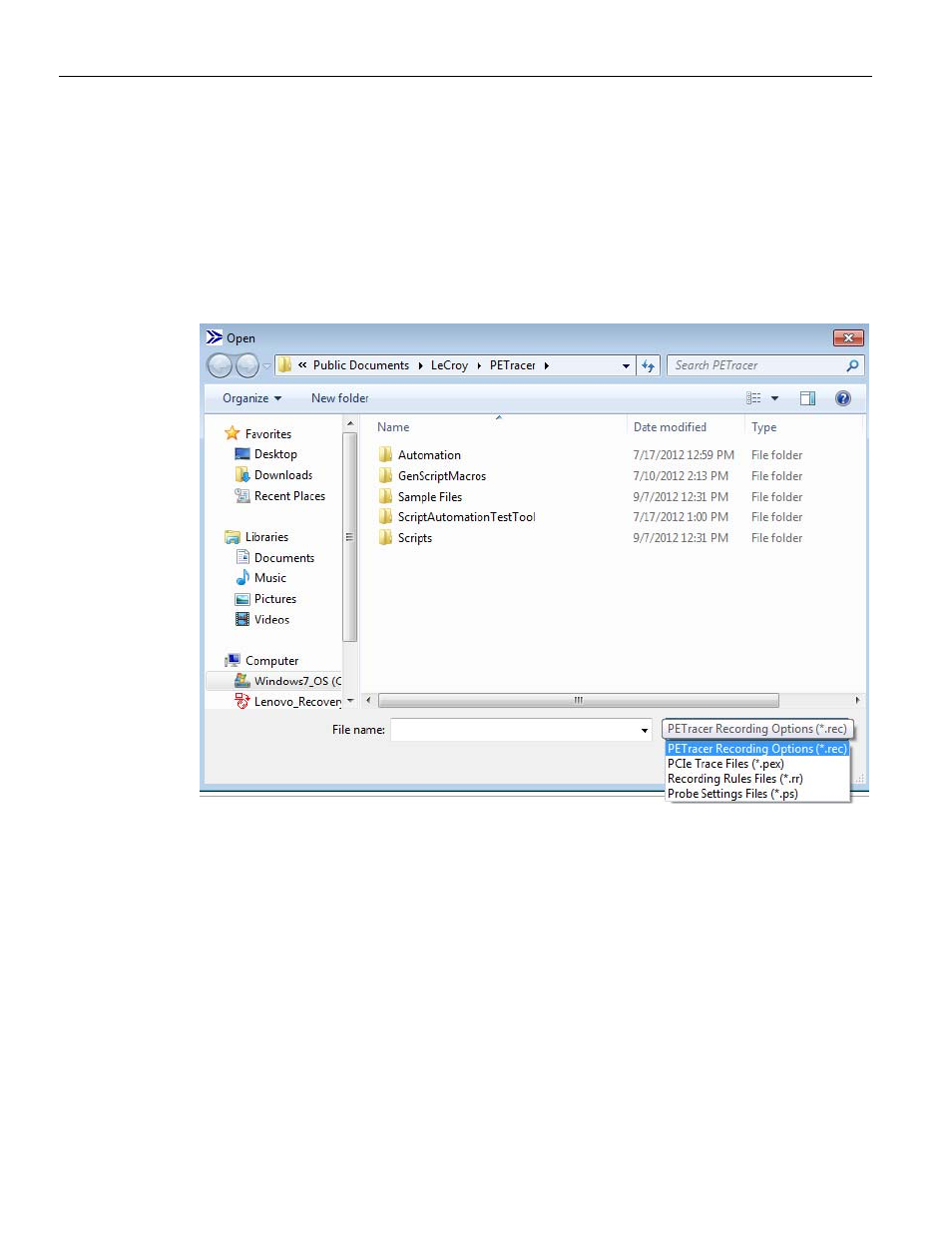

Figure 5.60: Load Dialog
