Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual 137
Go To Marker Teledyne LeCroy

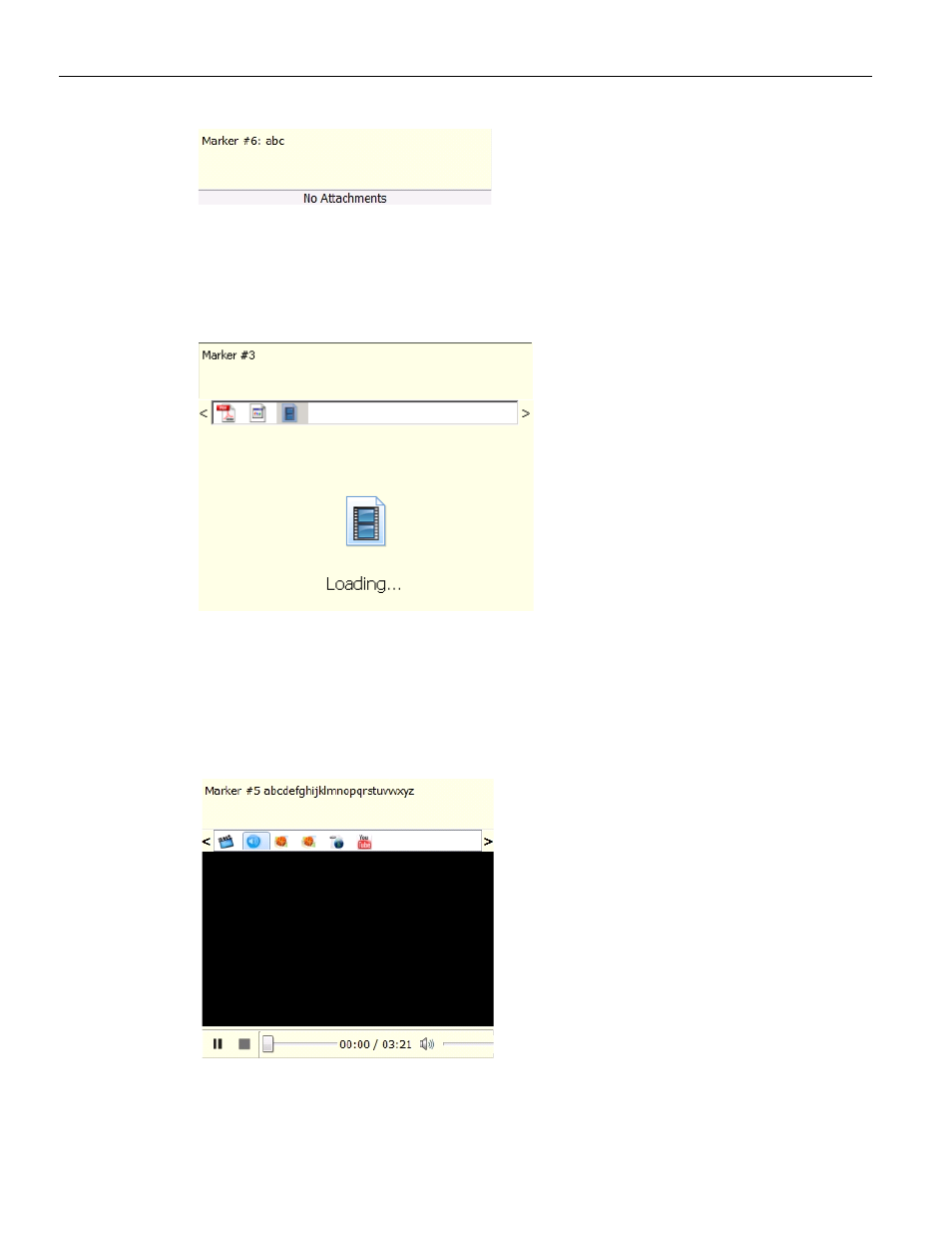

Figure 7.18: No Attachments Pop-up Window
If there are attachments, the status bar is hidden. You can move the cursor to an
attachment icon in the list view and a preview of the attachment starts (see
Figure 7.19
on page 137 ).
Figure 7.19: Preview Attachments Pop-up Window
Audio
Audio snippets that are recorded and attached to certain point of interest in a trace can
be played. The basic Play, Start, Stop, Pause buttons are displayed to listen to the audio
file.
