Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual

73

Resources

 Teledyne  LeCroy

5.17.2

Basic Resource

Basic Resources are for the Link States, Ordered Sets (except TS1 and TS2) and Errors. A
Basic Resource does not allow you to define patterns to the bit level. It just matches
events that have been predefined.

To set a Basic Resource, click on the New Event button and select any of the options. In
this case we have selected Ordered Set: EIEOS. The EIEOS displays in the Available Events
panel. Double‐click on the EIEOS to select other Ordered Set events and go to the Actions
tab to configure specific Actions.

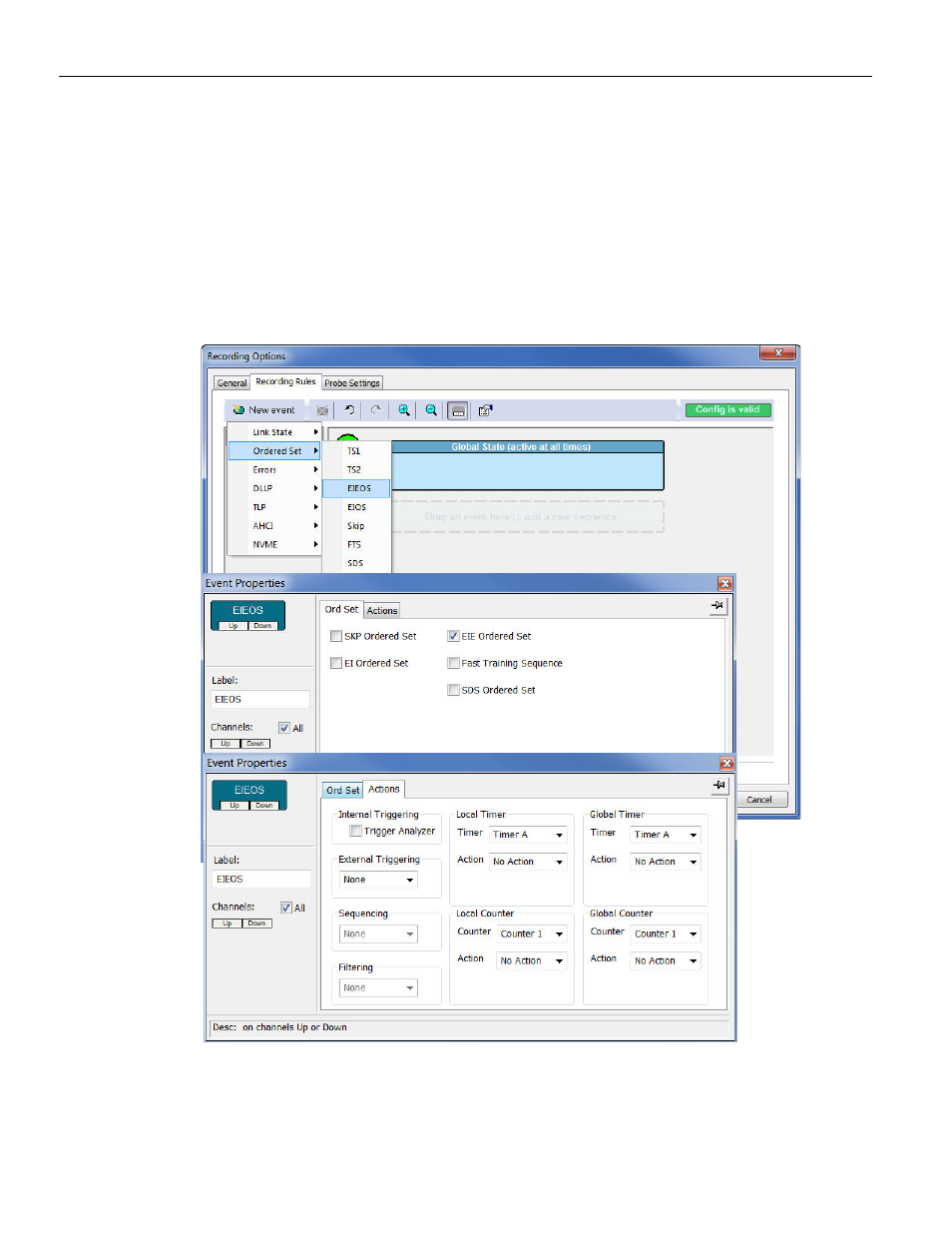

Figure 5.20: Setting Up a Basic Resource
