7 ignore eds, 8 ignore idle errors, 9 swizzling config – Teledyne LeCroy Summit T3-16 PCIe Multi-lane Protocol Analyzer User Manual User Manual
Page 76

Teledyne LeCroy
Link Settings
64
Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual
5.14.7
Ignore EDS
Lets the Analyzer ignore EDS. (see
: 3H.)
5.14.8
Ignore Idle Errors
When set analyzer will not store errors in between packets into memory. This option
helps to preserve analyzer memory to store more packets in cases where memory
efficiency is critical. This option filters out Compliance Pattern as well. (see
: 3I.)
5.14.9
Swizzling Config...
The Swizzling Config dialog allows you to reconfigure the order of the US (UpStream) and
DS (DownStream) lanes. Check the box to Auto‐Configure Lane Swizzle (see
: 3J).
Note:
Autoswizzle works only when the analyzer sees the LTSSM Configuration state link training
sequence.

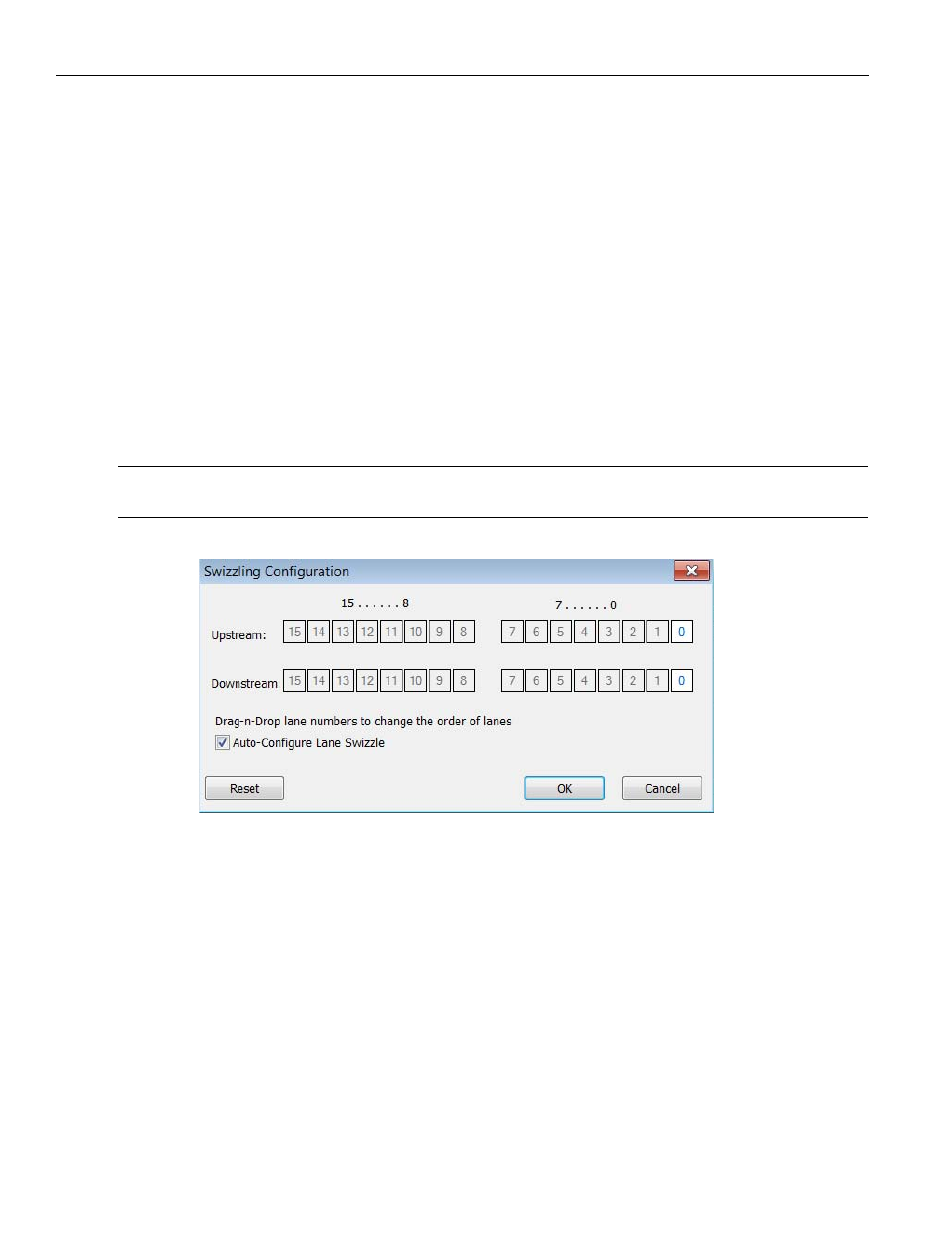

Figure 5.12: Swizzling Config Dialog
When the Auto‐Configure Lane Swizzle is checked, it is important to configure Lane 0. You
can do so by manually dragging Lane 0 to the required position. See
.
