Teledyne LeCroy Summit T3-16 PCIe Multi-lane Protocol Analyzer User Manual User Manual
Page 107

Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual
95
Counter
Teledyne LeCroy

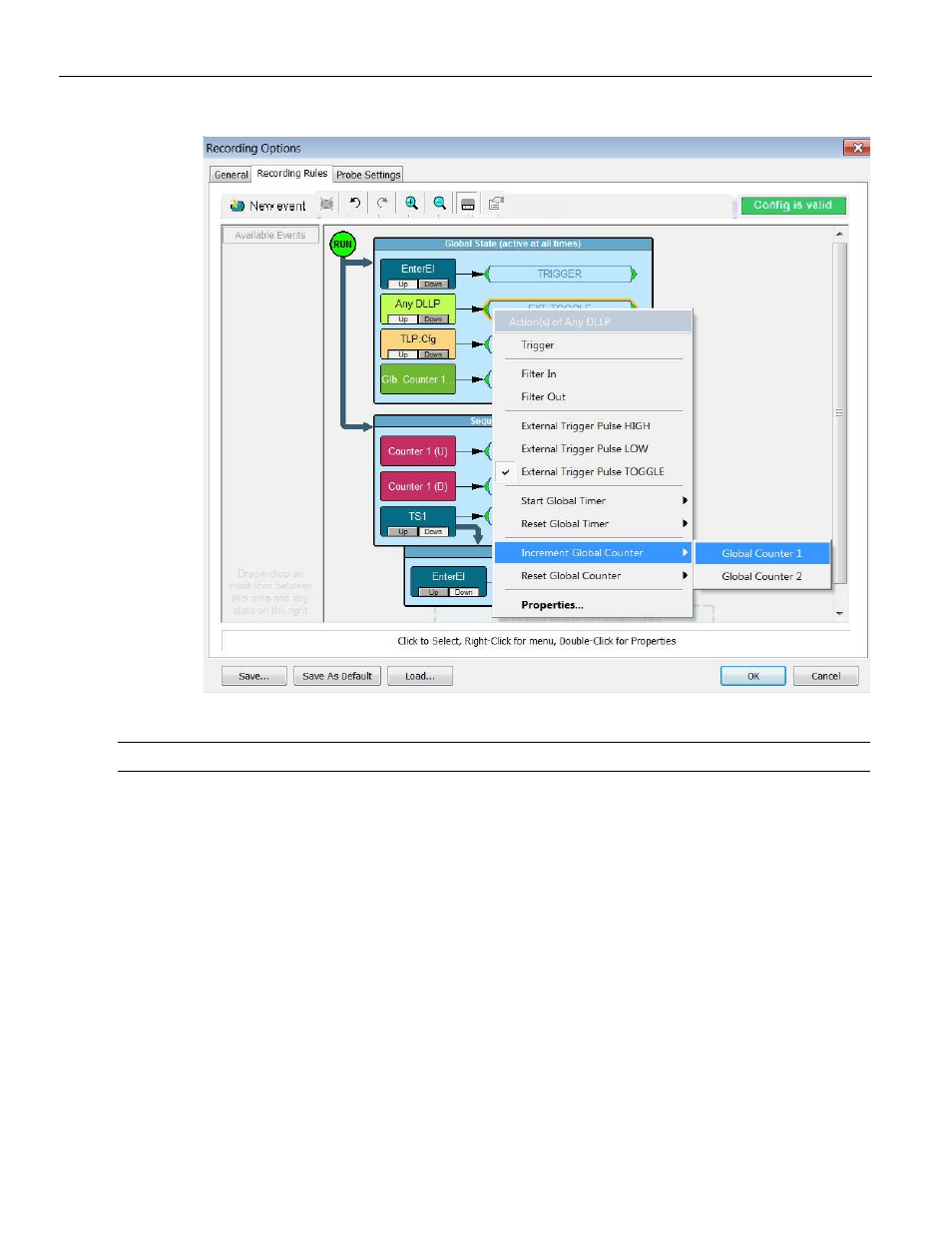

Figure 5.45: Incrementing and Resetting Global and Sequence State Counters
Note:
Listed below are some of the considerations to note about the counter functionality.
1. If a counter is reset, it will restore to it's original value, in this case the value defined
by the user.
2. Resetting a counter will stop it and set it to it's original value.
3. Local counters for a particular state will automatically reset if the sequencer
advances to another state. Example: "Counter A" in State 1 and "Ccounter A" in State
2 are different timers not related to each other.
4. Local counters are controlled by events defined in the same state where the counters
are defined.
5. In case of competing actions to control global counters using the same event from
global and local states, the control from local states takes priority.
