Teledyne LeCroy Probe Settings
102 Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual
5.26.1 Setting Auto Calibration
The Probe Settings tab in the Recording Options dialog displays the equalizer settings. To
set all lanes upstream and downstream check the Set All Lanes box. Click on Auto
Configure (see Figure 5.52) to display the Calibrate dialog (see
Figure 5.53 on page 103 ).

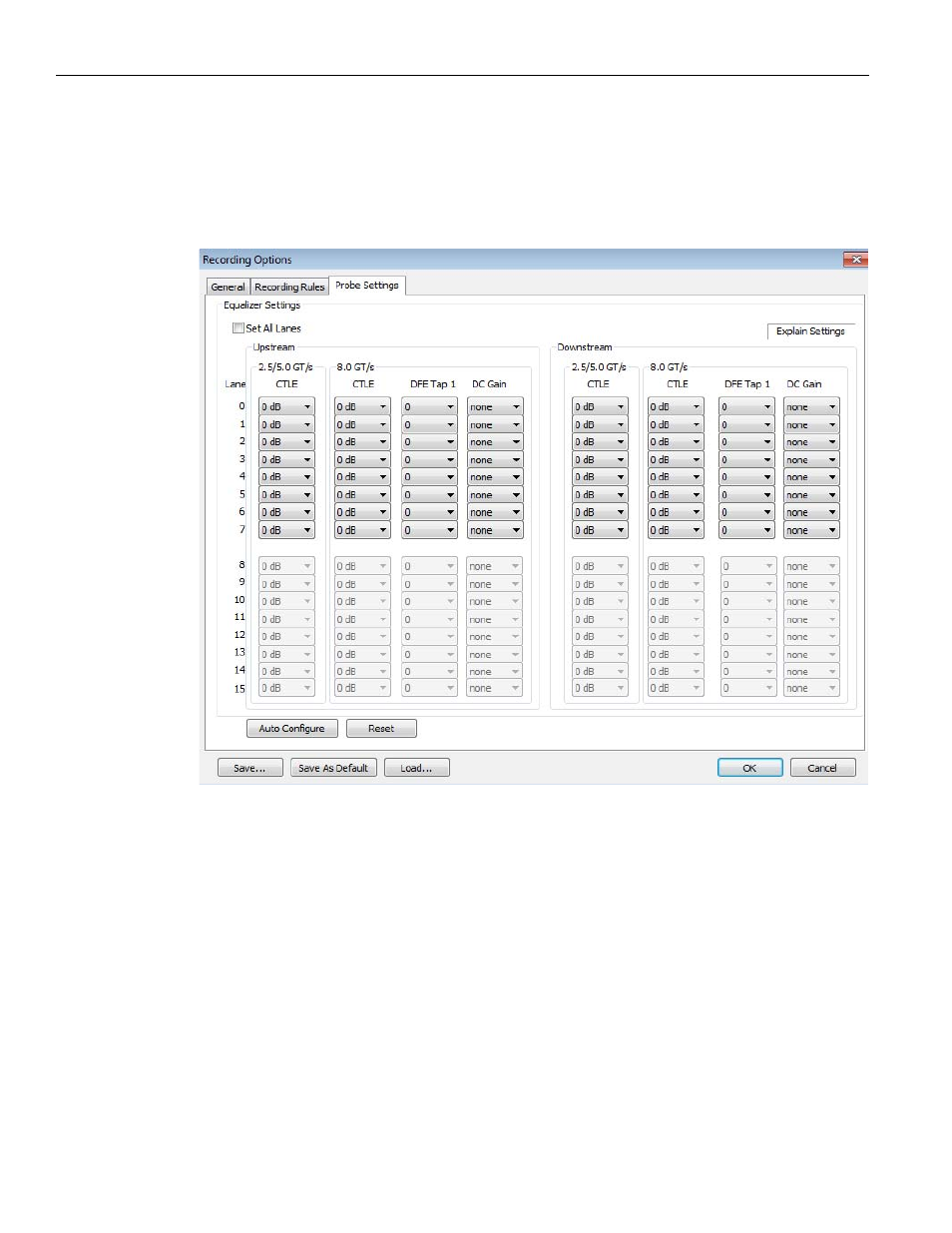

Figure 5.52: Probe Settings Tab
You can auto configure the probe settings by clicking on the Auto Configure button. In
order to calibrate the device the link should be trained to the widest width and the
highest speed. Specify the link width, speed and lane polarity click Start Calibration (see
Figure 5.53 on page 103 ). By default, the polarity settings are carried over from the
recording options menu.
