Teledyne LeCroy Go To Marker
140 Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual
7.6.9 Edit Marker
To edit a marker, right‐click on the marked item and select Edit marker from the menu or
Ctrl + L. The Edit Marker dialog displays. This Edit Marker window can be used to edit one
marker at a time.
You can do the following in the Edit Marker dialog:
 Edit text attachment.
 Record audio attachment.
 Add URL link attachment
 Add a file attachment. Click on File and click the Open button or drag and drop
the file.
 Preview audio/video/image/URL/YouTube attachment or open other files with
system default application.
 Save an attachment to a file.
 Remove attachment.

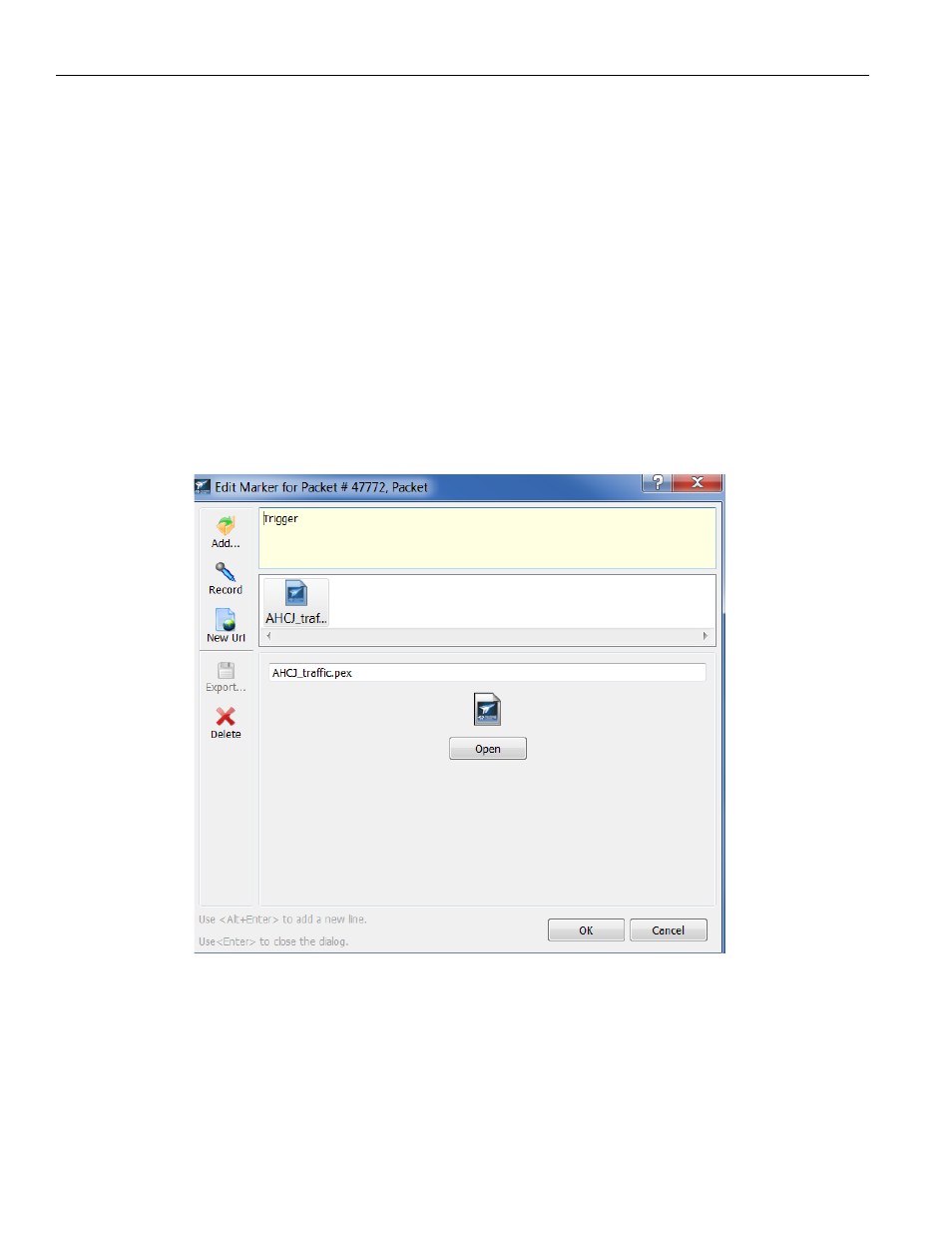

Figure 7.20: E DIT Marker for Packet Dialog
7.6.10 All Markers Dialog
Select Search > Go to Marker > All Markers or press Ctrl + M to display a list of all the
markers in the file. The dialog uses a tree structure to show packets, fields and markers
(see
Figure 7.21 on page 141 ). The features of the Markers dialog are:
 All Markers are displayed.
