Summit T3‐16 PCI Express Multi‐Lane Protocol Analyzer User Manual 141
Go To Marker Teledyne LeCroy
 All attachments within the marker are displayed. Hovering over the marker dis‐
plays a tool‐tip displaying the size of all the attachments.
 You can collapse or expand the item marked to view the attachments.
 The Time and size of audio and video files are displayed.
 You can edit Playlists from this window.
 You can edit, delete a marker or delete all markers from this location.
 You can filter attachments within the marker.
 You can select a range of markers by clicking Shift and selecting a range.
 You can select multiple markers by clicking Ctrl and selecting individual markers.
 Double‐click on a marker to go to that marker in the trace and close the dialog.

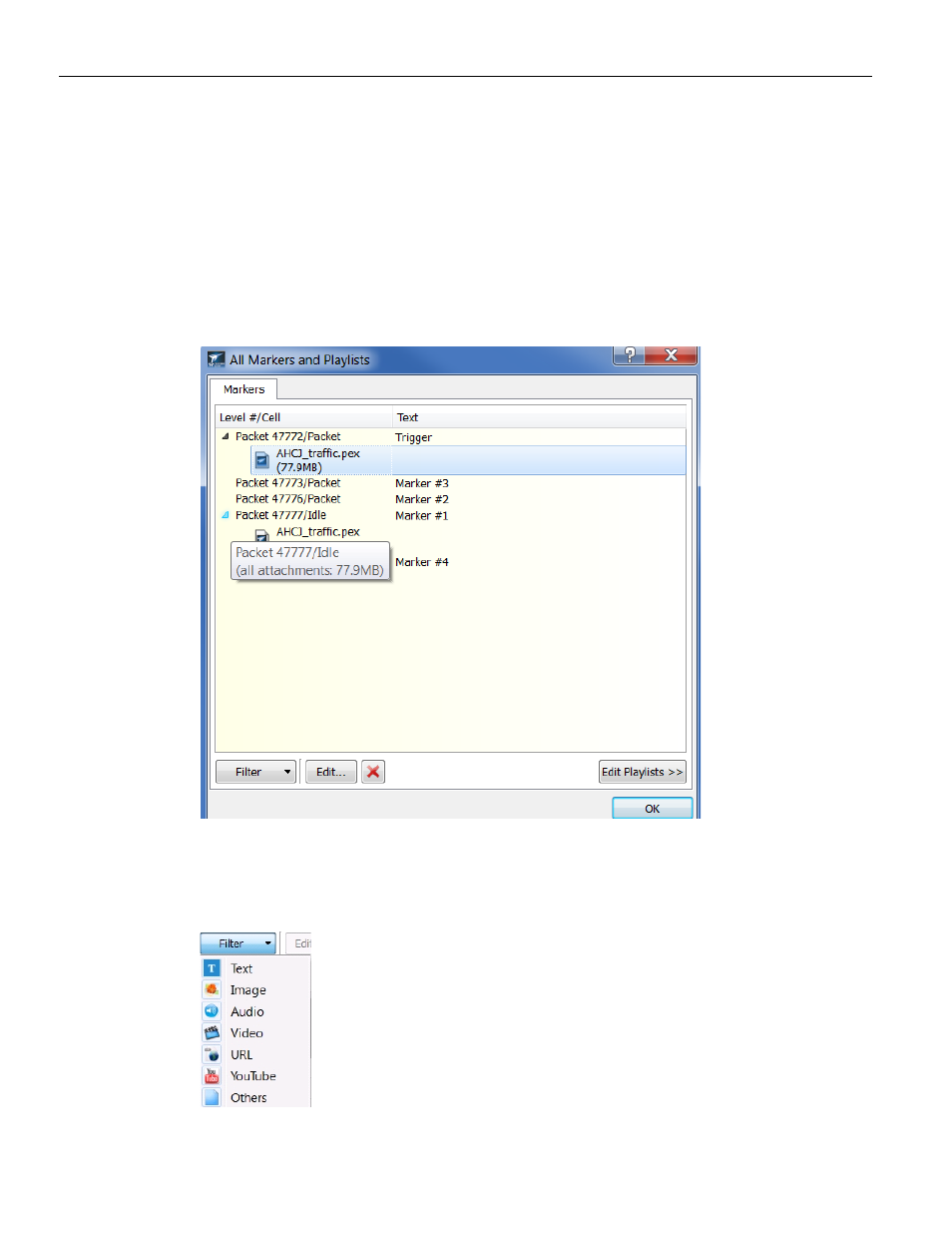

Figure 7.21: All Markers and Playlists Dialog
You can filter to show or hide text, image, audio, video, URL, YouTube videos and other
files.
Figure 7.22: Filter Dialog
