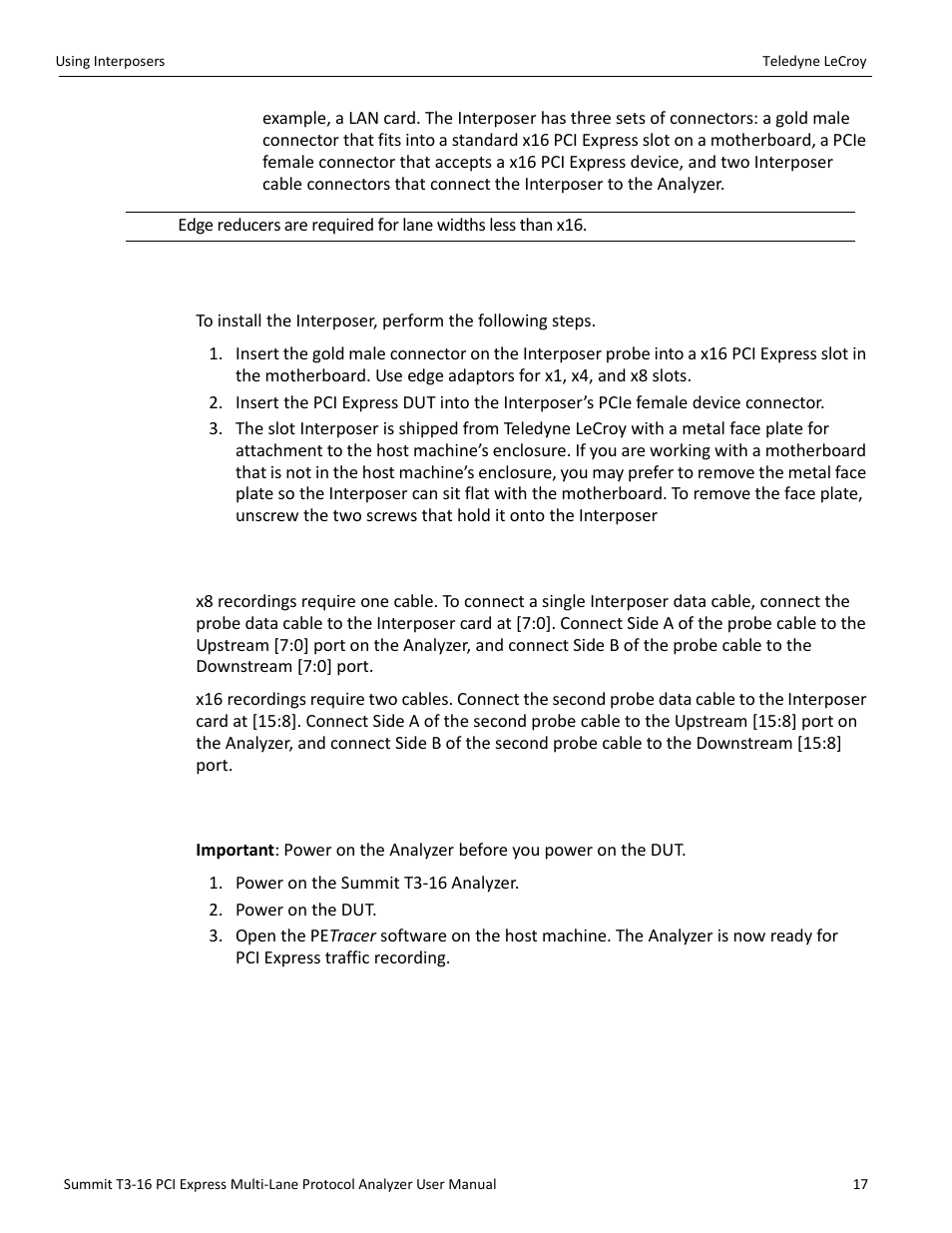

6 installing the gen2 active interposer, 7 connecting the probe data cable, 8 power on analyzer and then dut – Teledyne LeCroy Summit T3-16 PCIe Multi-lane Protocol Analyzer User Manual User Manual
Page 29
