LabMaster Channel Setup
You can adjust the sensitivity and the positioning of the waveforms and
set the color of the trace for up to 80 channels on the Channel Setup

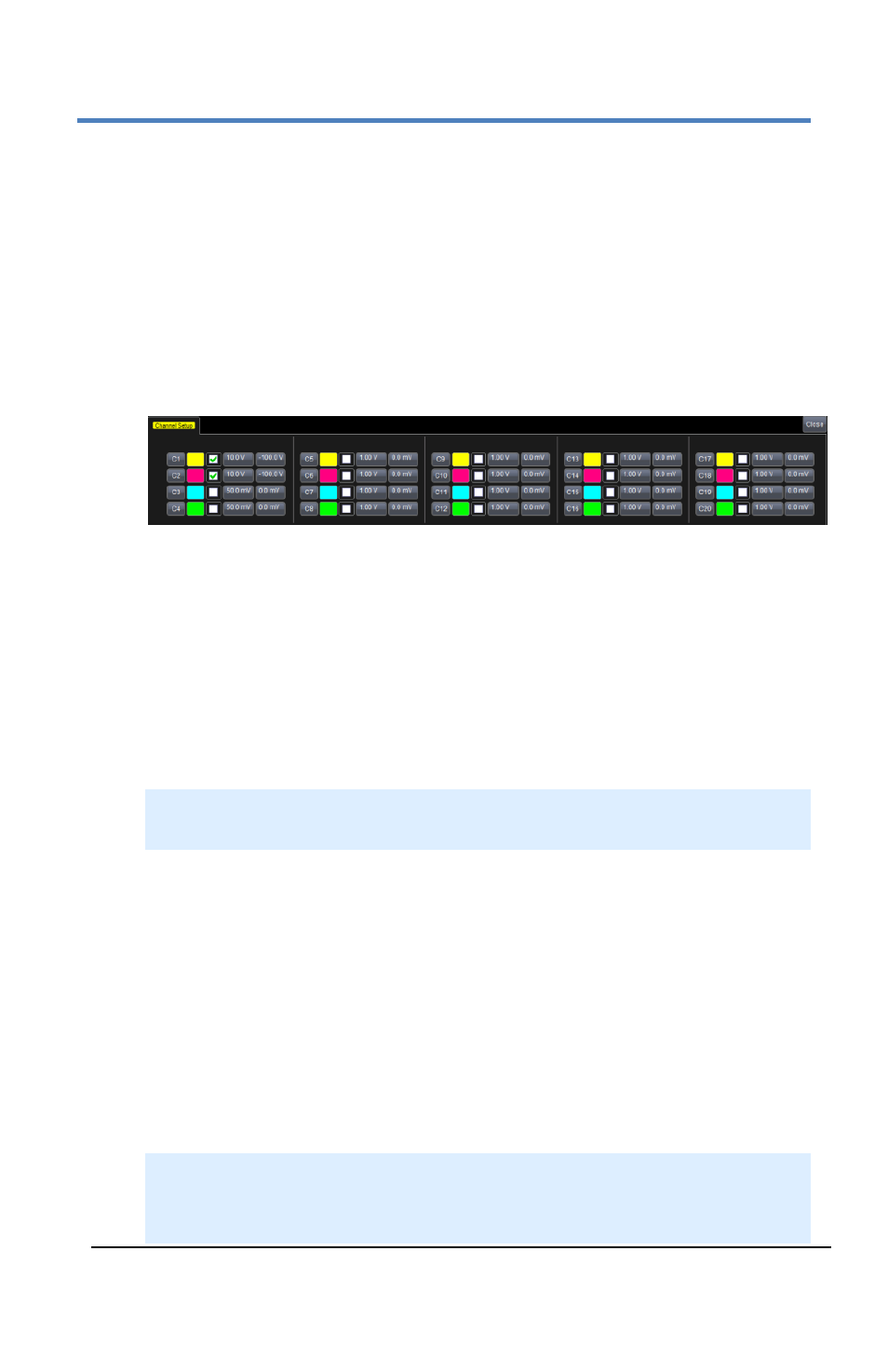

dialog. The example shown below illustrates Channel Setup with a 20
channel LabMaster.
1. Choose Vertical → Channel Setup... from the menu bar to open
the Channel Setup dialog.
2. Touch inside the checkbox next to a channel to display the trace.
3. To adjust sensitivity and position, turn the V
ERTICAL
G
AIN
front
panel knob for the selected channel.
OR
Touch inside the Volts/Div field next to the channel and enter a
value. Click the keypad button to enter a value using the pop-up
keypad, or use the up/down arrows.
NOTE: The set voltage is shown on the trace descriptor label and
in the Volts/Div field in the dialog.
4. To set the offset, turn the V
ERTICAL
O
FFSET
adjust front panel knob
directly above the channel button whose waveform you want to
move vertically. Or, you can touch inside the Offset field next to
the channel and type in a value on the pop-up keypad. To set the
vertical offset to zero, touch the Zero Offset button directly
below the Offset field.
5. To change the color assigned to a channel, click on the color box
and choose a color.
NOTE: Front panel knobs can be used to adjust V
ERTICAL
O
FFSET
and G
AIN
for channels 5-80, provided the trace descriptor label is
active for the corresponding channel.
