Teledyne LeCroy LabMaster 10Zi Getting Started Manual User Manual
Page 122

Getting Started Manual
LM10Zi-GSM-E Rev A
115
Display Setup
Access and adjust the different display configurations on the
oscilloscope using the following steps:
NOTE: Not all grid styles are available on all instruments. Grid styles vary
based on both oscilloscope model and whether or not you have the SDA
III software option loaded on your oscilloscope.
1.

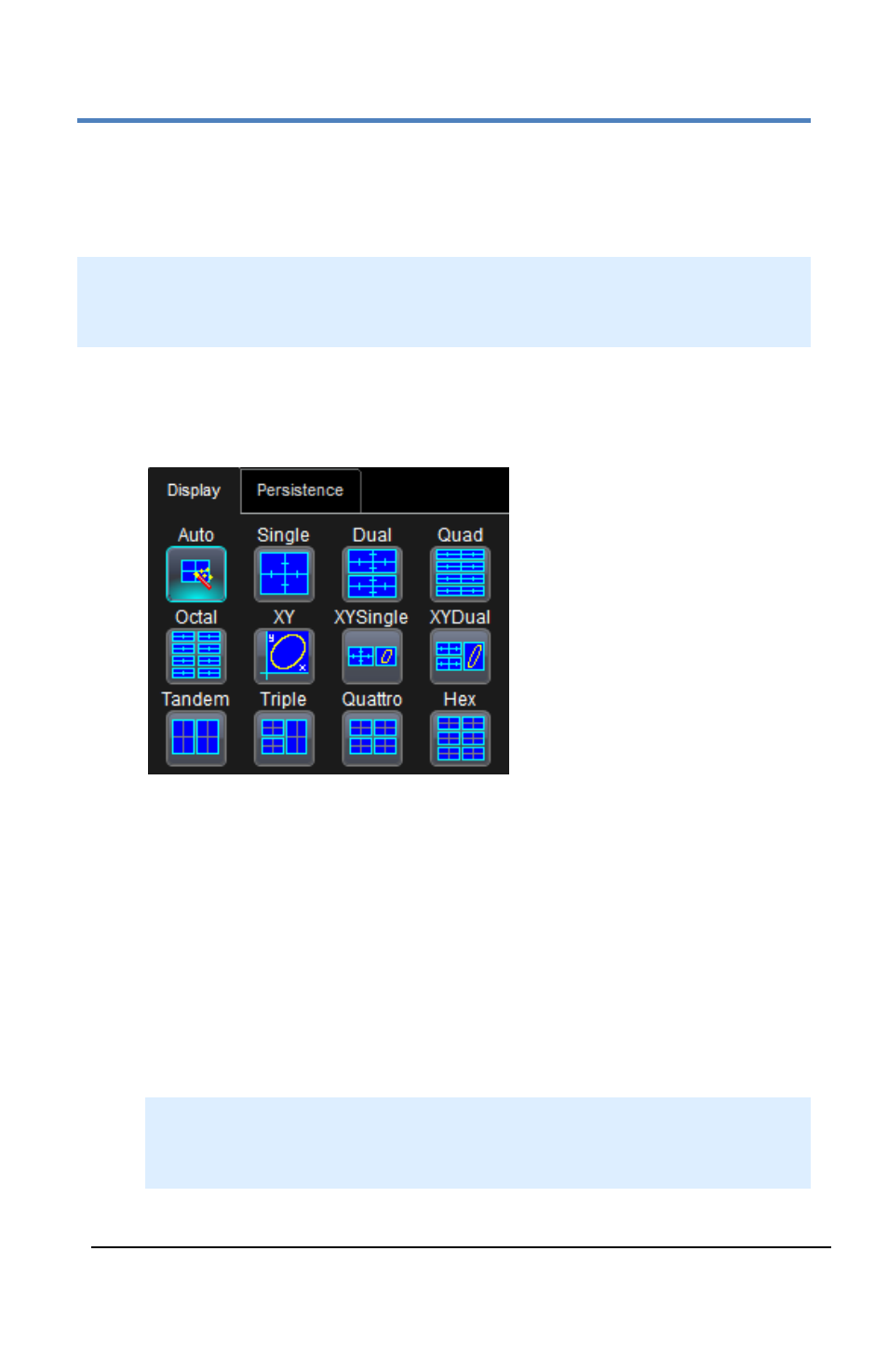

From the menu bar, touch Display → Display Setup... .
2.
Touch one of the display types.
Auto Grid automatically adds or deletes grids as you select more
or fewer waveforms to display.
If many display setups are available for your oscilloscope, choose
the Grid option to display the Select Grid pop-up.
3.
Touch inside the Grid Intensity data entry control and provide a
value from 0 to 100.
4.
Touch the Grid on top checkbox if you want to superimpose the
grid over the waveform.
NOTE: Depending on the grid intensity, some of your waveforms
may be hidden from view when the grid is placed on top. To
undo, simply uncheck Grid on top.
