LabMaster 10 Zi Oscilloscopes

26

LM10Zi-GSM-E Rev A

Repeat the previous steps for every additional Acquisition Module in
your system.

PLEASE NOTE THE FOLLOWING:

PCIe 4 Lane Cable plugs are keyed with a single groove along one
wide side
of the plug. The plug must be inserted into the socket
with the groove aligned properly.

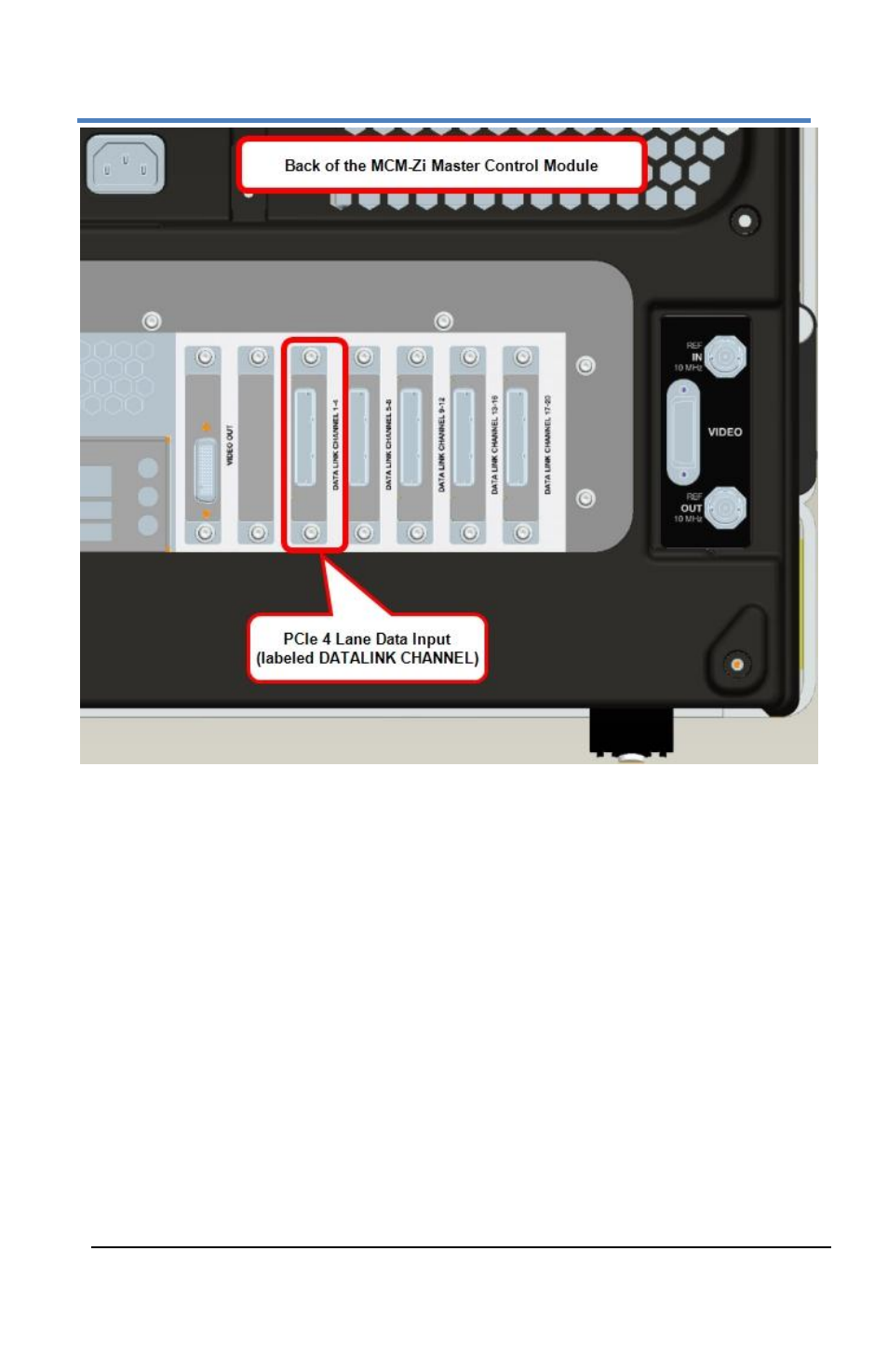

Be sure to connect your Acquisition Modules to the correct
channel groupings on the Master Control Module; First
Acquisition Module is connected into DATALINK CHANNEL 1-4,
second into the DATALINK CHANNEL 5-9 input,
third into the DATALINK CHANNEL 9-12 input,
fourth into the DATALINK CHANNEL 13-16 input,
and last into the DATALINK CHANNEL 17-20 input.
