1. Choose TimeBase → Horizontal Setup... to access the Timebase
dialog.
2. If you have more than one Acquisition module, touch the DBI tab
to show the DBI dialog. Otherwise, use the Digital Bandwidth
Interleave area to the far right of the Timebase dialog.

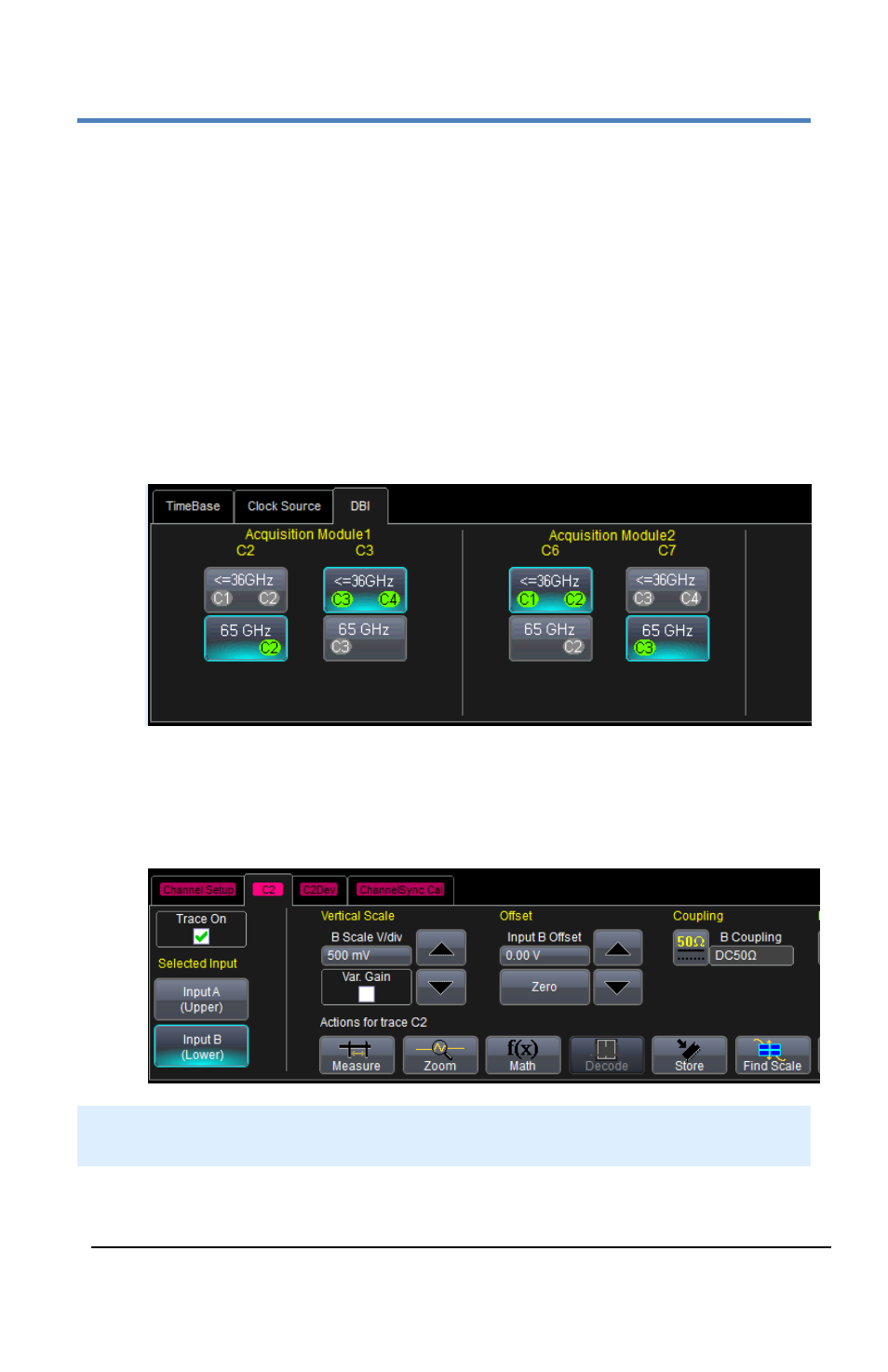

3. Select the inputs to combine by touching the corresponding
higher bandwidth button beneath the pair (in the image below,
36 GHz C1 and C2 are combined into one 65 GHz C2). The active
input is highlighted. Combinations can be made in one or all
modules.
4. The respective channels are combined into higher bandwidth
channels, labeled "Input B".
5. On the Channel setup dialog, select Input B.
NOTE: Use Channel 4 for high-speed serial triggering, even in cases
where the oscilloscope is operating in 50, 60, or 65 GHz modes.
