LabMaster 10 Zi Oscilloscopes

202

LM10Zi-GSM-E Rev A

Miscellaneous

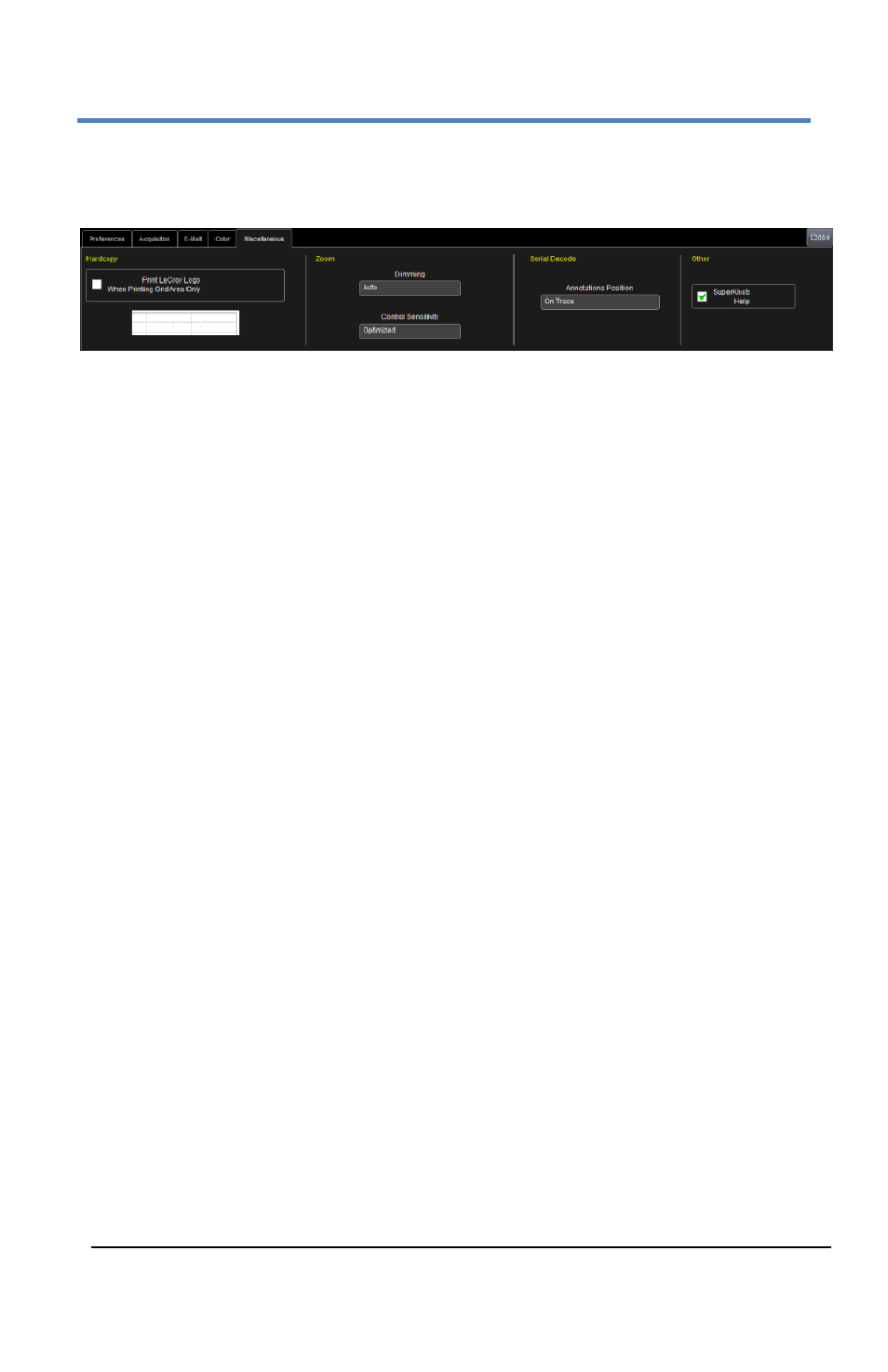

Other Preferences are set on the Miscellaneous dialog.

H

ARDCOPY

O

UTPUT

Add the Teledyne LeCroy Logo to hardcopies of your grid displays by
checking Print Teledyne LeCroy Logo When Printing Grid Area Only in
the Hardcopy section of the dialog. Use the grid area below the
checkbox to select where to place the logo. Clear the checkbox to turn
off this feature.

Z

OOM

Control the darkening/shading of waveform areas surrounding a Zoom
trace by using the Dimming control to select:

On - surrounding areas are dimmed

Off - surrounding areas remain at the same intensity as the zoom

Auto

Determine how values are displayed by using Control Sensitivity to
choosing:

Legacy

Optimized
