LabMaster 10 Zi Oscilloscopes
152
LM10Zi-GSM-E Rev A

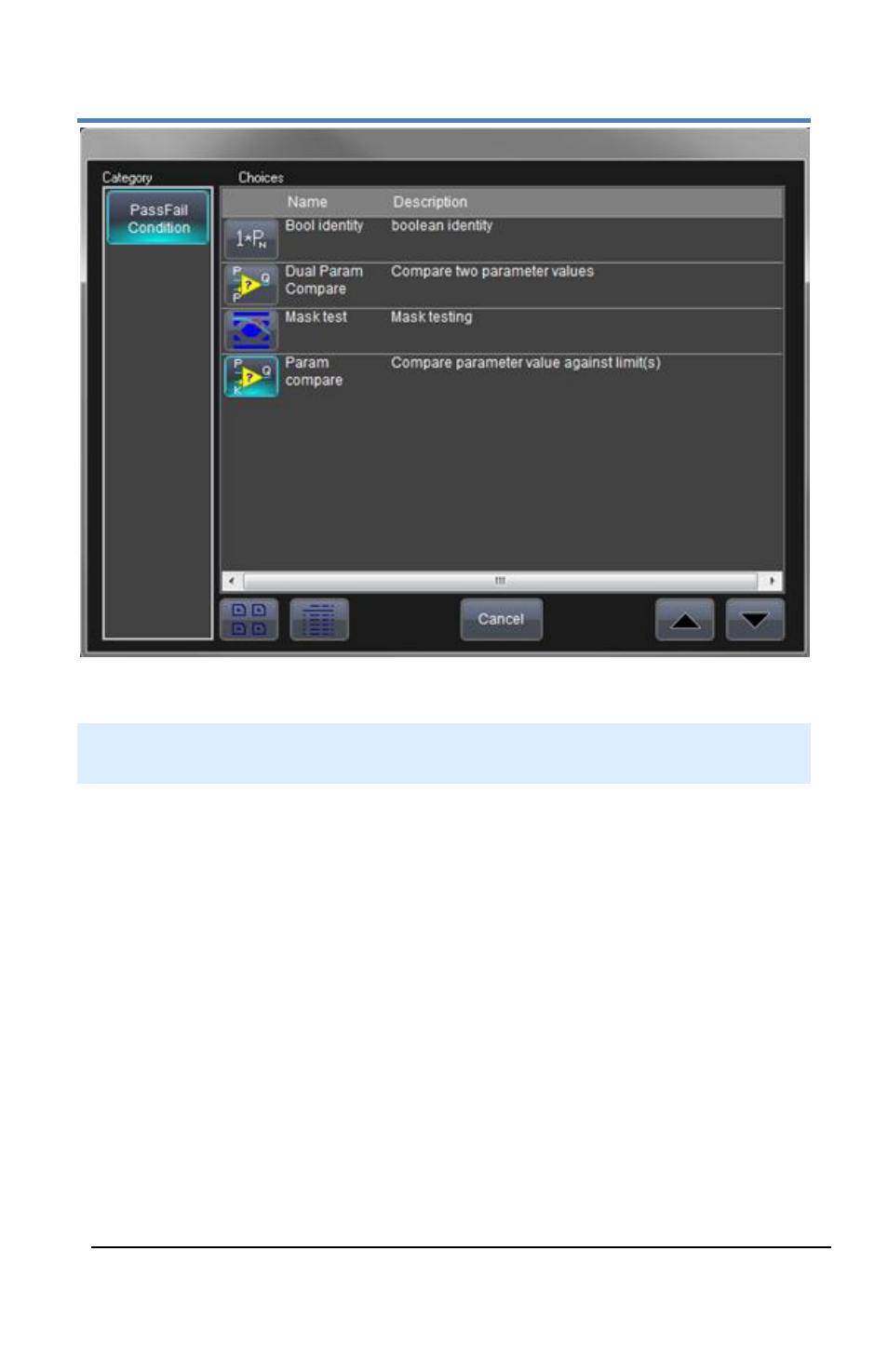

Select the desired condition.
NOTE: Right-hand dialogs on the Qx dialog vary based on the Pass/Fail
condition selected.
C
ONDITION
-B
ASED
R
IGHT
-H
AND
D
IALOGS
Boolean Identity
This condition simply passes through the input values as the desired
result.
Param and Dual Param Compare
Using the Param Compare conditions, each Pass/Fail input (Qx) can
compare a different parameter measurement to a user-defined limit (or
statistical range) under a different condition.
Comparing a Single Parameter
1.
With the ParamCompare condition selected on a Qx dialog, touch
inside the Compare Values field and select All or Any from the
pop-up menu.
