LabMaster 10 Zi Oscilloscopes

200

LM10Zi-GSM-E Rev A

E-Mail

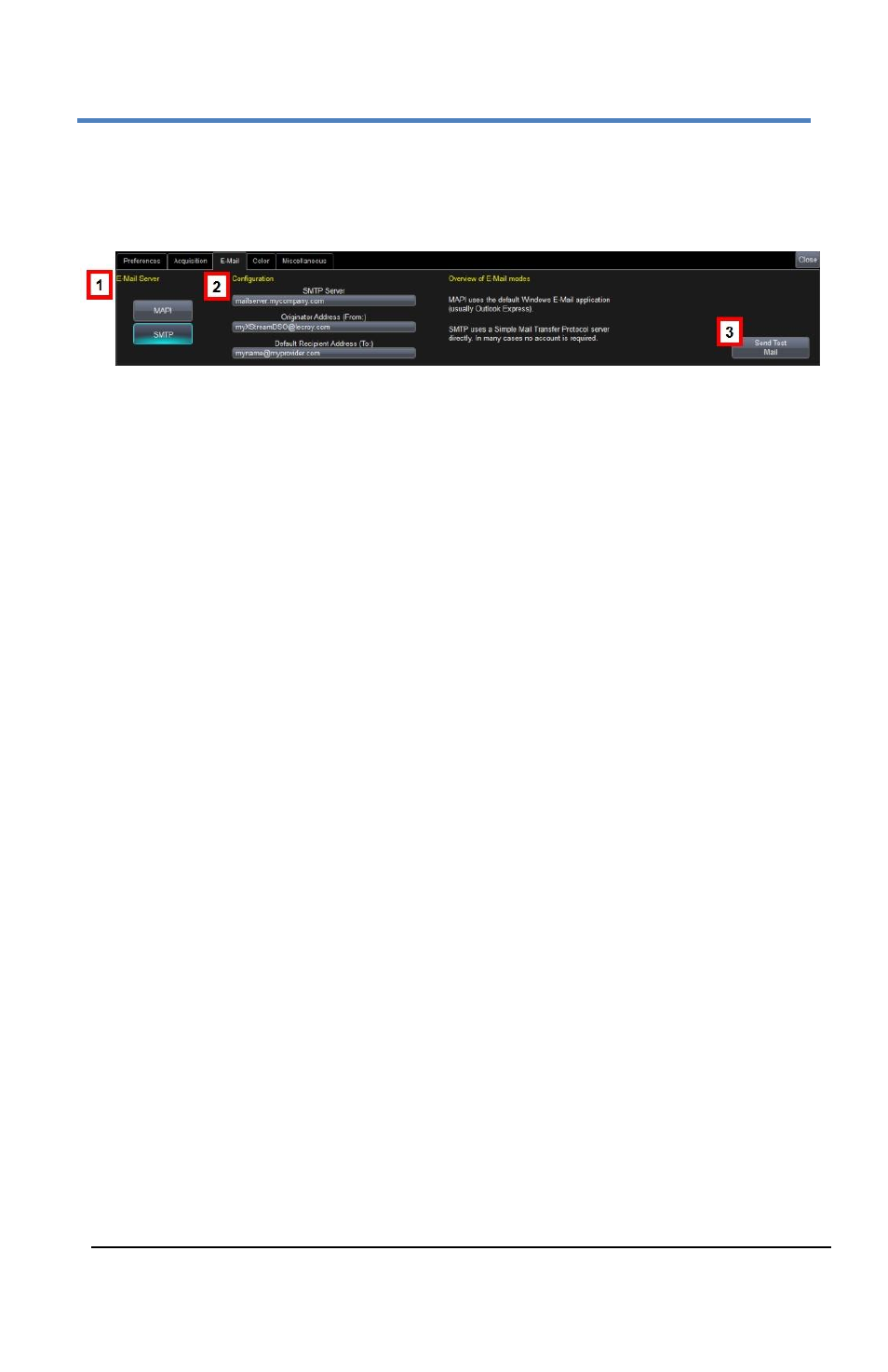

Use the Utilities E-mail dialog to set up e-mail on the oscilloscope.

E-Mail Server- Choose a server protocol from the following options:

MAPI (Messaging Application Programming Interface) is the
Microsoft interface specification that allows different messaging
and workgroup applications (including e-mail, voice mail, and fax)
to work through a single client, such as the Exchange client. MAPI
uses the default Windows e-mail application.

SMTP (Simple Mail Transfer Protocol) is a TCP/IP protocol for
sending messages from one computer to another through a
network. This protocol is used on the Internet to route e-mail. In
many cases no account is needed.

Configuration - Provide values based on your selected server protocol:

If you chose MAPI, touch inside the Originator Address (From:)
data entry field and provide the instrument's e-mail address.
Then touch inside the Default Recipient Address (To:) data entry
field and provide the recipient's e-mail address.

If you chose SMTP, touch inside the SMTP Server data entry field
and provide the name of your server. Touch inside the Originator
Address (From:)
data entry field and provide the instrument's e-
mail address. Then touch inside the Default Recipient Address
(To:)
data entry field and provide the recipient's e-mail address.

Send Test Mail - Click this button to send a confirmation message to
ensure proper e-mail configuration.
