Labmaster setup, Connecting labmaster components, Pcie 1 lane cable sync connection(s) – Teledyne LeCroy LabMaster 10Zi Getting Started Manual User Manual
Page 28
Getting Started Manual
LM10Zi-GSM-E Rev A
21
LabMaster Setup
Connecting LabMaster Components
LabMaster components are connected by PCIe 1 and 4 Lane, SMA 72",
and Power Cables. Use the following procedures to properly connect all
parts of your LabMaster.
PCIe 1 Lane Cable SYNC Connection(s)
Connect each PCIe 1 Lane Control Input on the back of your 10-xxZi
Acquisition Modules to a PCIe 1 Lane Output on the MCM-Zi Master
Control Module using the PCIe 1 Lane cable(s) provided.

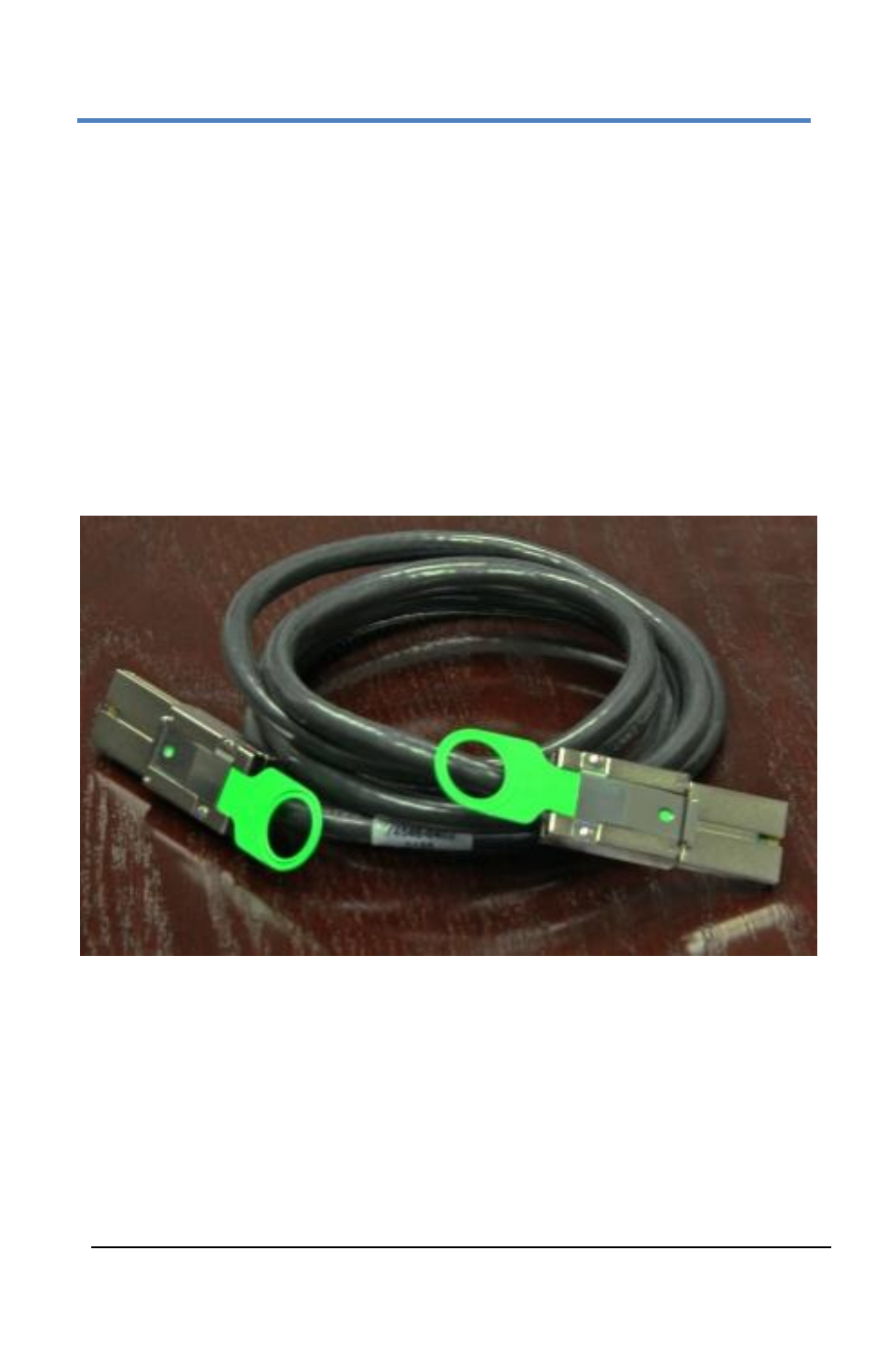

PCIe 1 Lane Cable
On the back of the Master Control Module, plug one end of the PCIe 1
Lane cable into the PCIe 1 Lane Channel Sync Output (labeled SYNC).
