LabMaster 10 Zi Oscilloscopes

LM10Zi-GSM-E Rev A

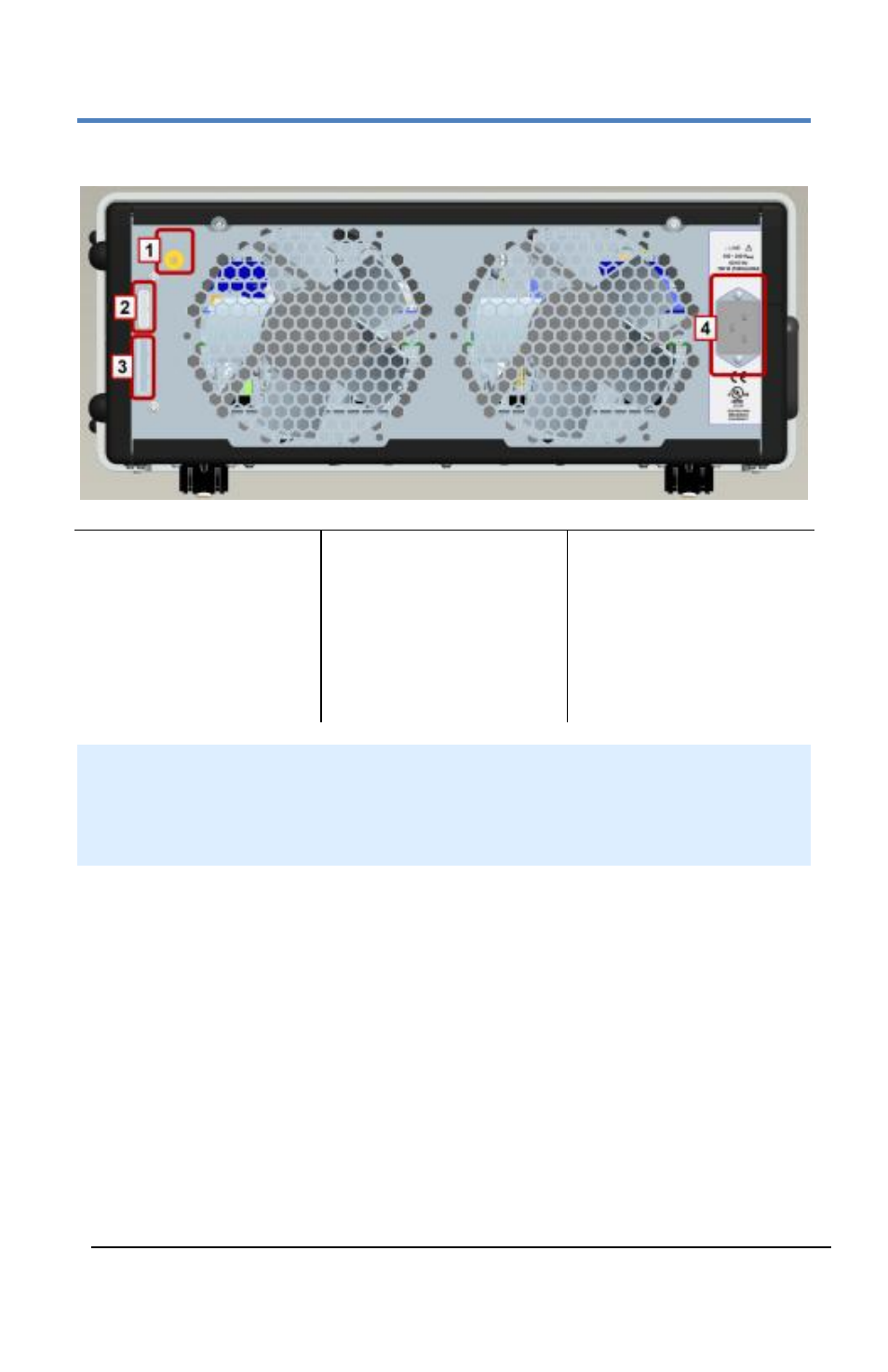

Back of 10-xxZi Acquisition Module

Number and Description

1. ChannelSync

SMA 10 GHz
Clock Input

2. ChannelSync

PCIe 1 Lane
Control Input

3. PCIe 4 Lane

Data Output

4. AC Power Inlet

NOTE: Only Back of MCM-Zi Master Control Module (on page 13)has 10
MHz Reference Clock Input/Output connections. 10 MHz Reference
Clock Inputs are specifically intended for synchronization with other
instruments; not between Master and Acquisition modules.
