PLEASE NOTE THE FOLLOWING:
The bottom cursor knob adjusts relative cursors. It does not work
with absolute cursor types.
Previously setup cursor positions are preserved for subsequent
displays. Changing cursor positions or measurement modes are
always available using touch screen or front panel control
methods as previously mentioned.

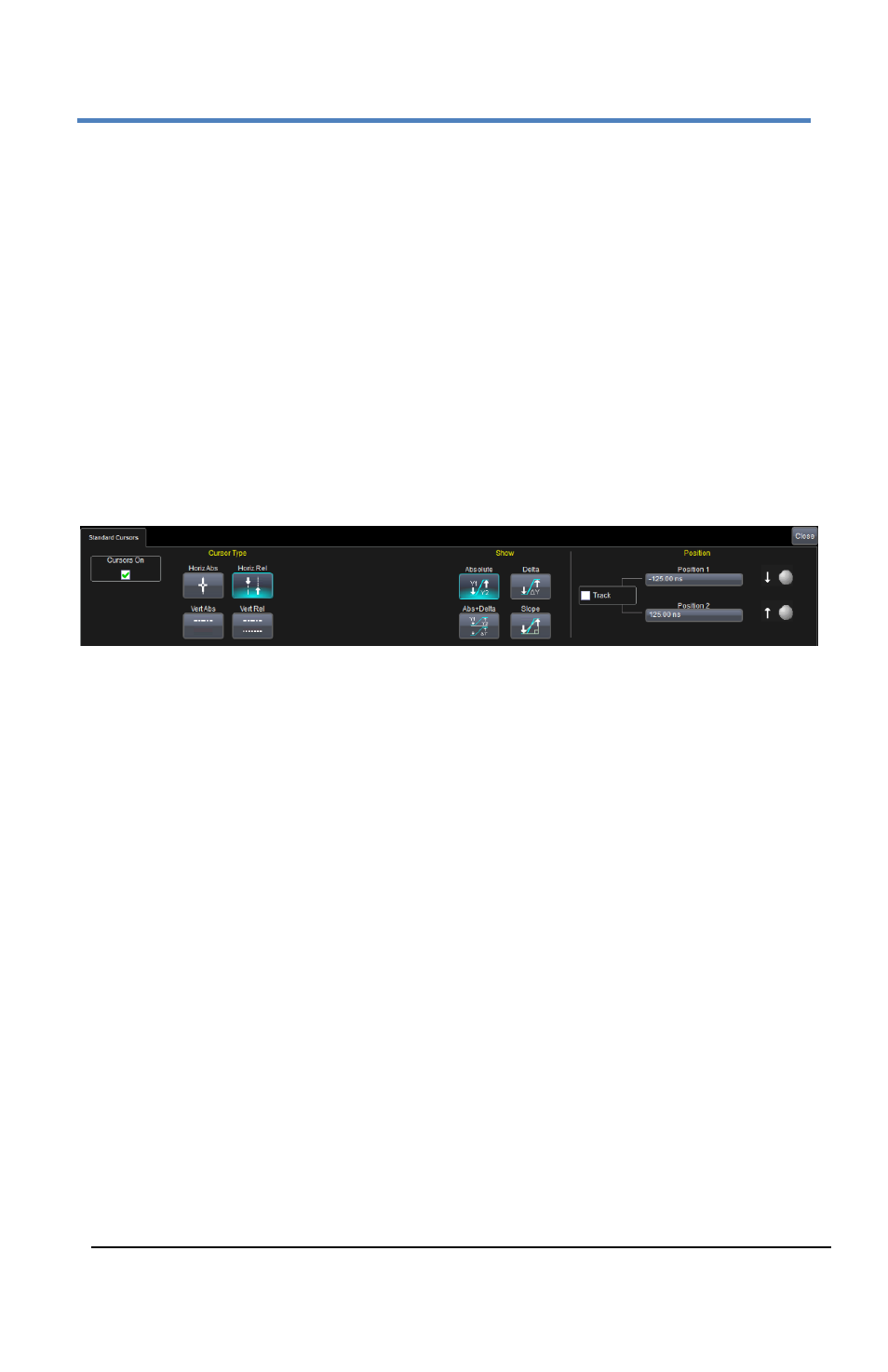

The Cursors Dialog
After using one of the above methods to access cursors, the Cursors
dialog is displayed.
C
URSORS
O
N
Mark or unmark the Cursors On checkbox to turn cursors on and off as
desired.
C
URSOR
T
YPES
Select your Cursor Type from Horizontal Abs, Horizontal Rel, Vertical
Abs, and Vertical Rel options shown. Subsequent controls on the dialog
are shown, hidden, enabled, or disabled based on the Cursor Type
selection made.
Horizontal Abs - Provides a single, dashed, vertical line and cross-
hair marking for the specific cursor location. None of the Show
controls are provided; however, the Position 1 control is enabled
on the right of the dialog.
Horizontal Rel - Provides two, dashed, vertical lines and cross-
hair markings for the specific cursor locations. Since there are
two cursors involved, controls for Show along with Track, and
Position 1 and 2 are available on the dialog.
