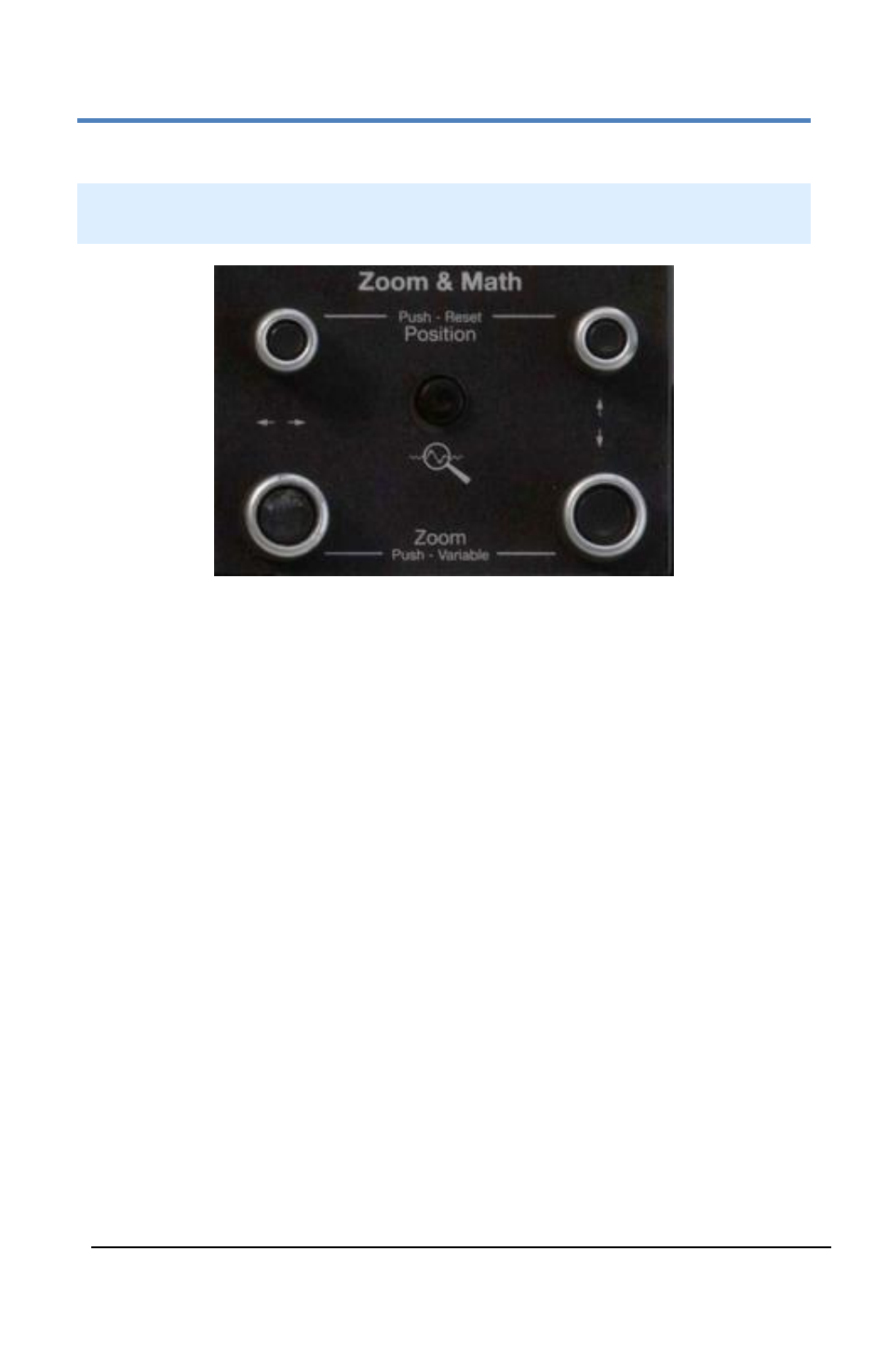

Zoom and Math Front Panel Controls
Note: Zoom and Math front panel controls correspond with screen
menu selection: Math → Zoom Setup....

Horizontal Position - Resets the horizontal zoom position to zero.
Turn to change the horizontal position of the selected math or
zoom trace.

Horizontal Ratio - Toggles between fixed and variable horizontal
zoom ratio adjustment. Turn to change the horizontal zoom ratio
of the selected math trace.

Quick Zoom - Automatically displays magnified views of up to
four signal inputs on multiple grids. With four input signals, the
signals are displayed along with four zoom traces, each on its
own grid. Pressing this button also turns off all other traces.

Vertical Position - Resets the vertical zoom position to zero. Turn
to change the vertical position of the selected math or zoom
trace.

Vertical Ratio - Toggles between fixed and variable vertical zoom
ratio adjustment. Turn to change the vertical zoom ratio of the
selected math trace.
