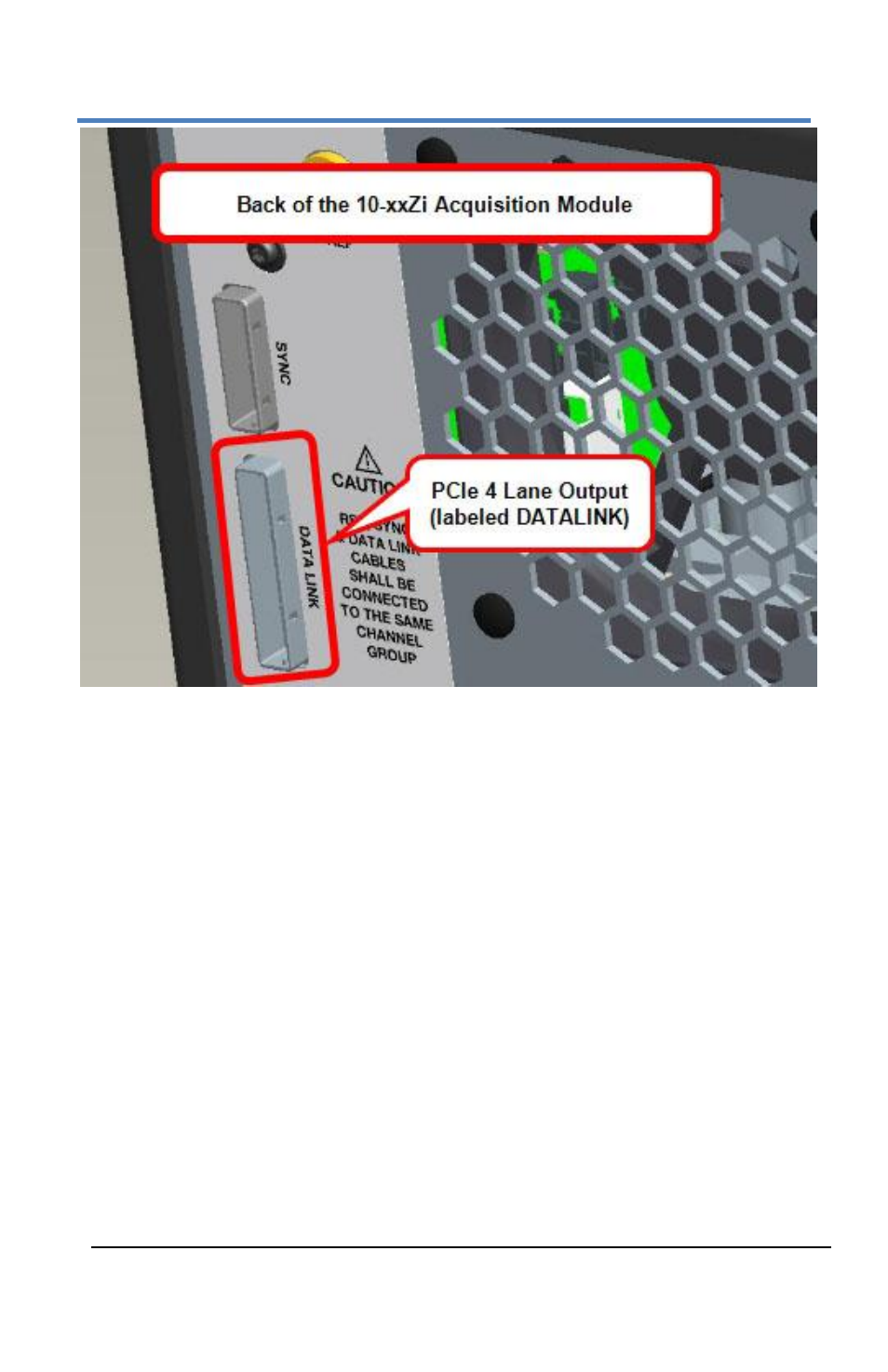

Now, on the back of the Master Control Module, connect the other end
of the same PCIe 4 Lane cable into the corresponding PCIe 4 Lane Data
Input (labeled DATALINK CHANNEL).
