Getting Started Manual

LM10Zi-GSM-E Rev A

179

saved. The file name is assigned automatically and is shown
under the control.

4. Touch the Save Now! button.

Recalling Waveforms

NOTE: Only .trc files saved in binary format can be recalled into the
oscilloscope.

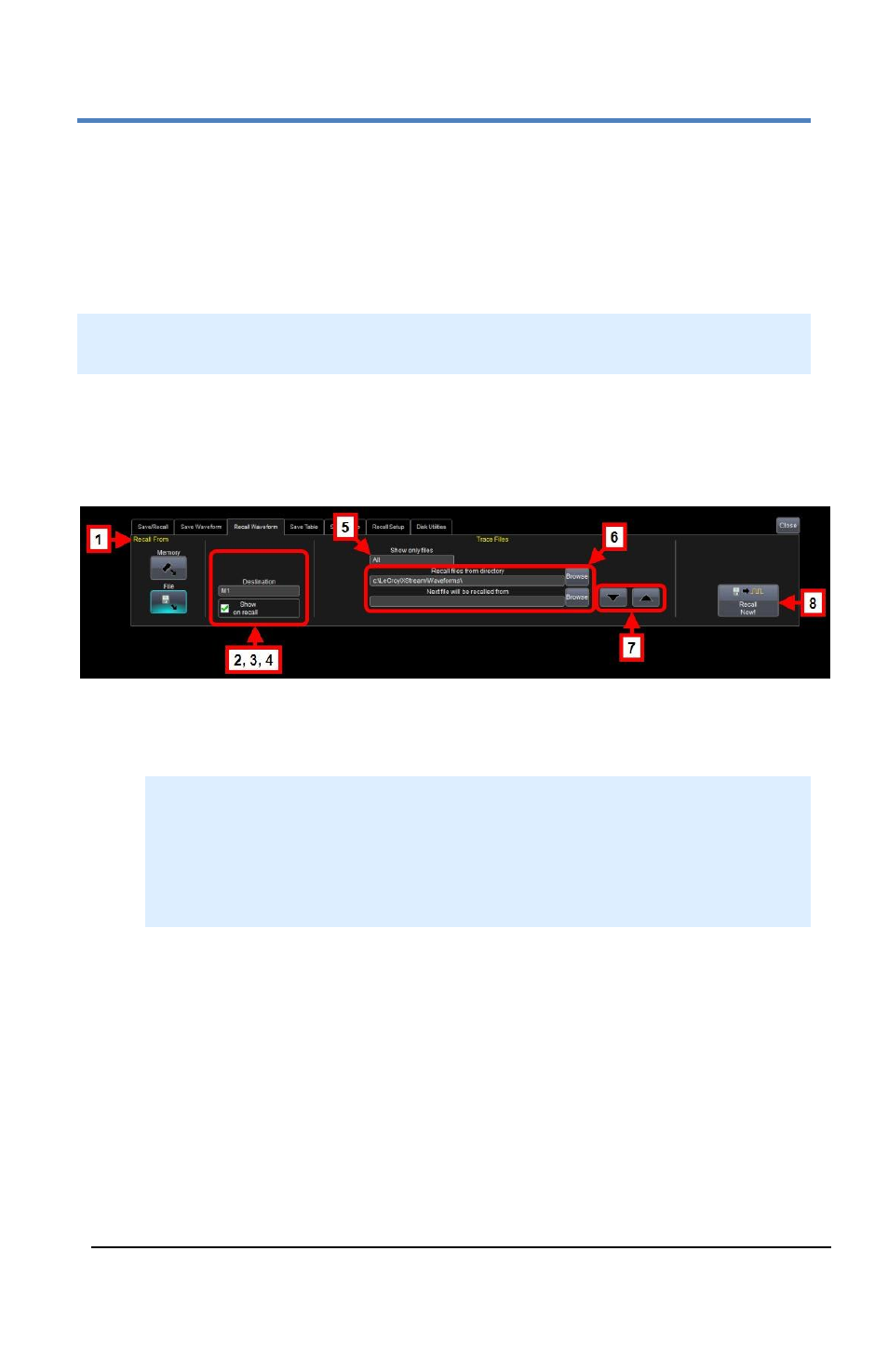

Access the Recall Waveform dialog by either selecting File → Recall
Waveform
from the menu bar or clicking the Recall Waveform button
on the main Save/Recall dialog.

1.

Select either Memory or File by touching either respective
button on the Recall From portion of the dialog.

Note: When Memory is selected, only Source, Destination, and
Show on recall controls are shown on the Recall Waveform
dialog. When File is selected, many more controls are available.
Regardless, the controls are used as explained in the following
steps.

2.

If recalling from Memory, touch inside the Source control and
select a source stored in non-volatile RAM (M1–M4) from the
Select Source pop-up.

3.

Touch inside the Destination control and select a location for
storage (memory or file) from M1 to M4.

4.

Show on Recall - Mark this checkbox to have the memory trace
shown on the grid display after recalling the waveform.
