LabMaster 10 Zi Oscilloscopes

24

LM10Zi-GSM-E Rev A

PCIe 4 Lane DATALINK Connection(s)

Continue making the PCI Express connections by cabling the PCIe 4 Lane
Data Output
on the back of each 10-xxZi Acquisition Module to the PCIe
4 Lane Data Inputs
on the back of your MCM-Zi Master Control Module
using PCIe 4 Lane cable(s) provided.

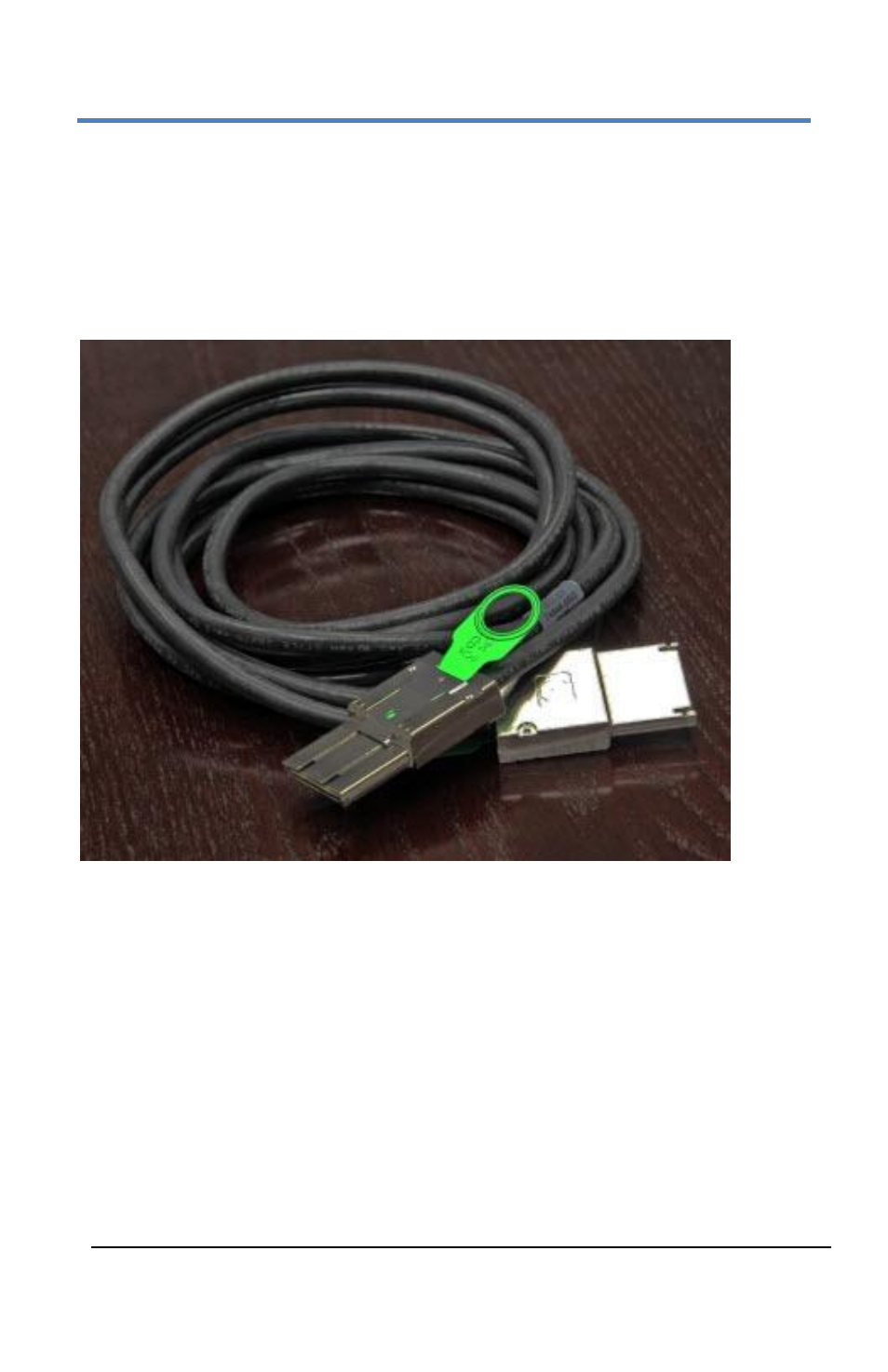

PCIe 4 Lane Cable

On the back of the Acquisition Module, connect one end of a PCIe 4 lane
cable from the PCIe 4 Lane Data Output (labeled DATALINK).
