LabMaster 10 Zi Oscilloscopes
94
LM10Zi-GSM-E Rev A
3.

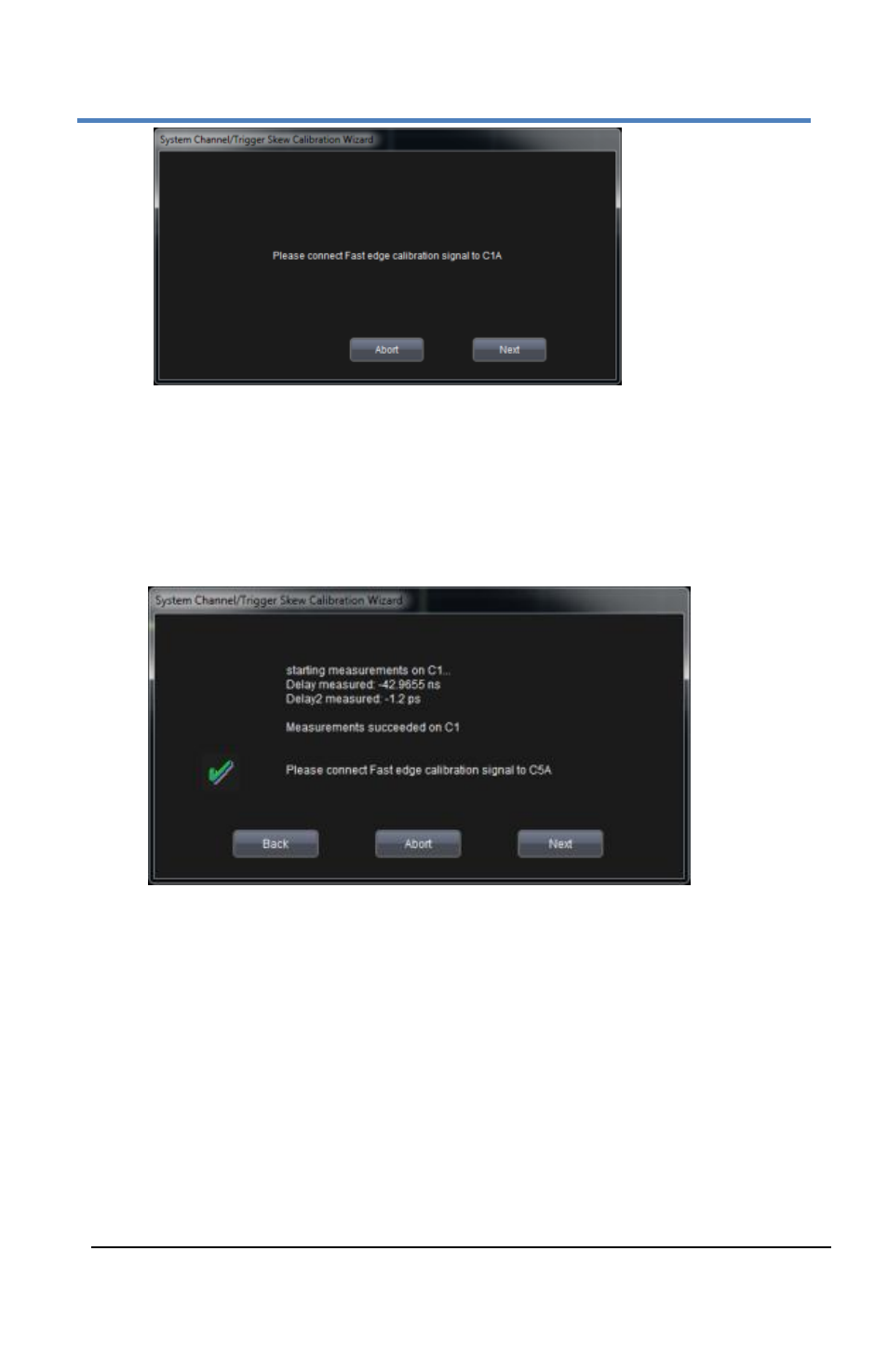

Connect the Fast Edge output on the front of the Master Control
Module to Channel 1, then on the Wizard touch Next.
4.
When prompted, connected the Fast Edge output (using the
same cable as used to connect to Channel 1) to Channel 5, then
touch Next again.
5.
Continue following on-screen prompts for as many additional
modules there are.
6.
When completed, touch Finish to apply and store all corrections
to the calibration folder.
