LabMaster 10 Zi Oscilloscopes
18 LM10Zi-GSM-E Rev A

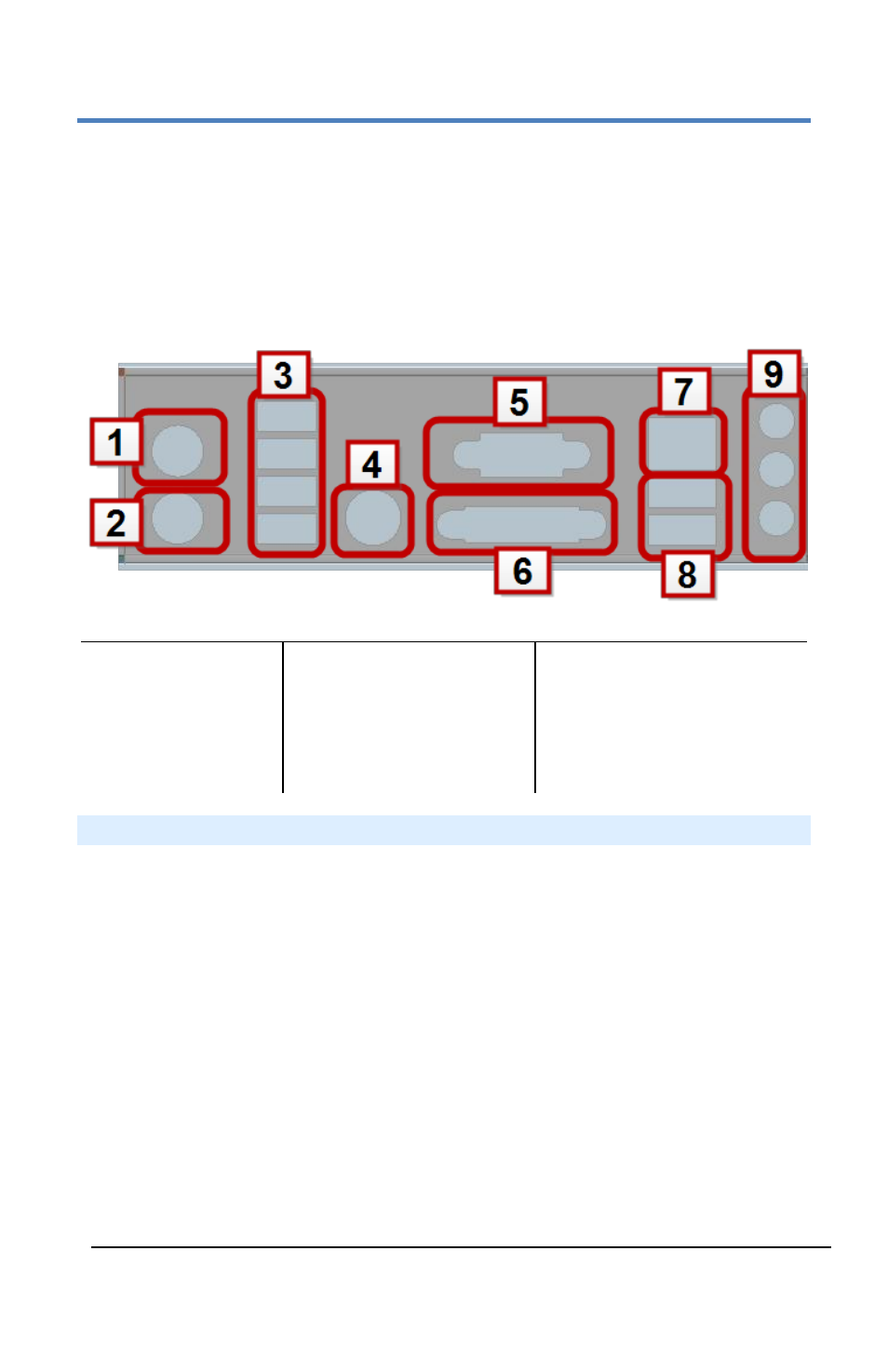

The I/O Panel
The available connections on I/O panels are the same for all LabMaster
10 Zi configurations. I/O panels are located on the back of the Master
Control Module. See Back of MCM-Zi Master Control Module (on page
13) for more information.
Number and Description
1. Mouse
2. Keyboard
3. Host USB Ports
4. ?
5. 15-pin VGA/WXGA
Video Output
6. DVI-D Video Output
7. Ethernet port (LAN)
8. USBTMC Ports
9. Audio Input/Output
(Speaker, Mic, Line-In )
NOTE: Contact a system administrator when connecting to a LAN.
