Restoring Default Settings

To reset the settings to the default configuration, press the front panel
Default Setup button or the Recall Setup dialog Recall Default button.

Following are some of the default settings for your oscilloscope:

Channels 1 and 2 are turned on at 50 mV/div, 0V offset, linear
interpolation

All other measurements are cleared for Math, Reference
Waveforms, and Channels

Trigger is set to Channel 1 with an Auto positive edge, DC
coupled, and with a 0V level

The Timebase set to 50 ns/div, 10ks, 20 GS/s, and with zero delay

Smart memory is set to Set max memory with 100ks selected

The Cursors are turned off

The Grids are set to AutoGrid

Saving and Recalling Waveforms

Saving Waveforms

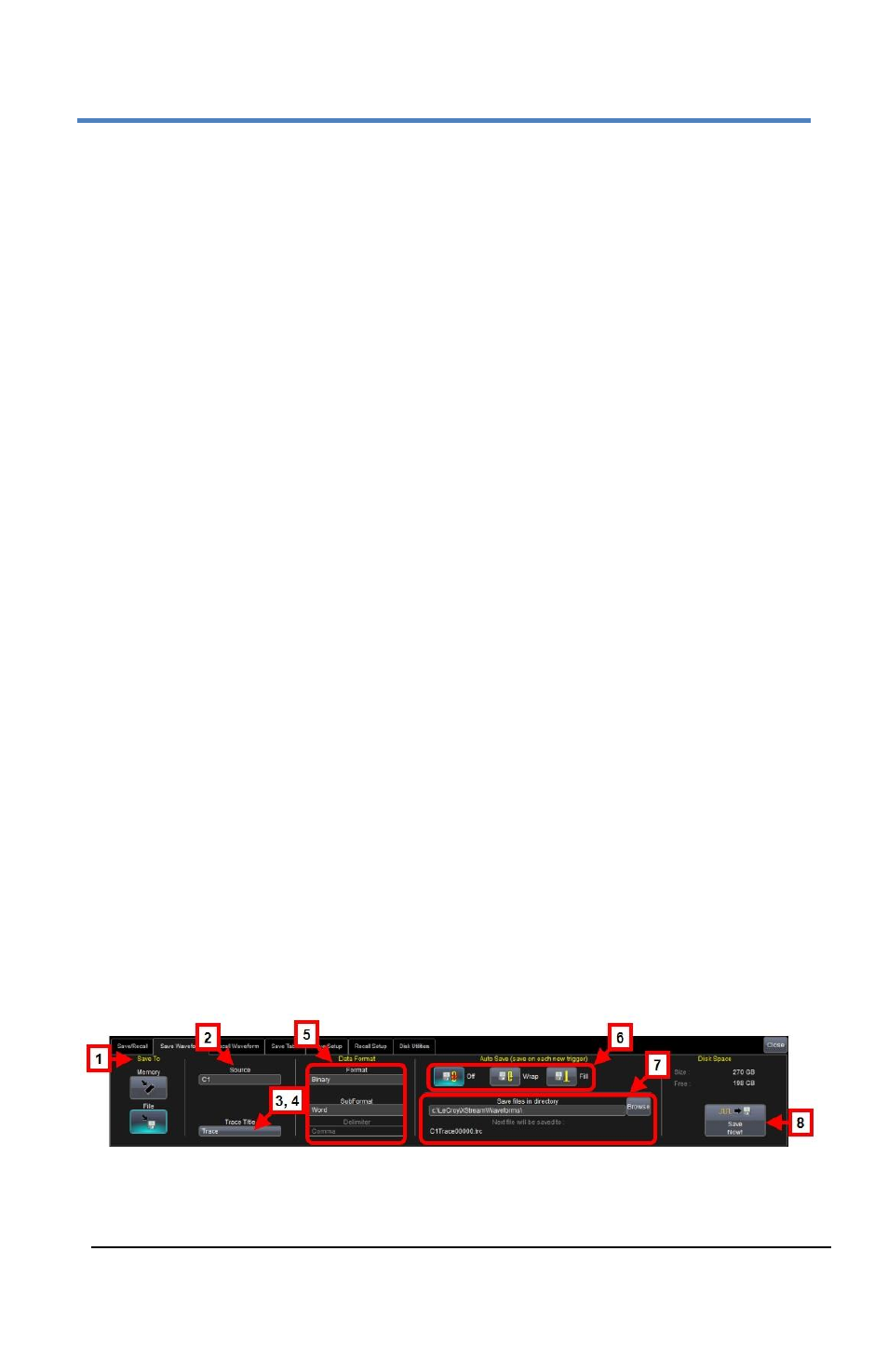

The Save Waveform dialog is used to save displayed waveforms to
either a memory trace or to text or binary file formats.

Access the Save Waveform dialog by either selecting File → Save
Waveform
from the menu bar or clicking the Save Waveform button on
the main Save/Recall dialog.

Use the sections of this Save Waveform dialog, which correspond with
the following explanations, to properly save your waveform(s).
