C

H A P T E R

T

H R E E

:

Control by LAN

WM-RCM-E Rev D

ISSUED: February 2005

41

1. Ensure that the ActiveDSO files from the CD-ROM are installed on the PC.

2. Verify that the PC and instrument are properly connected to the Ethernet.

3. Open a new blank presentation in PowerPoint.

Note: This example assumes that PowerPoint 2002 is being used. Earlier (or Later) versions may not

behave in the same manner.

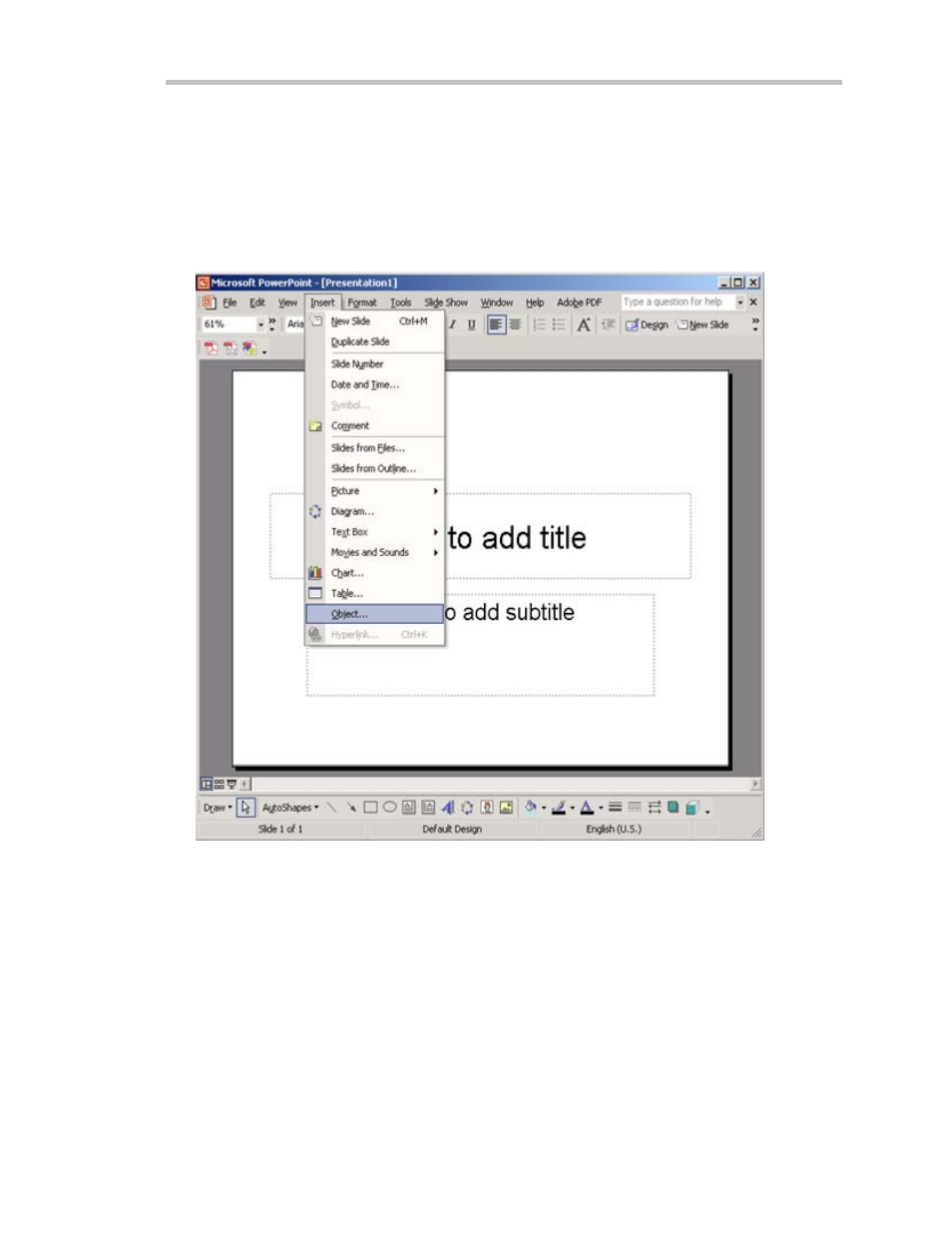

4. Select Insert, then Object, as shown here:
