Animation ʻVirtualʼ Audio Trigger Input Setup
(Sd-50/8, and Sd-50/40)
This is NOT the port which triggers animation. This is the port that is used to trigger audio func-
tions from the animation data. Animation is normally triggered via the ʻ J8 ʼ port, which is set up when
AutoDownloading the shows from PC•MACs, or the ¼ J6 input, which is set up using the ʻMp3
Config.exeʼ programʼs ʻ Input Setup ʼ tab.
The Sd-50/8 and Sd-50/40 have eight ‘virtual’ Show Control outputs which can be used to control the .Mp3/.wav
player. In most cases when configuring a Sd-50/8 and Sd-50/40, you will use these ‘virtual’ show control outputs to control
the .Mp3/.wav player. The ‘
" J6 ’ inputs will remain unused.

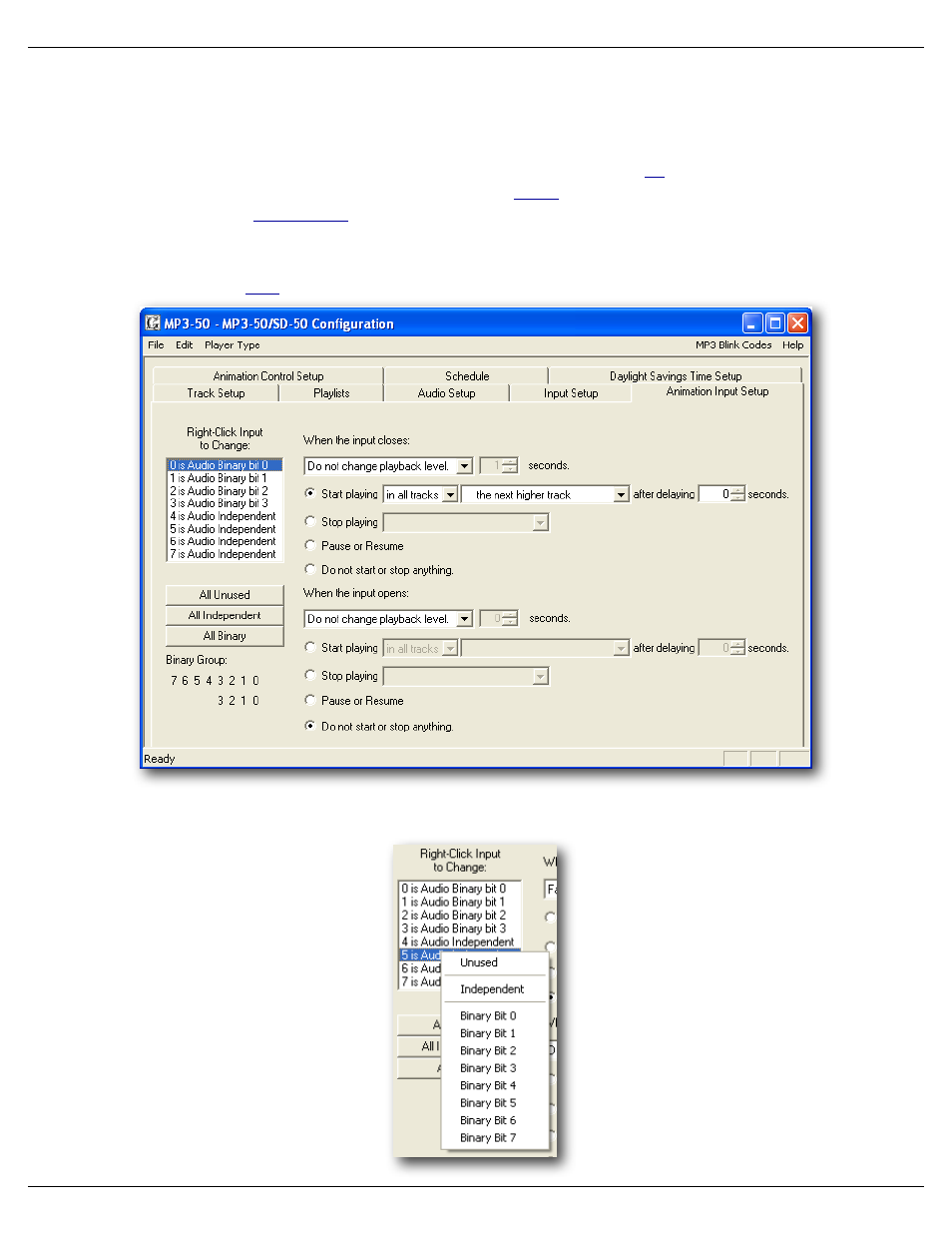

You can set any of the eight inputs as unused, an independent control, or part of a binary address. To set all the inputs
to any of these modes, just use the ‘All Unused’, ‘All Independent’ or ‘All Binary’ buttons. To set the inputs independently,
‘right’+click on the input you want to configure:
