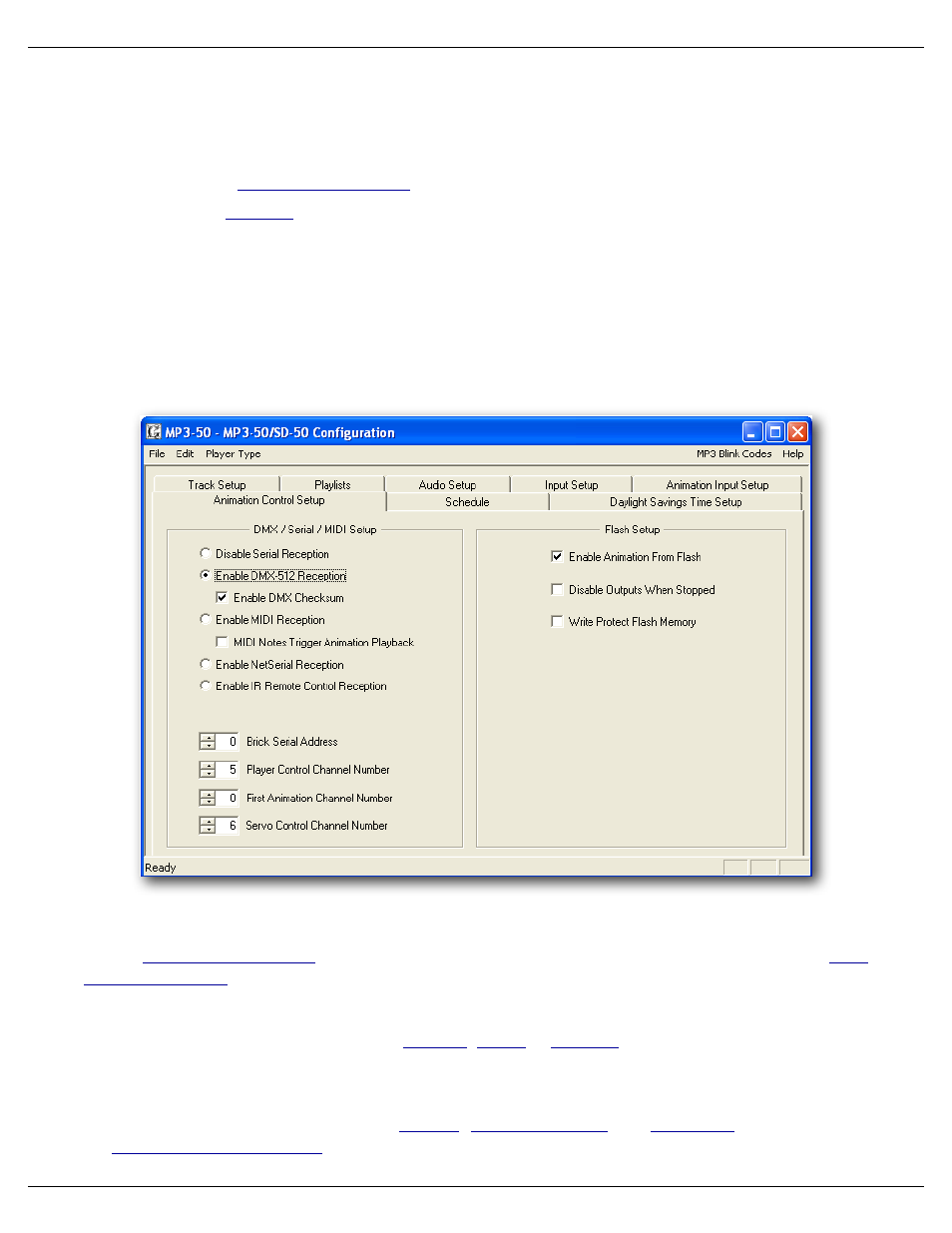

Animation Control Setup

(Sd-50/8, and Sd-50/40)

This window is used to setup:

1) Modes for the

DMX-512/MIDI serial port

.

2) RS-232 and

Net Serial

Port Address.

3) Show Control Channel used for the MPU Control Channel.

4) First Show Control channel sent out the Show Control Outputs. The next four consecutive show

control channels will be sent to Show Control channels one through four.

5) Animation channel which will be sent to the first of the eight possible ServoMotor PWM outputs.

The next seven consecutive show control channels will be sent to the next seven ServoMotor PWM
outputs, if they are used.

6) Settings for the Show Control Flash Memory.

DMX/MIDI/Serial Port Setup

The

DMX-512/MIDI serial port

can be set up to receive data in a variety of data formats, or disabled. The

DMX-

512 serial port output

will always transmit DMX-512, no matter what type of data is being received.

a)! Disable Serial Reception

Use this setting to completely disable

DMX-512

,

MIDI in

or

Net Serial

data reception through Sd-50/8

or Sd-50/40 the serial port.

b)! Enable DMX-512 Reception

!

!

Turning this mode on disables

MIDI in

,

IR Trigger Mode

and

Net Serial

input on the

DMX-512/MIDI serial port

.

Gilderfluke & Co.• 205 South Flower Street • Burbank, California 91502 • 818/840-9484 • 800/776-5972 • fax 818/840-9485

Sd-50/xx Manual / October 29, 2012 2:29 PM / page 101 of 120
