DVS 510 Series • HTML Configuration and Control
93
Fig_Test Patterns
Alt Pixels
4x4 Crosshatch
Crosshatch
Grayscale
Color Bars
Ramp
Crop
1.78 Aspect
1.85 Aspect
2.35 Aspect
1.33 Aspect
White Field
Blue Mode

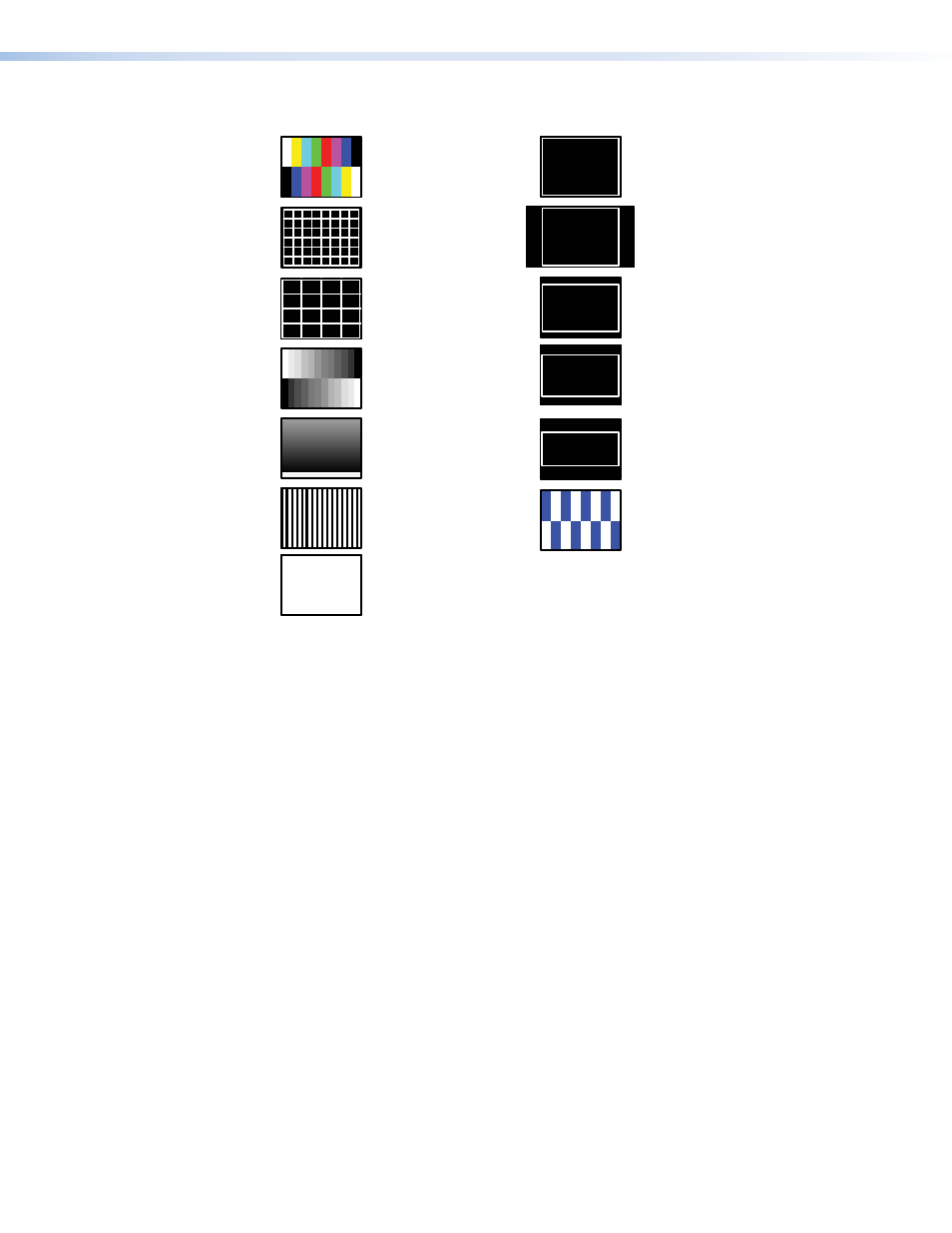

Figure 44.
Test Patterns on the DVS 510
The default is
Off
(no test pattern). (See
” on page 32 for more
information on using test patterns.)
•
Auto
Memories
: Select
On
or
Off
to enable or disable auto memories. When auto
memories are activated, the DVS stores size, position, and picture settings based on
the incoming signal from the connected input. When the same input signal is detected
again, these image settings are recalled from memory and applied.
•
Switch
Effect
: Select the effect that is displayed when inputs are switched.
Cut
immediately replaces the image from the current input with the image from the new
input;
Fade
causes the current input to fade to black while the new input fades in
(default).
•
Aspect
Ratio
: Select
Fill
(the input signal at each rate fills the entire output raster),
or
Follow
(the input signal at each rate is displayed with its native aspect ratio [default
setting]). (See “
” on page 31 for more information about these
fill modes.)
