DVS 510 Series • Operation

40

MAX

MID

MIN

VOLUME

MAX

MID

MIN

VOLUME

MAX

MID

MIN

VOLUME

MAX

MID

MIN

VOLUME

MAX

MID

MIN

VOLUME

MIN LED flashes when

volume level is at

0% or audio muted.

MIN LED on solid when

volume level is at

1% or higher.

MID LED on solid when

volume level is at

50% or higher.

MAX LED on solid when

volume level is at

80% or higher.

MAX LED flashes when

volume level is at

100% (maximum).

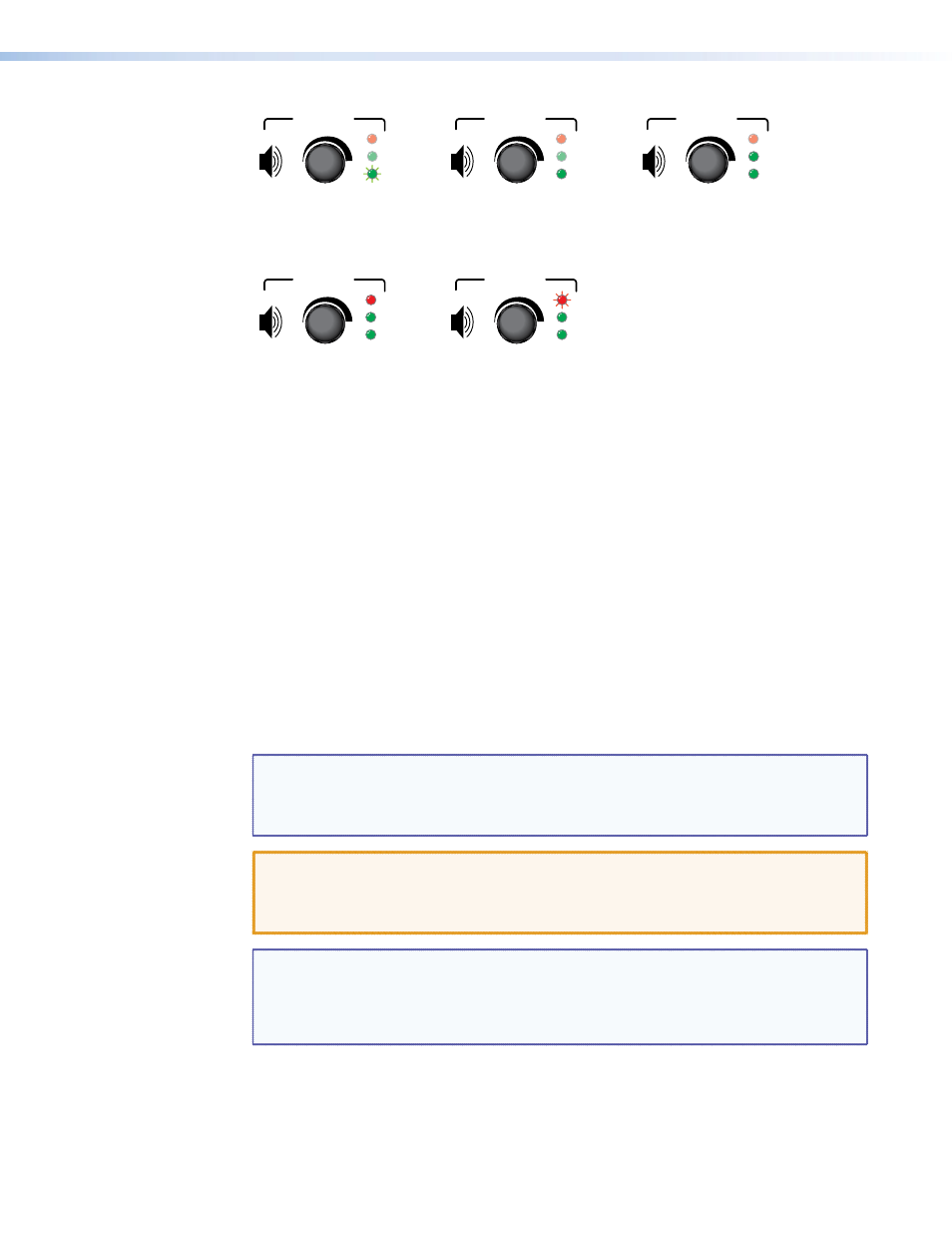

Figure 23.

Volume Indicator LEDs on the Front Panel

Audio or Video Breakaway

To switch the audio or the video separately away from the current input to another input
(audio or video breakaway), enter an audio or a video input selection SIS command (see
the

Input Selection

commands on page 55 in the Command and Response Table for SIS

Commands). When the audio is switched from one input to another (audio breakaway), the
audio switch effect is always a fade, regardless of the selected video effect. During audio or
video breakaway, the audio input button lights red and the video button lights green. Audio
or video breakaway is not available while the DVS is in PIP mode.

Resetting

The rear panel has a recessed Reset button that initiates various levels of resets. To select
different reset levels, use a pointed stylus or small Philips screwdriver to press and hold the
button while the DVS is running or press and hold the button while applying power to the
scaler.

NOTE: You can also reset the unit to factory defaults using SIS commands (see the

Resets

commands on page 66 in the Command and Response Table for SIS

Commands) or from the front panel (see “

Reset to Factory screen

” on

page 33).

CAUTION: Review the reset modes carefully. Using the wrong reset mode may result

in unintended loss of flash memory programming, port reassignment, or
scaler reboot. The

table on the next page

provides a summary of the reset

modes.

NOTES:

The reset modes listed in the table on the next page close all open IP and

Telnet connections and all sockets.

Each mode is a separate function, not a continuation from mode 1 to mode 5.

There is no reset mode 2 for the DVS 510 Series.
