Setup Guide — CSVEQ 100 D
This guide provides basic instructions for an
experienced installer to set up and operate the
Extron® CSVEQ 100 D Line Driver.
C Installation and service must be performed
by authorized personnel only.
Step 1 — Turn off the line driver and
input/output devices
Turn the input and output devices off and unplug
their power cords. Verify that the line driver
is disconnected from the power source before
proceeding.
Step 2 — Attach video output cables
• Connect a composite video output device to the
green cable (
g
).
• Connect the luma of an S-video output device to
the white cable (
g
).
• Connect the chroma of an S-video output device
to the yellow cable (
g
).
Step 3 — Attach video input cables
• Connect a composite video input source to the
RCA video input connector (
b
).
• Connect an S-video input source to this 4-pin
mini DIN connector (
c
).
Step 4 — Connect audio input/output
• For audio output, wire a balanced or
unbalanced audio output device to the
3.5 mm, 5-pole, direct insertion captive
screw connector (
i
). See figure 3 for
information on how to wire the audio
output connector.
• For audio input, connect an unbalanced
stereo audio source to the left and right
RCA connectors (
d
). Wire the connector
as shown in figure 2.
N The audio output
wiring and the audio
output jumper (
f
)
setting must match.
For best results,
wire the output for
balanced audio.

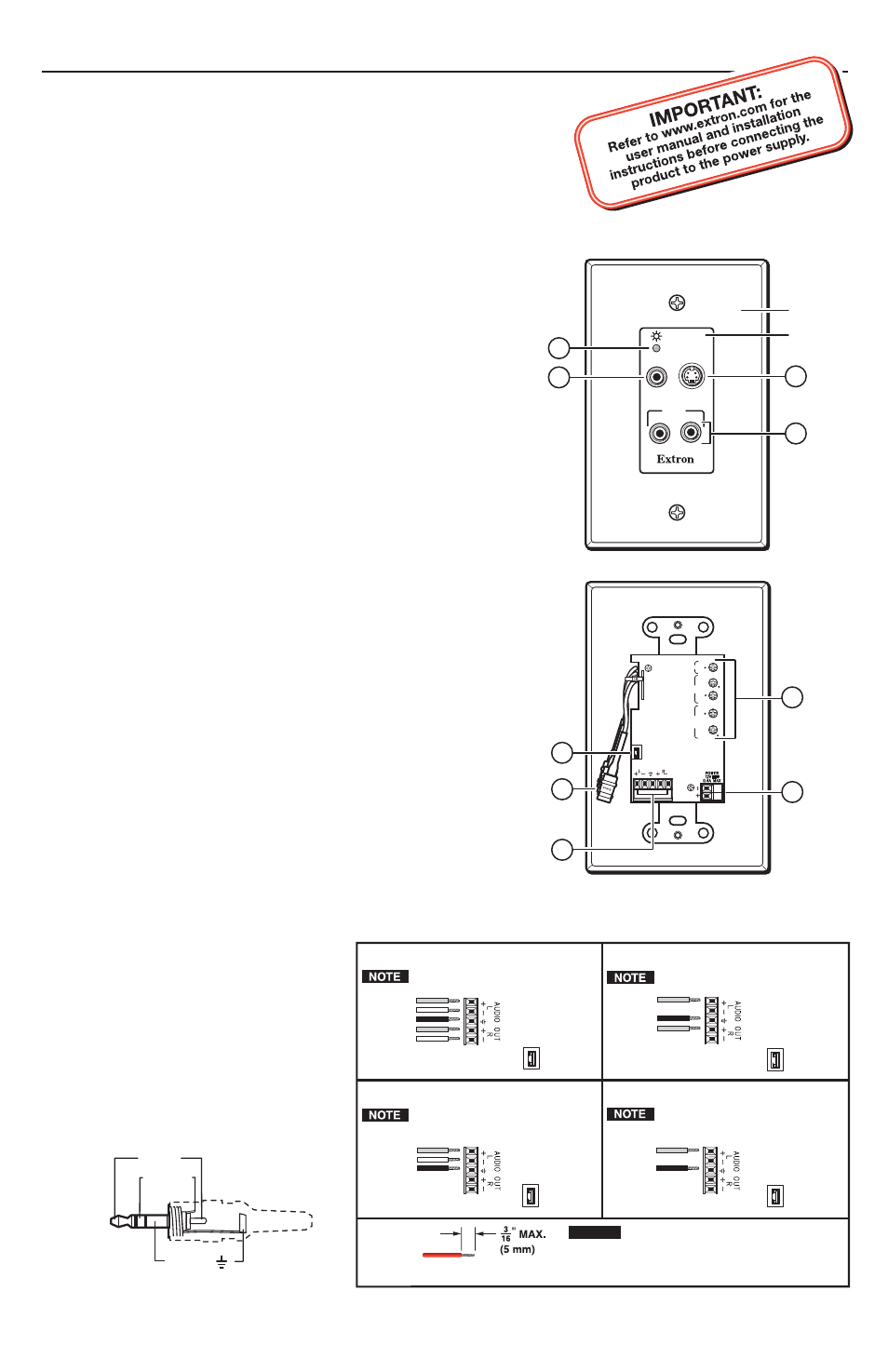

Figure 1 – Front and rear panel view
VIDE
O
AUDIO OUTPUT
JUMPER POSITION
OFF = DUAL MONO
ON = STEREO
AUDIO
OUTPUT
CONFIG
CSVEQ 100 D
VIDE
O
OUTPU
T Y
C
GAIN
GAIN
GAIN
EQ
EQ
S-video
Input
Audio
Input
Rear panel
VIDEO IN
S-VIDEO
IN
L R
AUDIO IN
1
2
Front panel
3
4
Faceplate
Wall Plate
7
6
8
5
Power
LED
RCA
Video
Input
Power
Connector
Equalization
and Gain
Controls
Audio
Output
Audio
Output
Jumper
Video
Output
9
Sleeve ( )
Ring (R)
Tip (L)
Balanced Stereo
Sleeve (s)
Left Tip (+)
Left Ring (-)
Right Tip (+)
Right Ring (-)
Set audio output jumper to stereo.
Balanced Mono
Sleeve
Tip (+)
Ring (-)
Unbalanced Stereo
Sleeve
Left Tip (+)
Right Tip (+)
Use either the left or the right channel.
Unbalanced Mono
Sleeve
Tip (+)
Use either the left or the right channel.
Set audio output jumper to dual mono. Set audio output jumper to dual mono.
Set audio output jumper to stereo.
Do not tin the wires!
CAUTION Connect the sleeve to ground
(Gnd). Connecting the sleeve to
a negative (–) terminal will
damage the audio output
circuits.
JUMPER POSITION
OFF = DUAL MONO
ON = STEREO
AUDIO
OUTPUT
CONFIG
JUMPER POSITION
OFF = DUAL MONO
ON = STEREO
AUDIO
OUTPUT
CONFIG
JUMPER POSITION
OFF = DUAL MONO
ON = STEREO
AUDIO
OUTPUT
CONFIG
JUMPER POSITION
OFF = DUAL MONO
ON = STEREO
AUDIO
OUTPUT
CONFIG
Figure 2 – Audio input
wiring Figure 3 – Audio output wiring
