DVS 510 Series • HTML Configuration and Control 99
User Control Page
The User Control page simulates elements of the DVS 510 front panel and also includes
other features such as picture control, mute and freeze options, Auto-Image, film mode
detection, aspect ratio selection, and front panel lockout (executive mode).

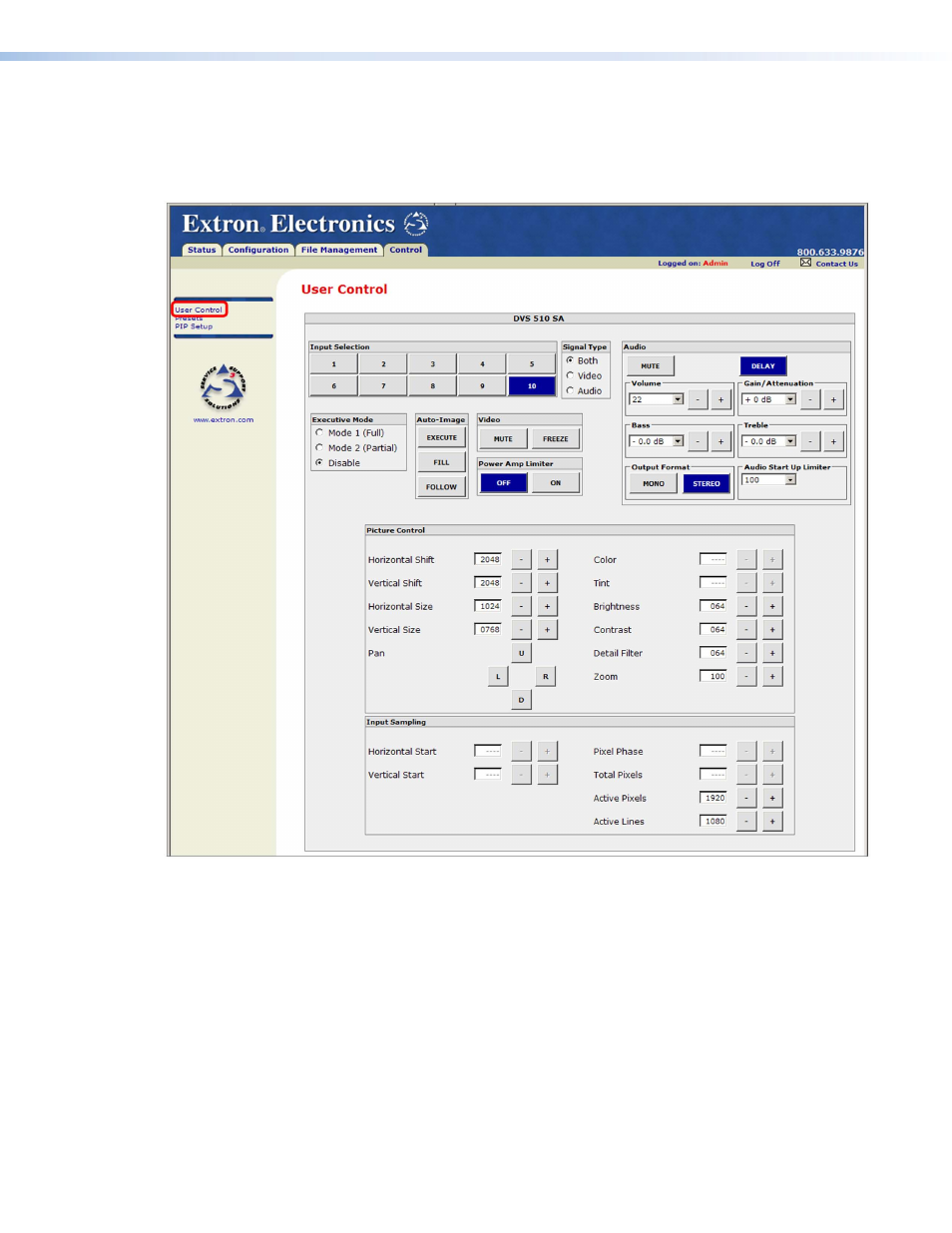

Figure 49. User Control Page
On the User Control page, you can perform the following functions:
Selecting an input and signal type
Before selecting an input, you must select video, audio, or both for output. To select an
input:
1. In the Signal Type section, select the radio button for the type of signal you will be
sending to the output:
• Both : Both audio and video will come from the same input (default).
• Video : Only the video signal will come from the new input.
• Audio : Only the audio signal will come from the new input.
