DVS 510 Series • Operation

21

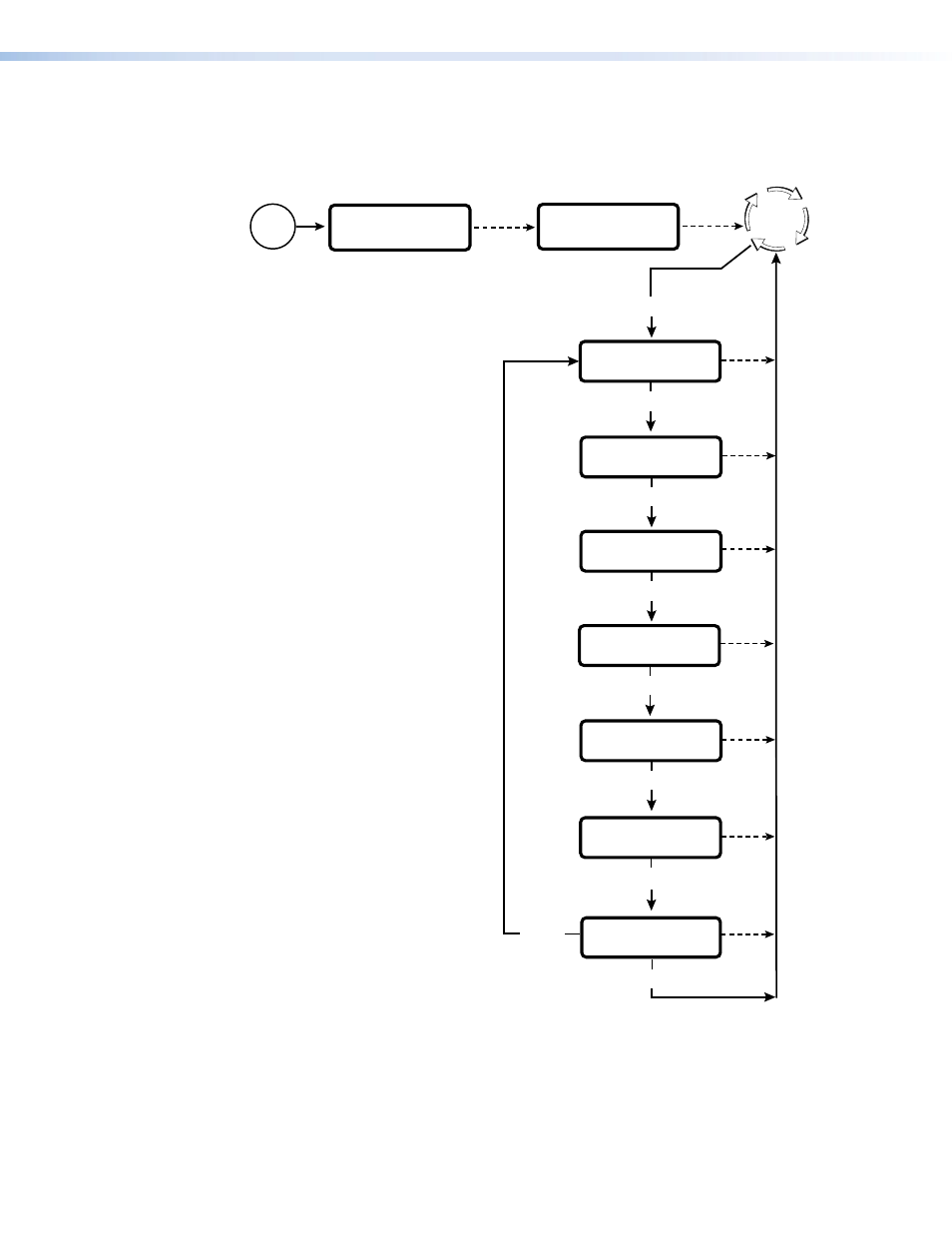

Menu flow diagram

The flow diagram below shows the menus that are displayed in the front panel LCD window
and the order in which they appear when you repeatedly press the Menu button.

Power

On

Input

Configuration

2 sec.

Menu

Menu

Menu

30 sec.

View

Comm Setting

Menu

30 sec.

30 sec.

Default

Cycle

2 sec.

Menu

Next

Exit Menu?
Press NEXT

Menu

30 sec.

User

Presets

30 sec.

30 sec.

Menu

Extron

DVS 510 V1.00

Initializing

Please Wait...

Audio

Configuration

Menu

30 sec.

Advanced

Configuration

Output

Configuration

Figure 13.

Main Menu

The following sections describe the submenu options for each of the menus.
