ZyWALL 10~100 Series Internet Security Gateway
Hardware Specifications G

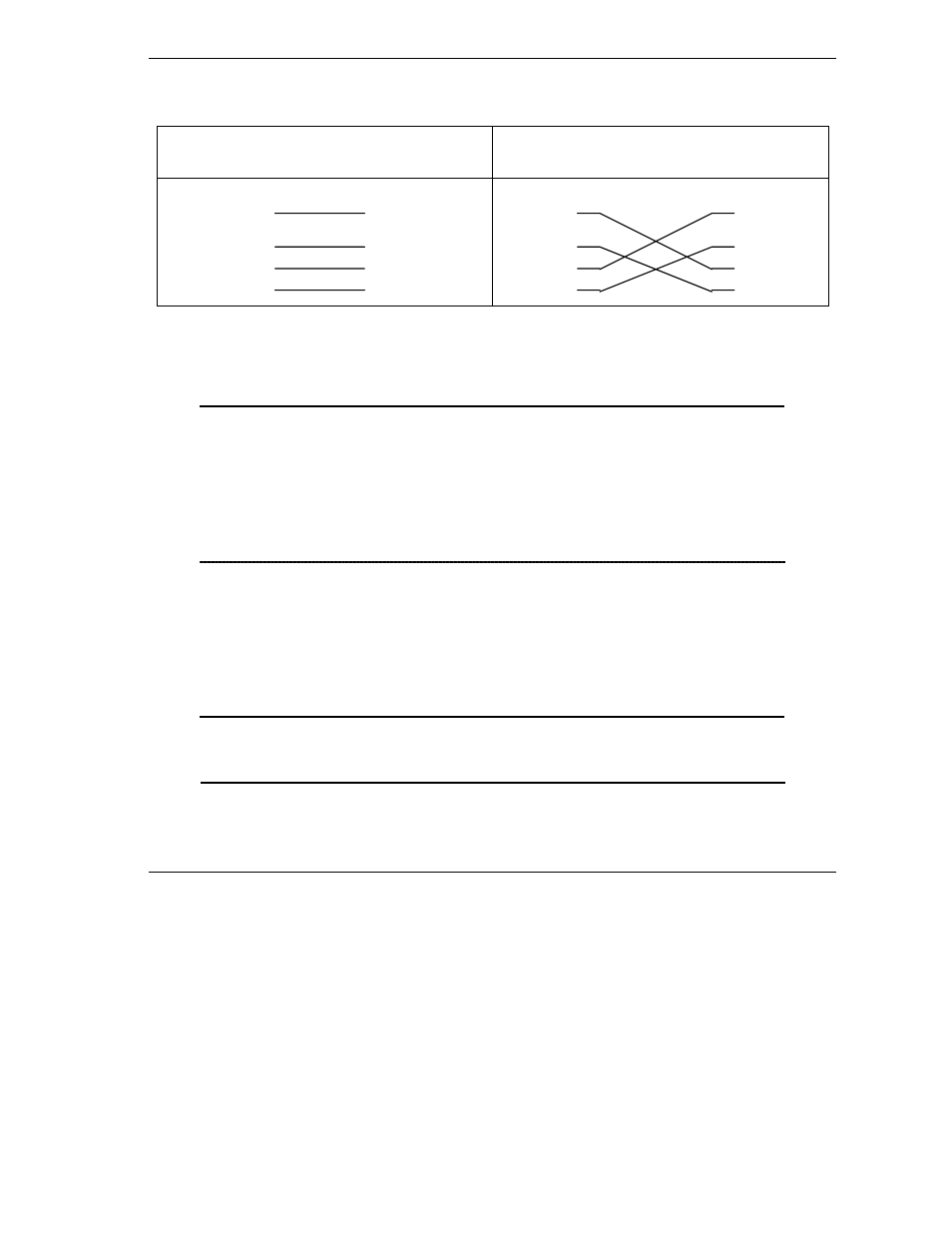

Chart 10 Ethernet Cable Pin Assignments
WAN/LAN/DMZ Ethernet Cable Pin Layout:
Straight-Through Crossover
(Switch)
1 IRD +
(Adapter)
1 OTD +
(Switch)
1 IRD +
(Switch)
1 IRD +
2 IRD - 2 OTD - 2 IRD - 2 IRD -
3 OTD + 3 IRD + 3 OTD + 3 OTD +
6 OTD - 6 IRD - 6 OTD - 6 OTD -
Power Adaptor Specifications (ZyWALL 10/10W/30W/50)
Chart 11 North American AC Power Adaptor Specifications
AC Power Adapter model AD48-1201200DUY
Input power: AC120Volts/60Hz/0.25A
Output power: DC12Volts/1.2A
Power consumption: 10 W
Plug: North American standards
Safety standards: UL, CUL (UL 1950, CSA C22.2 No.234-M90)
AC Power Adapter model AD48-1201200DUY
Input power: AC120Volts/60Hz
Output power: DC12Volts/1.2A
Power consumption: 9 W
Plug: North American standards
Safety standards: UL, CUL (UL1950, CSA C22.2 NO. 234-M90)
Chart -12 European Union AC Power Adaptor Specifications
AC Power Adapter model AD-1201200DV
Input power: AC230Volts/50Hz/0.2A
