ZyWALL 10~100 Series Internet Security Gateway
Bandwidth Management Screens
18-3

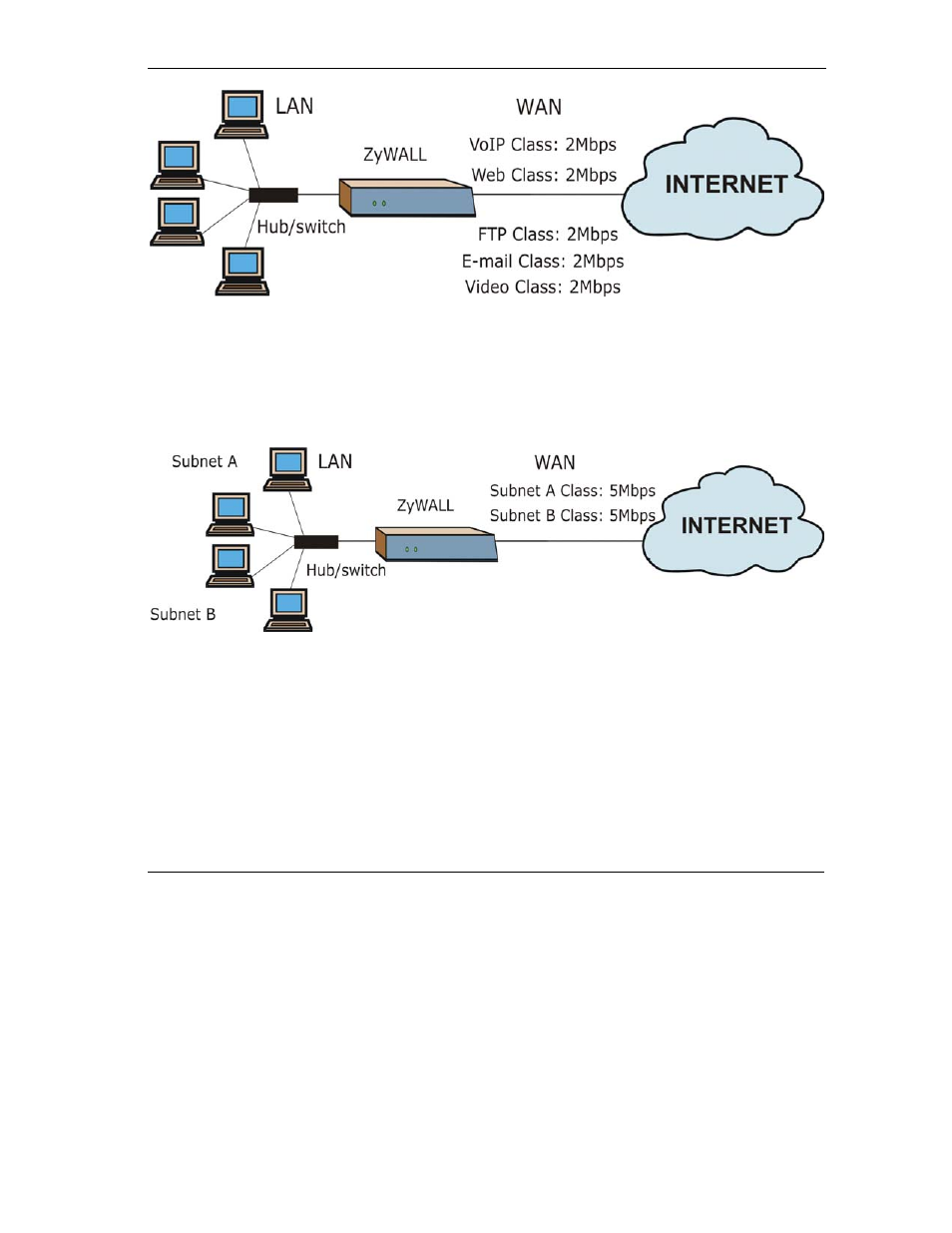

Figure 18-1 Application-based Bandwidth Management Example
18.4.2 Subnet-based Bandwidth Management Example
The following example uses bandwidth classes based solely on LAN subnets. Each bandwidth class (Subnet
A and Subnet B) is allotted 5 Mbps.
Figure 18-2 Subnet-based Bandwidth Management Example
18.4.3 Application and Subnet-based Bandwidth Management Example
The following example uses bandwidth classes based on LAN subnets and applications (specific
applications in each subnet are allotted bandwidth).
