ZyWALL 10~100 Series Internet Security Gateway
19-10 Log Screens
19.3.2 Viewing Protocol/Port
In the Reports screen, select Protocol/Port from the Report Type drop-down list box to have the
ZyWALL record and display which protocols or service ports have been used the most and the amount of
traffic for the most used protocols or service ports.

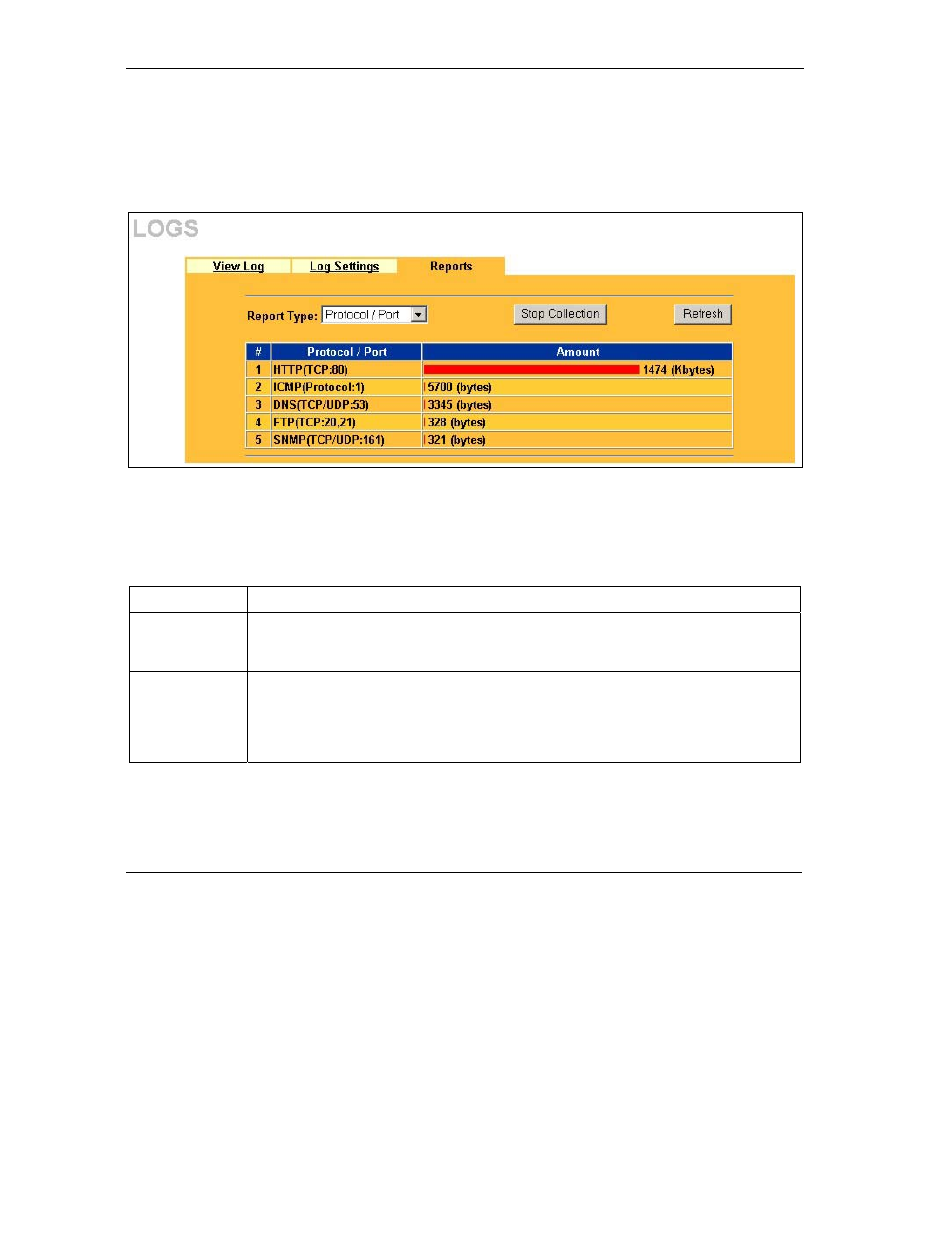

Figure 19-5 Protocol/Port Report Example
The following table describes the fields in this screen.
Table 19-5 Protocol/ Port Report
LABEL DESCRIPTION
Protocol/Port This column lists the protocols or service ports for which the most traffic has gone
through the ZyWALL. The protocols or service ports are listed in descending order
with the most used protocol or service port listed first.
Amount This column lists how much traffic has been sent and/or received for each protocol or
service port. The measurement unit shown (bytes, Kbytes, Mbytes or Gbytes) varies
with the amount of traffic for the particular protocol or service port. The count starts
over at 0 if a protocol or port passes the bytes count limit (see Table 19-7 Report
Specifications).
